Valor VP300 Pro PIN Pad

Simplify payment transactions, expedite the payment process, and optimize the overall customer experience with VP300 Pro.

All-In-One Digital Payment Solutions

The VP300 Pro PIN Pad is designed for today’s dynamic business environments and delivers secure, efficient, and flexible cashless solutions across various operations. It also enables faster checkout and higher accuracy by supporting multiple payment methods, including EMV, contactless, and digital.

Plus, it is equipped with a touchscreen interface and multiple security certifications to enhance user experience and streamline day-to-day operations across their business establishments.

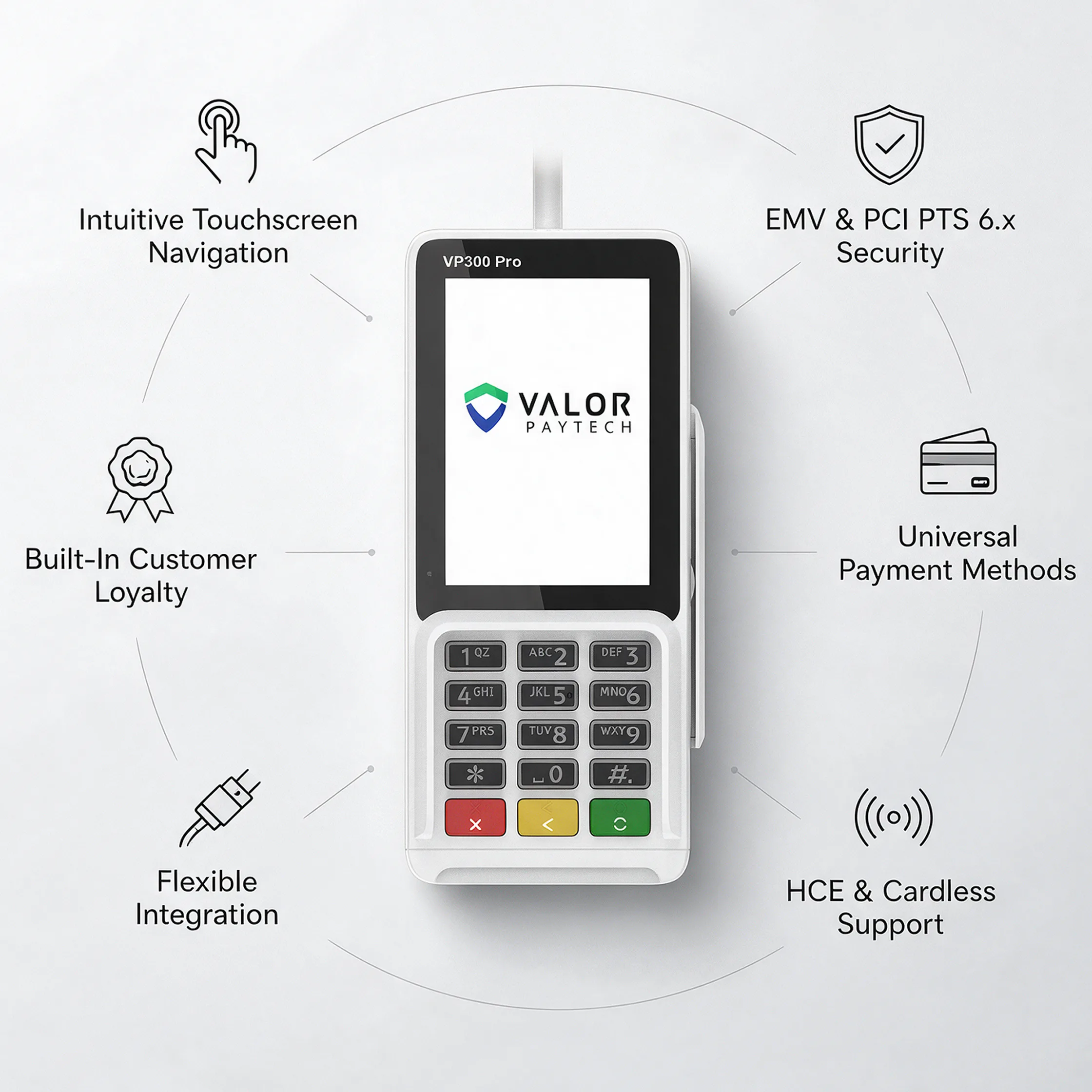

Innovative Payment Solutions for Any Business

Touchscreen Display: A touchscreen display makes it easy to navigate and conduct transactions.
EMV PCI PTS 6.x Certified PIN Pad: Ensures industry-standard security for all card and contactless payments.
User-Friendly and Intuitive Experience: Customers can complete any transaction with minimal hassle and a better checkout experience.
HCE Support: VP300 enables secure, cardless transactions and offers value-added services, including loyalty programs and digital receipts.
Easy Integration Option: The flexible USB ports enable easy connection to a range of retail setups, from boutiques to large stores.
Secure and Convenient Contactless Payments: Supporting magnetic stripe, EMV chip, and contactless cards for the convenience of multiple payment methods.
Customer Loyalty: Fosters customer loyalty through customized offers, loyalty points, and a more engaging shopping experience.
Works for Any Business: In any environment, it enables businesses to pay efficiently and securely.

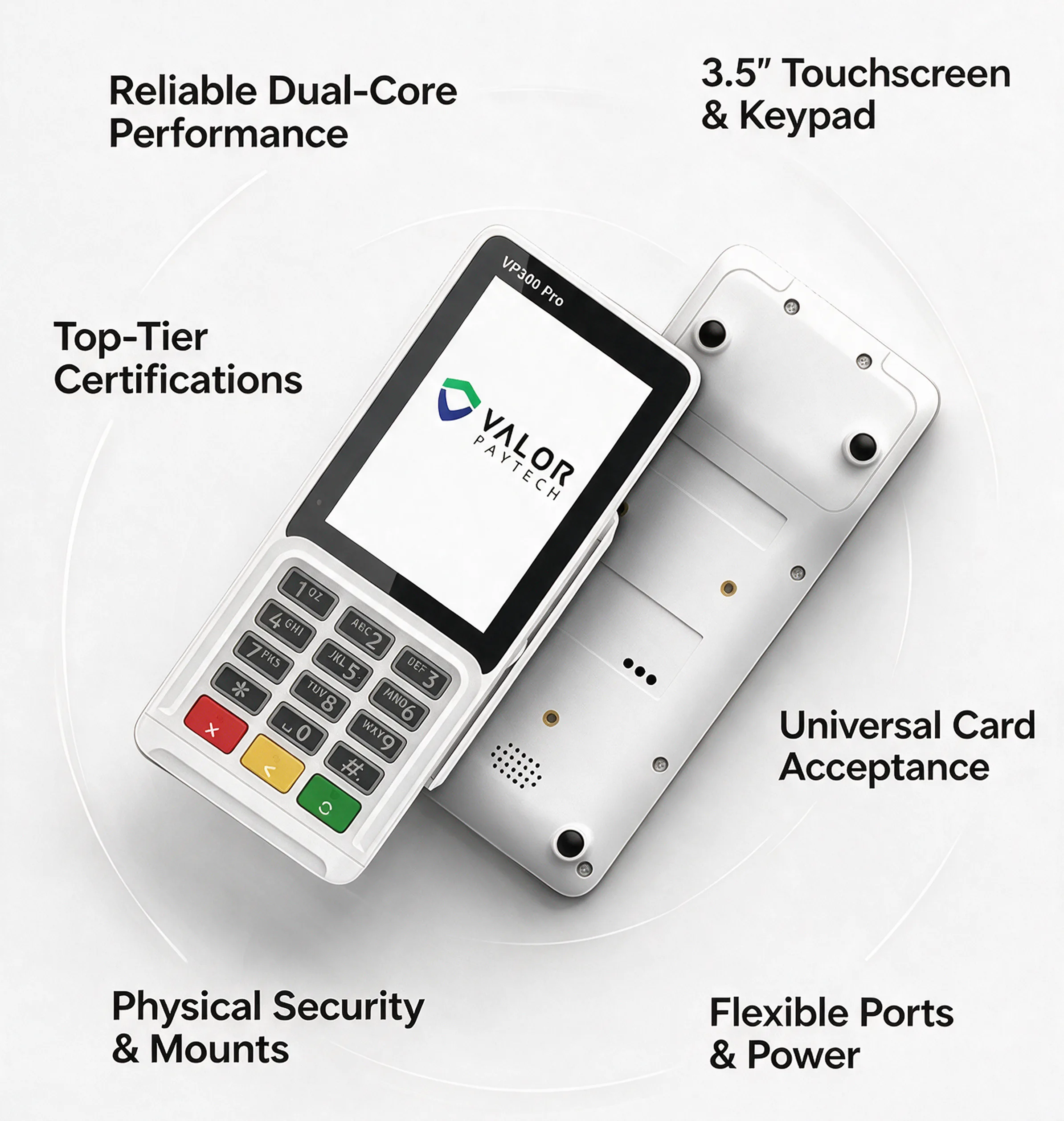

VP 300 Pros Specifications

Dual-core Cortex A7 CPU at 1 GHz, with 256MB RAM and 256MB Flash for fast, reliable performance.
3.5-inch color TFT LCD with capacitive touchscreen, 320 x 480 resolution, and electronic signature capture support.
Triple-track, bi-directional magnetic stripe reader; EMV L1/L2 smart card support (ISO 7816, 1.8V/3V/5V); EMV Contactless L1 supporting ISO 14443 Type A/B, Mifare, Felica, and HCE.
1.5W speaker, 10 x numeric keys, 5 x function keys, backlit for easy input in any lighting conditions.
Input AC 100–240V, output DC 5V/2A; RS232 serial and USB device connections for versatile integration.
163mm × 74mm × 31mm (without privacy shield), 163mm × 74mm × 46mm (with privacy shield); weighs 252g.

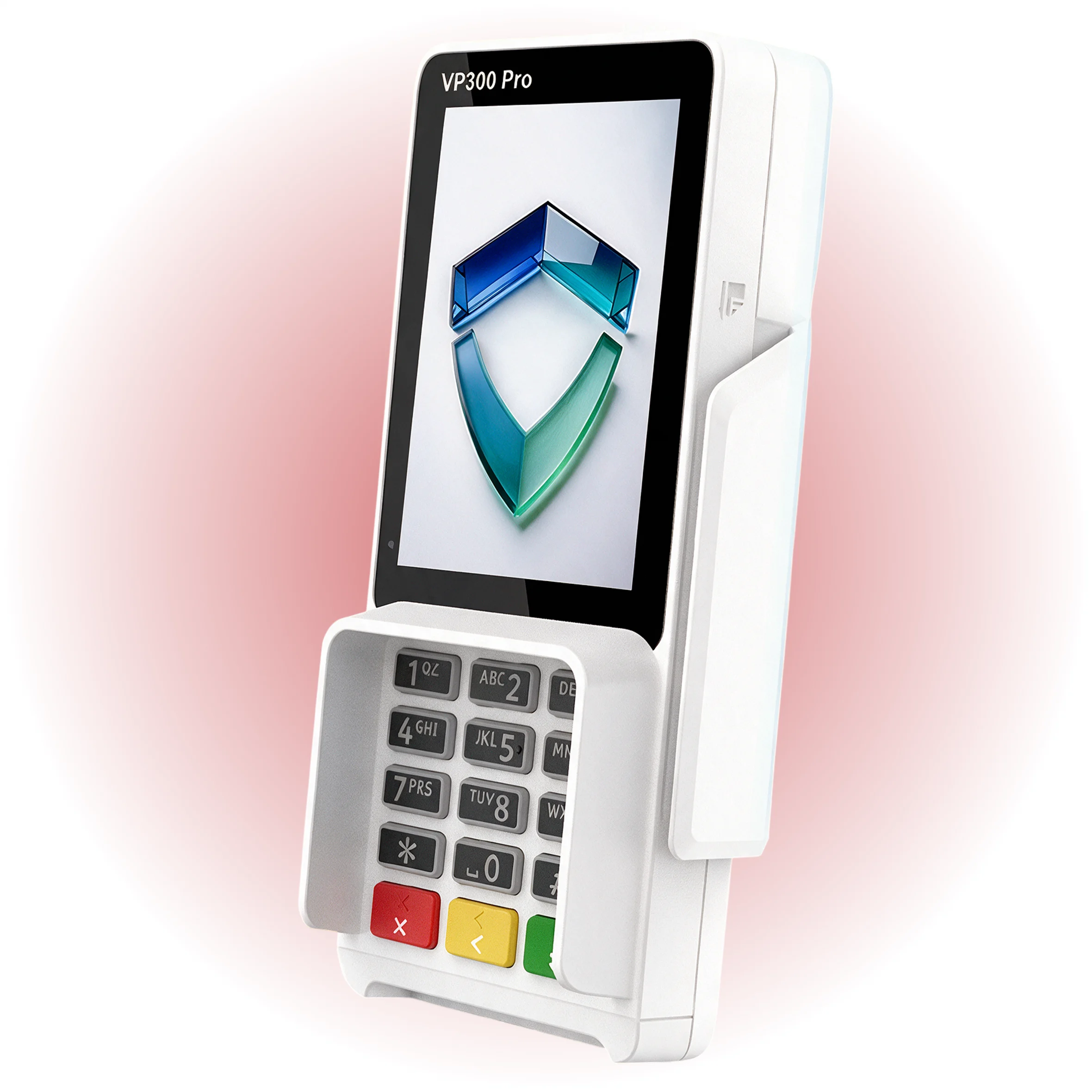

Includes Kensington lock, privacy shield, and rotatable mount for secure and flexible setup.
PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, AMEX, Discover, JCB, UPTS 3.0, CE, FCC, RoHS, ANATEL, ABECS.
Operating temperature 10°–50°C, storage -20°–70°C, relative humidity 5%–95%.

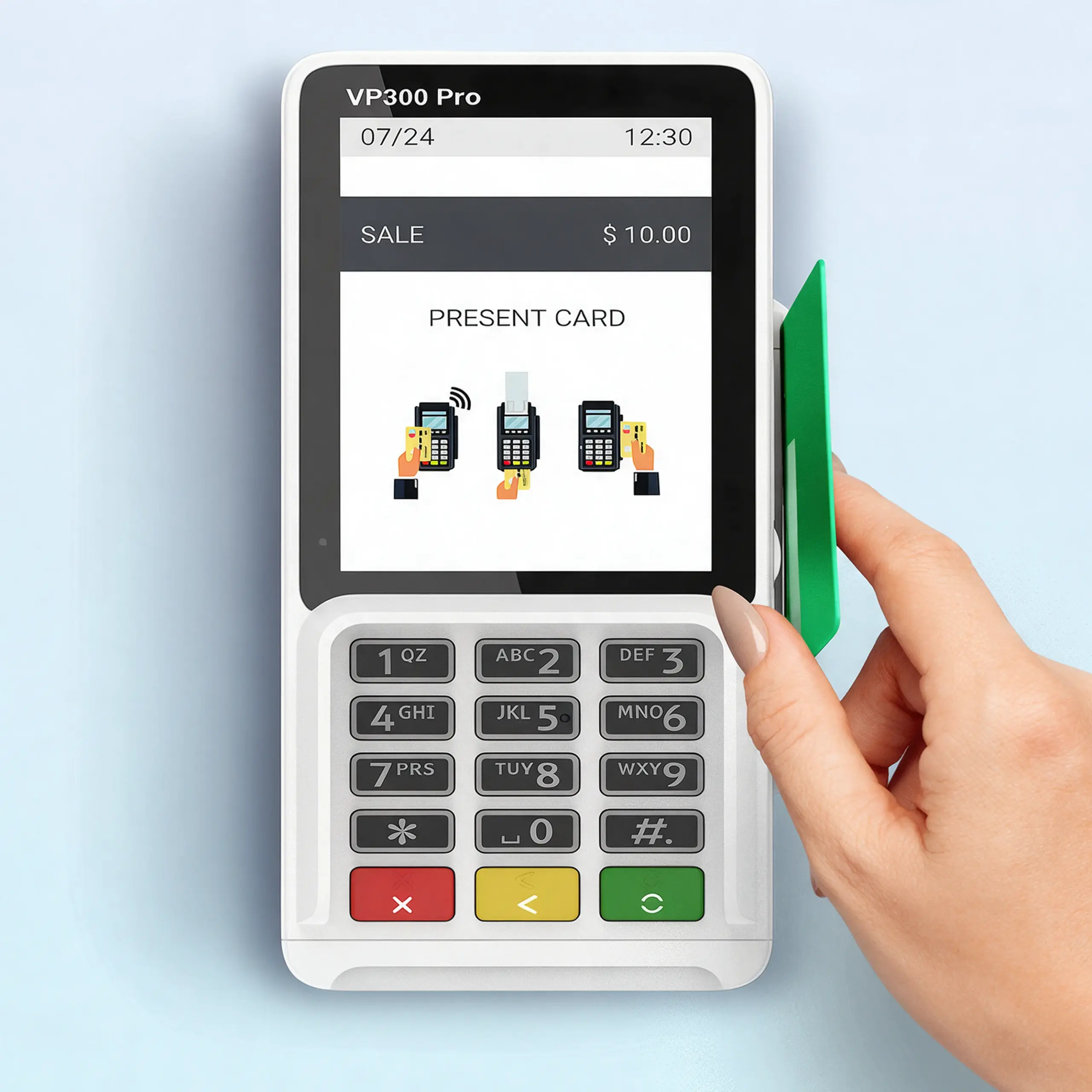

Quick and Easy Transactions With VP300 Pro

Enter the sale amount and press OK/Enter.
On the Present Card screen, the customer taps/inserts/swipes.
For manual entry (if enabled), select Enter Manually or begin typing the card number.
If prompted, complete tip and signature on the touchscreen.
Select receipt delivery method (options depend on setup—e.g., print and/or digital).

Fast and Secure Debit Checkout

From the sale screen, tap Credit until Debit is displayed.
Enter the amount and press OK/Enter.
Customer taps/inserts/swipes on the Present Card screen.
Enter PIN (and tip if enabled) when prompted.
Choose receipt delivery (varies by configuration).

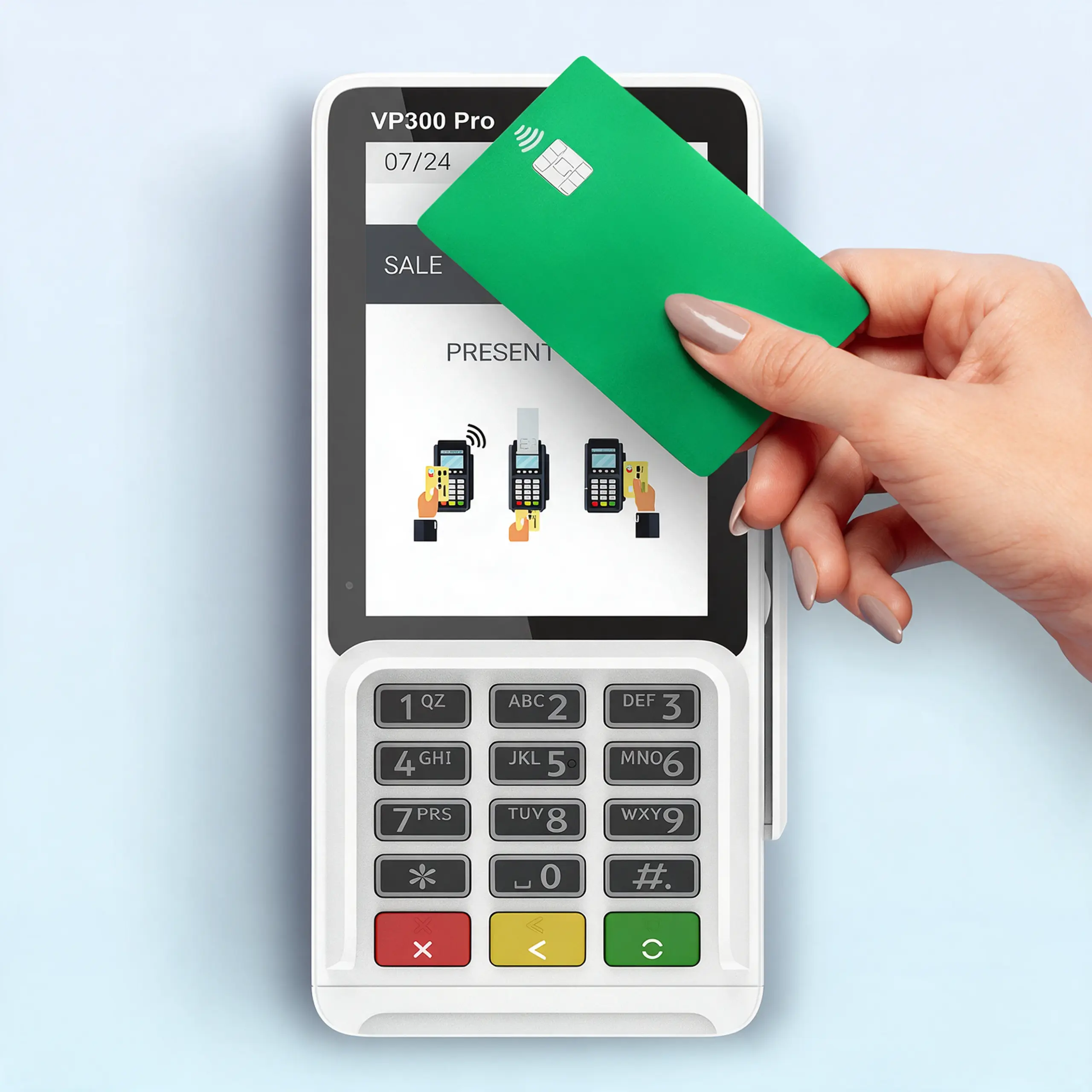

Quick Void Transactions Made Easy

Tap Sale until Void is displayed.
Press OK/Enter, then enter the password if prompted.
Choose lookup by Transaction Number or Card Number.
Enter the transaction number (or last 4 digits of the card), then select the transaction shown.
Confirm the void and select the receipt method.

Smooth Refund Processing, Every Time

Tap Sale until Void is displayed.
Enter the refund amount and press OK/Enter.
Enter the password if prompted.
Customer taps/inserts/swipes (or uses manual entry if enabled).
Select the receipt delivery method (based on your setup).

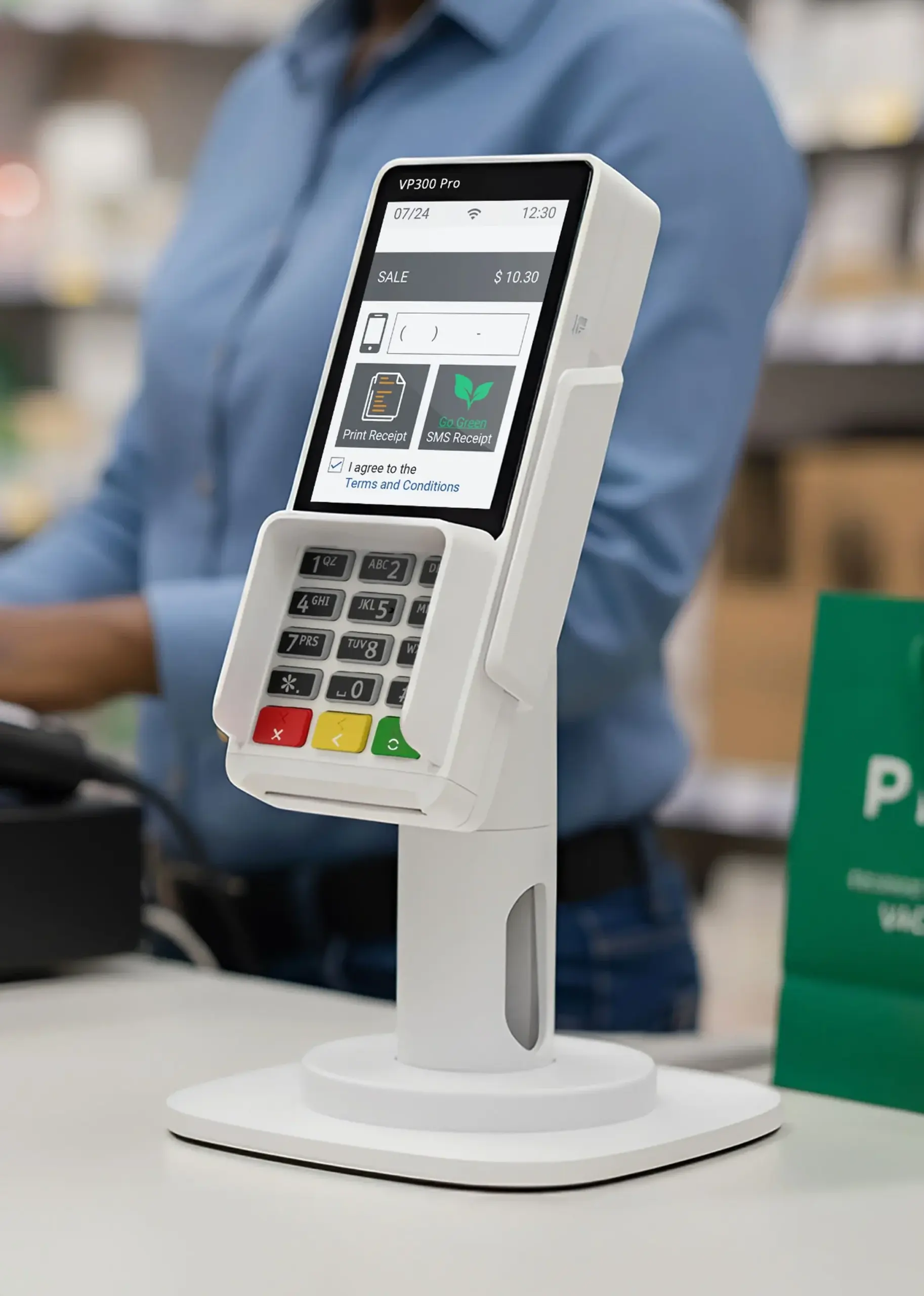

Want to Go Ahead with the VP300 Pro? Contact Us!

Complete the form below to get your hands on the VP300 Pro. Our sales team representative will walk you through the device specifications and pricing options so you can start accepting payments at your store right away.

"*" indicates required fields

Company

This field is for validation purposes and should be left unchanged.

Name*

This field is hidden when viewing the form

Lead Source*

Company*

Business Location*

Phone*

Email*

Do you currently take credit cards?

Yes

Estimated Monthly Volume

CAPTCHA

Frequently Asked Questions

What makes the VP300 Pro different from a standard PIN pad?

The VP300 Pro is built for high-volume, modern checkout environments, featuring a larger 3.5-inch touchscreen, higher processing power, and PCI PTS 6.x security, delivering faster interactions, richer on-screen prompts, and a more premium customer experience.

What payment methods can the VP300 Pro accept?

It supports EMV chip, contactless (tap-to-pay), and magnetic-stripe transactions, giving customers flexible ways to pay while helping businesses reduce checkout delays.

Does the VP300 Pro support digital wallets like Apple Pay and Google Pay?

Yes. Because it supports EMV contactless standards and major contactless programs (e.g., PayPass/payWave), it can accept tap-to-pay wallet transactions when enabled through your processor and configuration.

What is HCE support, and why does it matter?

Host Card Emulation (HCE) enables secure, cardless payment experiences and can support value-added features such as digital receipts and loyalty-driven checkout flows, depending on your payment setup.

Does the VP300 Pro support tipping for service-based businesses?

Yes. Tip prompts can be enabled to allow customers to add gratuity directly on-screen, helping increase tip capture while keeping the flow standardized.

How easy is it to integrate the VP300 Pro into an existing checkout setup?

The VP300 Pro offers versatile connectivity (USB and RS-232) and flexible USB port support, making it suitable for a wide range of retail and service environments, from single-lane counters to multi-register setups.

How do I get the VP300 Pro configured correctly for my business?

Host Merchant Services can recommend the best setup based on your checkout flow (debit PIN prompts, tips, digital receipts, loyalty needs, integrations) so you launch with the right configuration from day one.
