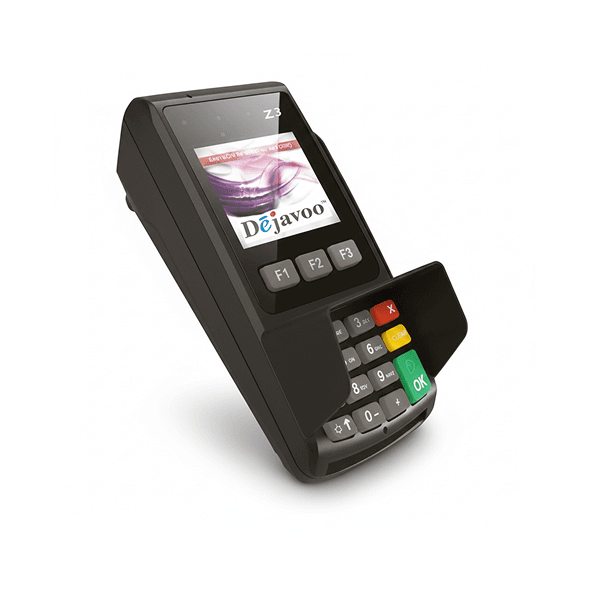

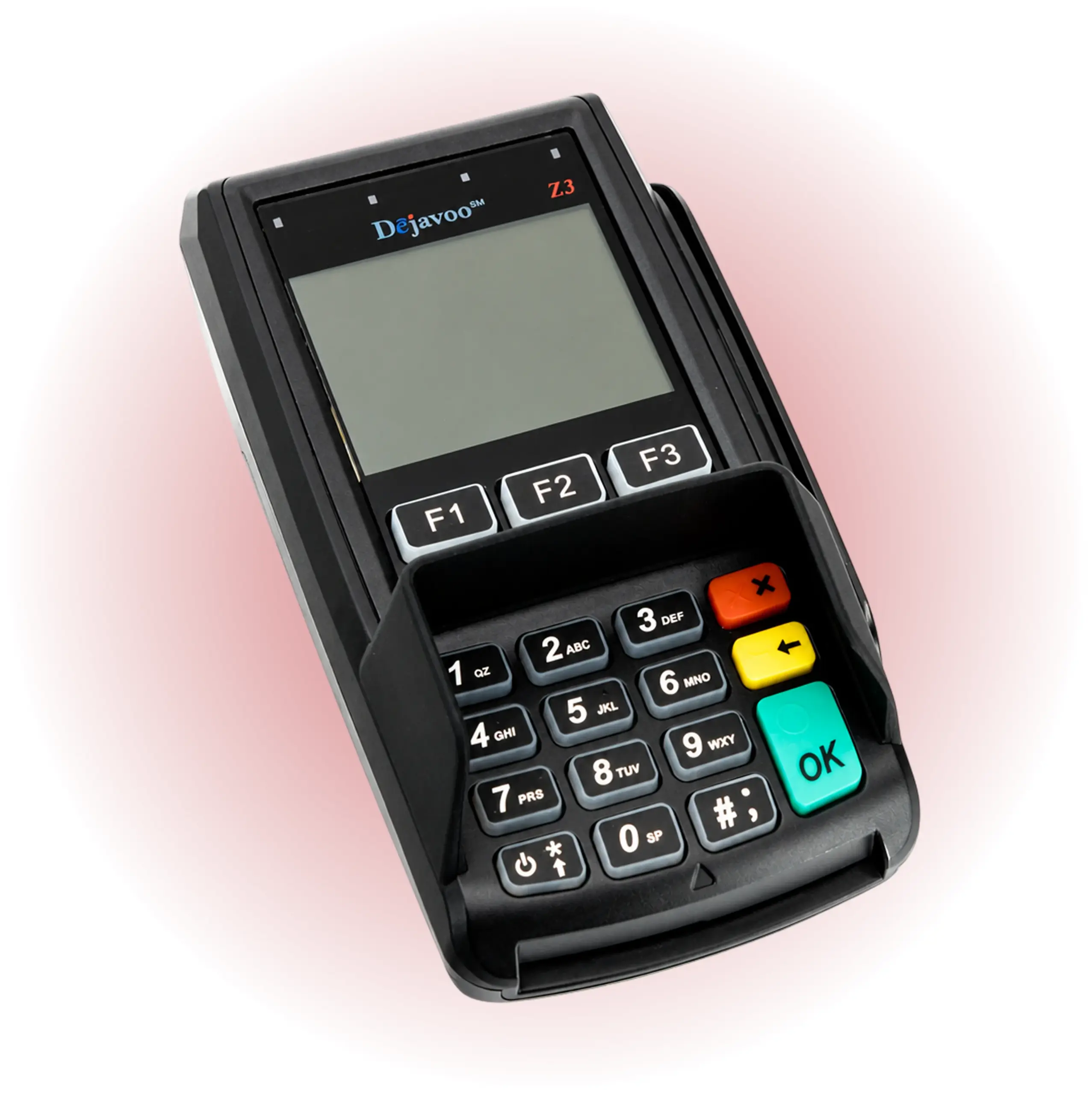

Dejavoo Z3 EMV NFC Contactless PIN Pad Terminal

Fast, secure payment terminal supporting swipe, chip, and contactless transactions for quick, reliable checkout in any business environment.
Get a Quote

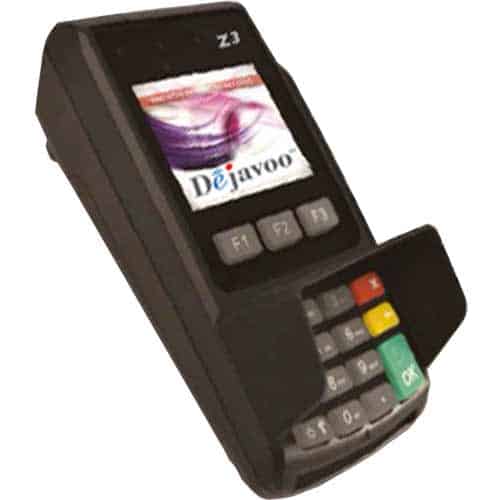

Dejavoo Z3 countertop payment terminal for secure chip, contactless, and swipe card payments

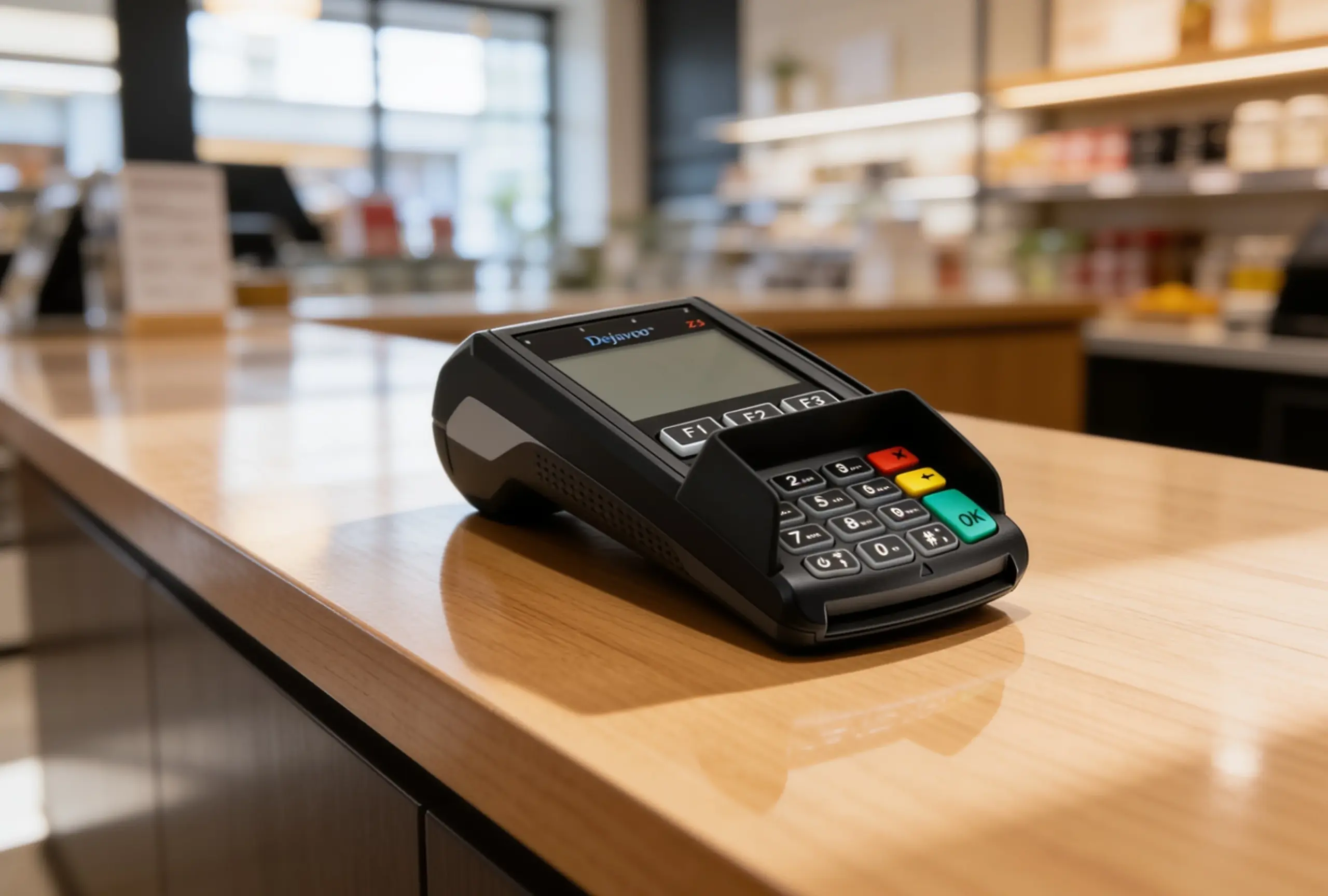

Dejavoo Z3 countertop payment terminal with color display, physical keypad, and secure payment connectivity

Reliable, Secure Payment Terminal Built for Daily Business Use

The Dejavoo Z3 is a secure, reliable payment device designed to support everyday business transactions with ease. It handles swipe, chip, and contactless payments, allowing businesses to process transactions efficiently.
Its clear on-screen prompts, responsive keypad, and intuitive layout make the device easy for employees to use. Built-in security features, support for SAM cards, and encrypted transaction processing help protect every payment.
The Dejavoo Z3 is suitable for a wide range of business environments and offers strong connectivity options to support consistent, dependable operation.

Top Features of Dejavoo Z3

Ethernet connectivity icon for Dejavoo Z3 countertop payment terminal
Take All the Payment Types
The Z3 is EMV-capable and includes a built-in NFC/contactless reader (for wallets like Apple Pay/Google Wallet, etc.).
Countertop payment terminal icon for Dejavoo Z3
Customer-Facing PIN Pad for Debit / PIN-Based Checkout
It’s positioned as a PIN pad payment device with a secure integral PIN pad, which is a common need for debit at the counter.
Full payment acceptance icon for Dejavoo Z3 payment terminal
Easy POS Integration
Easily integrate with POS via SPIn (Secure Payment Integration) tools, and can integrate with ISO, Android, and PC POS systems.
Simple checkout experience icon for Dejavoo Z3 payment terminal
Simple, Reliable Wired Connectivity Options
Z3 supports Ethernet plus RS232 and USB, which merchants like for stability at a fixed checkout lane.
Built-in receipt printer icon for Dejavoo Z3 payment terminal
Security + Certification
EMV L1/L2 and PCI PTS v4 under certifications/specs for the platform, and ECS lists EMV 4.x L1/L2 and PCI PTS v3.x.
Everyday transaction processing icon for Dejavoo Z3 payment terminal
Compact, Purpose-Built Hardware
Includes a 2.4″ color LCD (320×240) and compact dimensions/weight (useful when counter space is tight).
Dejavoo Z3 countertop payment terminal showing hardware, connectivity, printer, and security specifications
Operational Conveniences
Up to 20 programmable “Favorites” hot keys and multiple application/multiple host platform support, helpful for merchants running multiple setups or wanting faster button-driven flows.

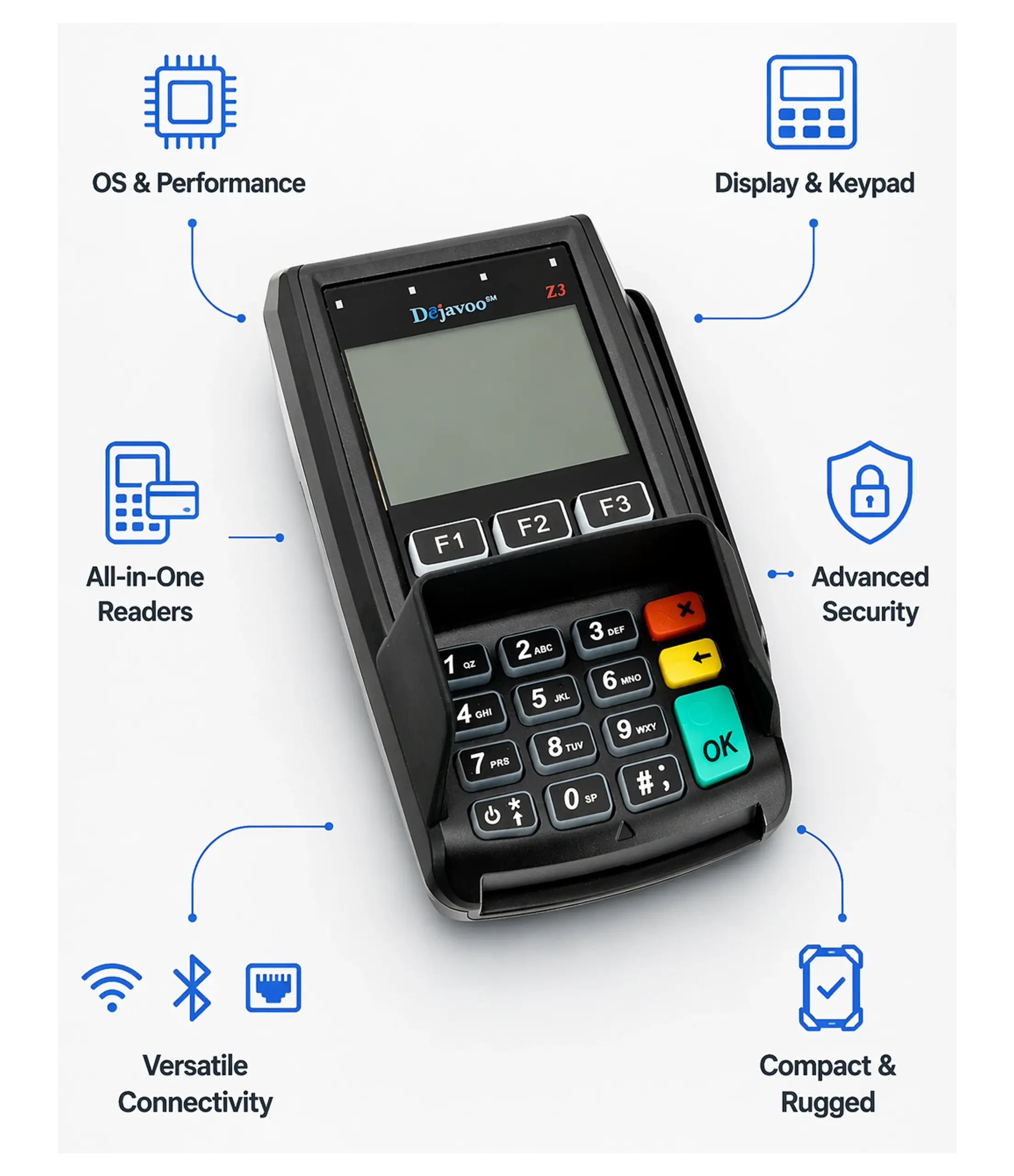

Specialities and Capabilities

  • High-performance 32-bit secure processor running at 400 MHz with a Linux-based open architecture operating system.
  • 128MB flash memory and 64MB DDR RAM, with optional MicroSD expansion support.
  • 2.4-inch color LCD display with 320 × 240 resolution, paired with a physical keypad featuring 15 standard keys, 3 function keys, and LED indicators.
  • Integrated magnetic stripe reader compliant with ISO 7810, 7811, and 7813, plus a smart card reader supporting ISO 7816 ID-1 cards.
  • Built-in NFC contactless reader supporting ISO 14443 Type A and B, ISO 18092 NFC, MIFARE, and Sony FeliCa at 13.56 MHz.
  • PCI PTS v3.x and EMV 4.x Level 1 and Level 2 certified, supporting advanced encryption standards including DES, Triple DES, AES, RSA, DUKPT, and TRNG.
  • Certified for major payment networks including Visa payWave, Mastercard PayPass, American Express, JCB J/Speedy, TQM, and PBOC standards.
  • Multiple connectivity options including Ethernet, RS232, and USB for flexible system integration.
  • Compact design measuring 5.7 × 3 × 2.2 inches and weighing approximately 0.62 lbs.
  • Designed for reliable operation in environments ranging from 32°F to 150°F, with storage support from -4°F to 158°F.
  • Meets key safety and compliance standards including CE, FCC, BSMI, and RoHS, with broad software support through SDK, KMS, TMS, and security libraries.
Dejavoo Z3 countertop payment terminal supporting credit card sales, refunds, voids, and transaction management

Keep the Checkout Moving with Quick and Easy Payments

Simple Chip Card Transaction
  • Power on the terminal and allow it to enter POS Online mode.
  • Insert the chip-enabled card into the terminal.
  • Press OK to confirm the sale amount shown on the screen.
  • The terminal connects to the host system for authorization.
  • Once approved, the transaction is completed.
Secure Swipe or Manually Keyed Transaction
  • Power on the terminal and allow it to enter POS Online mode.
  • Swipe the card through the reader or manually enter the card number when prompted.
  • Enter the sale amount and press OK to confirm.
  • If Address Verification Service (AVS) is requested, enter the required details.
  • The terminal communicates with the host system for authorization.
  • Once approved, the transaction is completed.
Seamless Debit (PIN-Based) Transaction
  • Power on the terminal and allow it to enter POS Online mode.
  • Insert the chip-enabled debit card into the terminal.
  • When prompted, select YES by pressing F2.
  • Enter the cardholder’s PIN using the keypad and press OK.
  • Confirm the sale amount by pressing OK.
  • If AVS information is requested, enter the required details.
  • The terminal connects to the host system for authorization.
  • Once authorized, the transaction is approved.
Dejavoo Z3 countertop payment terminal supporting secure PIN debit payments, refunds, and transaction voids

Handle Customer Returns Smoothly and Securely

  • Power on the terminal and allow it to enter POS Online mode.
  • If prompted, enter the Manager Password (default: 1234).
  • Insert the chip card into the terminal.
  • Enter the return amount and press OK to confirm.
  • When applicable, enter the PIN and press OK.
  • The terminal authorizes the return, and once approved, the transaction is completed.

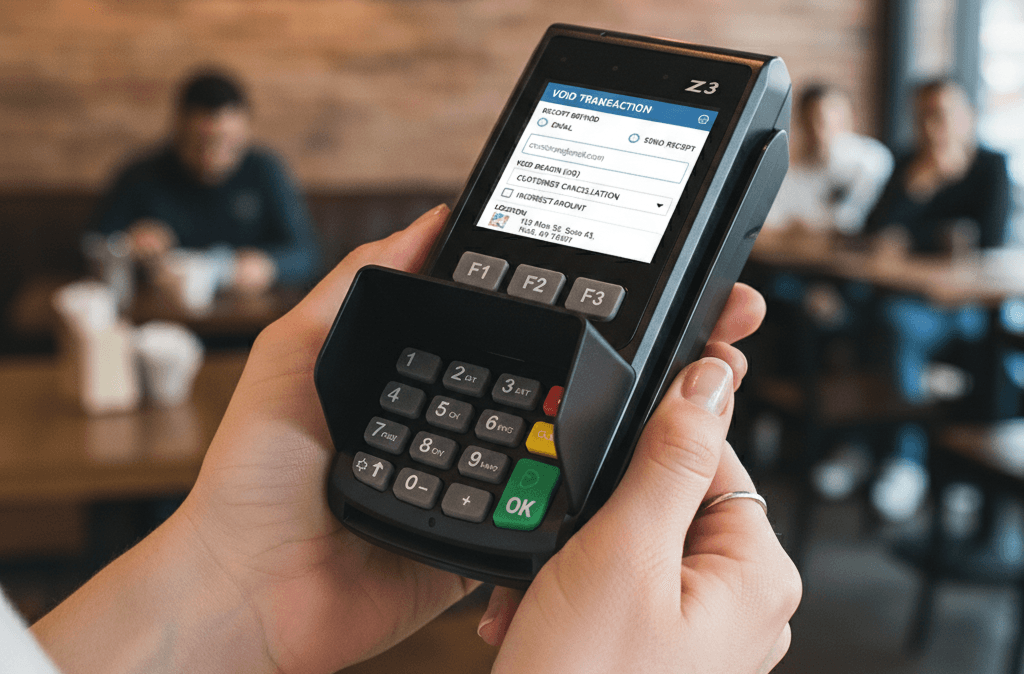

Complete Void Transactions with Confidence

  • Select Void Transactions from the menu.
  • The terminal switches to POS Online mode automatically.
  • If prompted, enter the Manager Password (default: 1234).
  • Proceed with the void transaction.
  • Print the receipt if prompted.

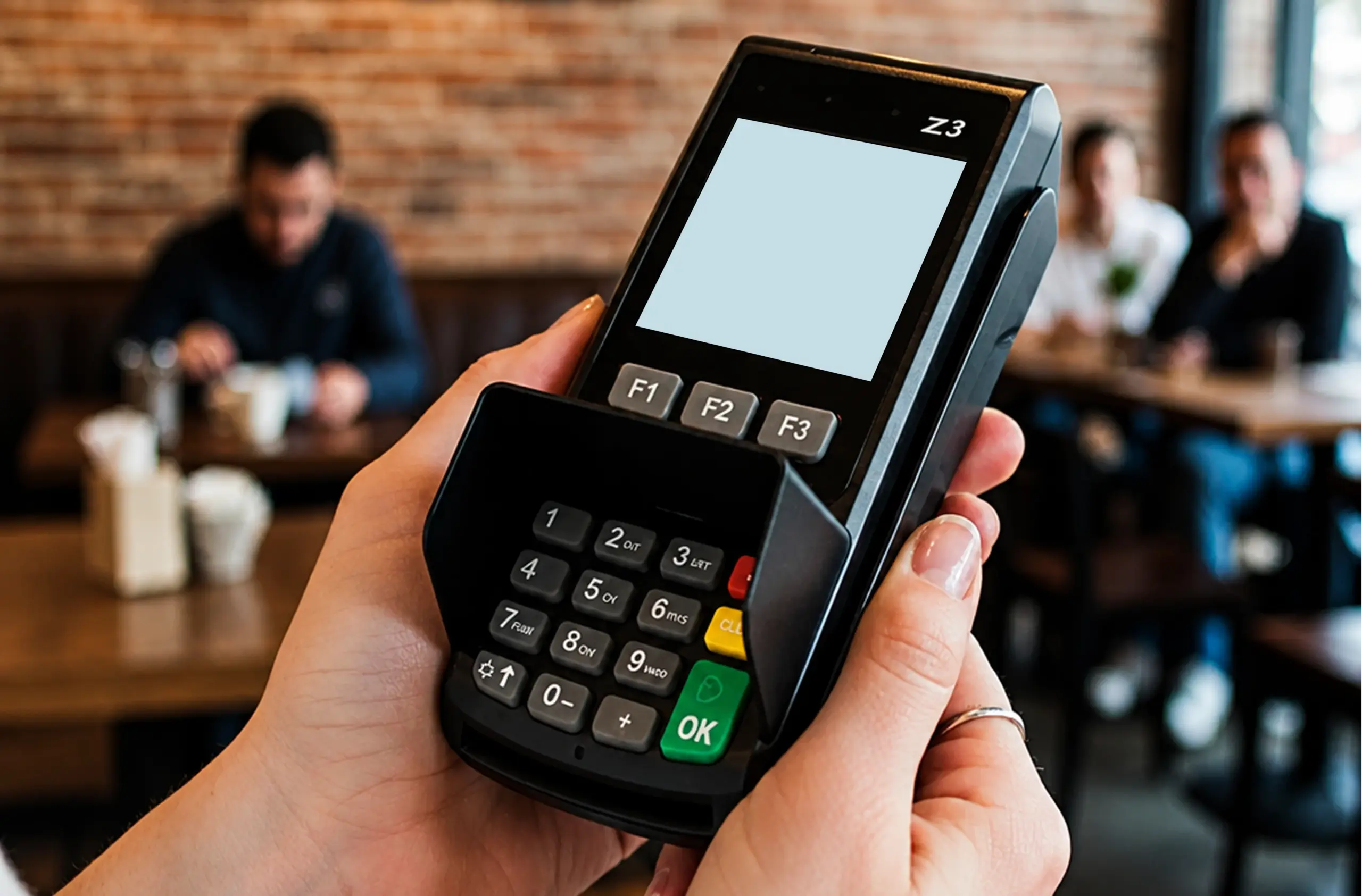

Dejavoo Z3 countertop payment terminal supporting secure pre-authorization and transaction completion
Customer support representative assisting with Dejavoo Z3 payment terminal questions

Settle Daily Batch Closing Effortlessly

  • From the POS Online screen, press F3.
  • Select Settle Daily Batch and press OK.
  • If prompted, enter the Manager Password (default: 1234).
  • Press OK to confirm.
  • The terminal processes the settlement, and once approved, the daily batch is closed successfully.
Download Data Sheet
Back To CC Machines

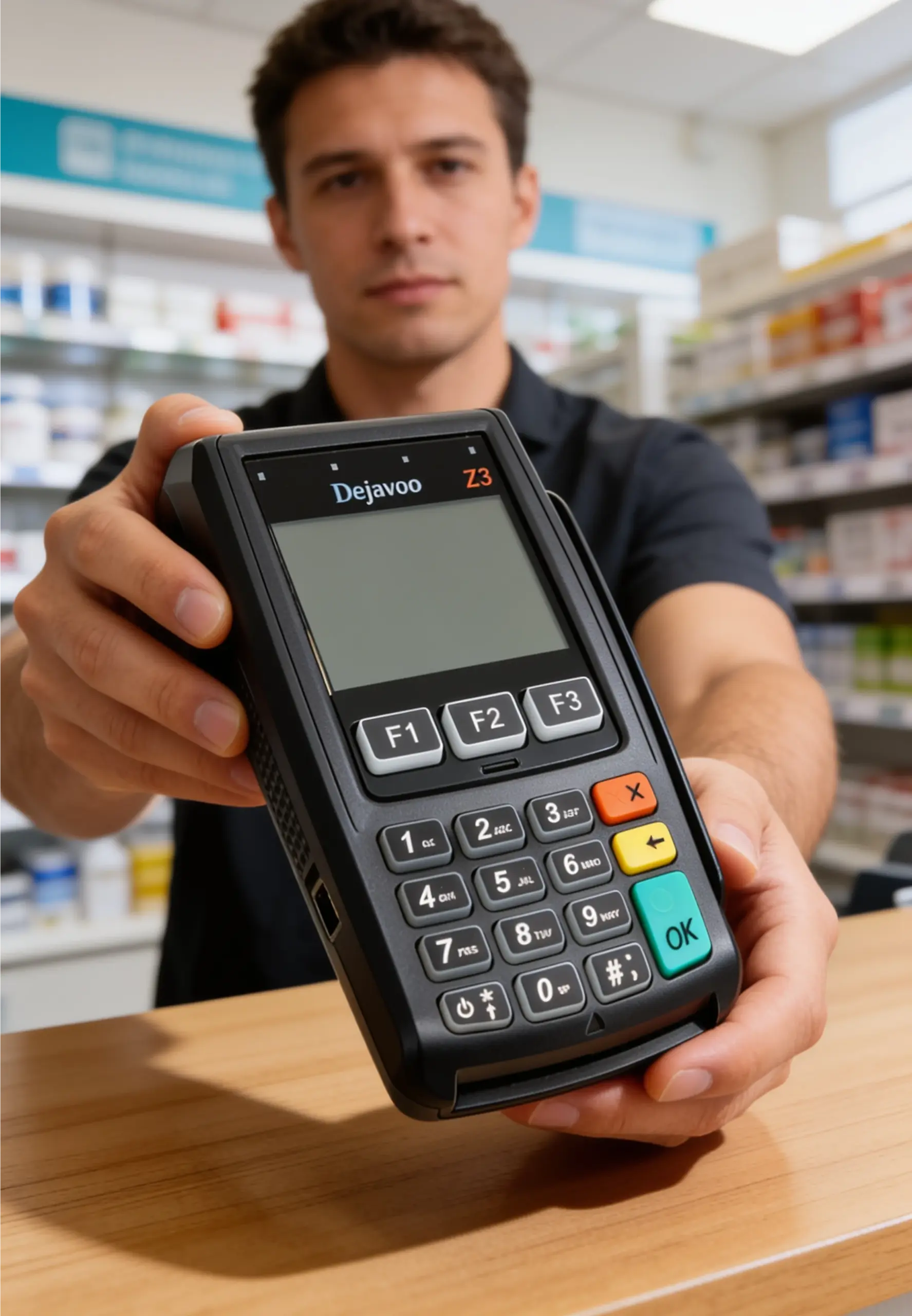

Dejavoo Z3 countertop payment terminal supporting secure in-person card payments

Upgrade Your Checkout with the Dejavoo Z3

Get a dependable payment terminal that supports swipe, chip, contactless, and PIN-based transactions with strong security and simple operation. Contact us today to order the Dejavoo Z3 or speak with a specialist about integrating it into your checkout setup.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
*
Do you currently take credit cards?

Frequently Asked Questions

Can the Z3 operate in different store environments?

Yes, it works reliably across a wide temperature range (32°F–150°F operating, -4°F–158°F storage), making it suitable for various retail conditions.

Is the Z3 easy for staff to use?

Absolutely. Its clear 2.4-inch color display, physical keypad, and intuitive prompts make it simple to operate, reducing training time.

Does the Z3 work with my existing POS system?

Yes, it supports Ethernet, USB, and RS232 connections for seamless integration with most POS software and hardware setups.

Is the Dejavoo Z3 secure for processing payments?

Yes, it is PCI PTS v3. x certified and EMV Level 1 & 2 compliant, with advanced encryption and SAM card support to protect every transaction.

What types of payments can the Dejavoo Z3 accept?

The Z3 supports swipe, EMV chip, and contactless payments, including NFC-enabled cards and mobile wallets.
