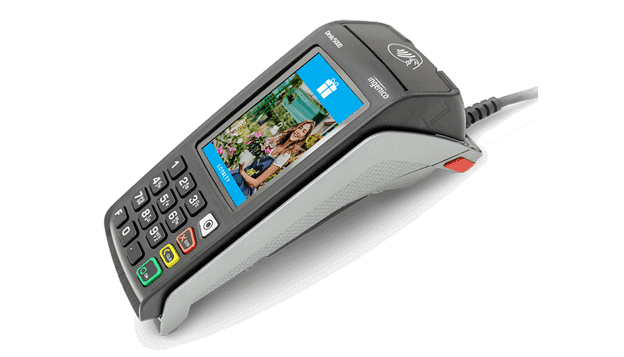

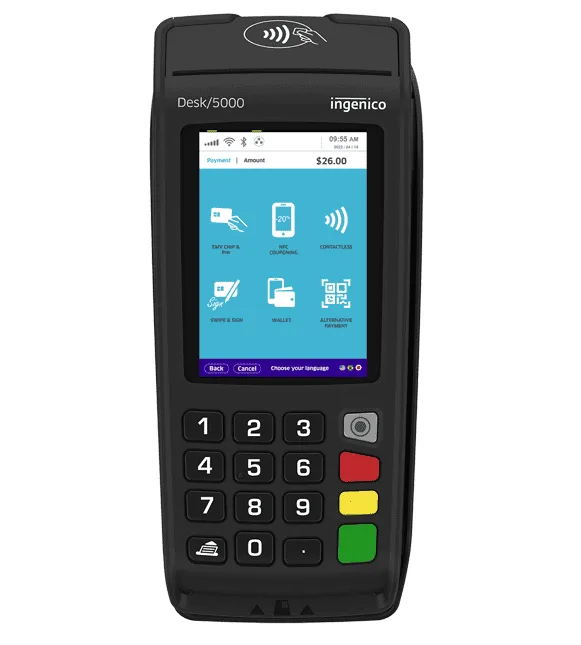

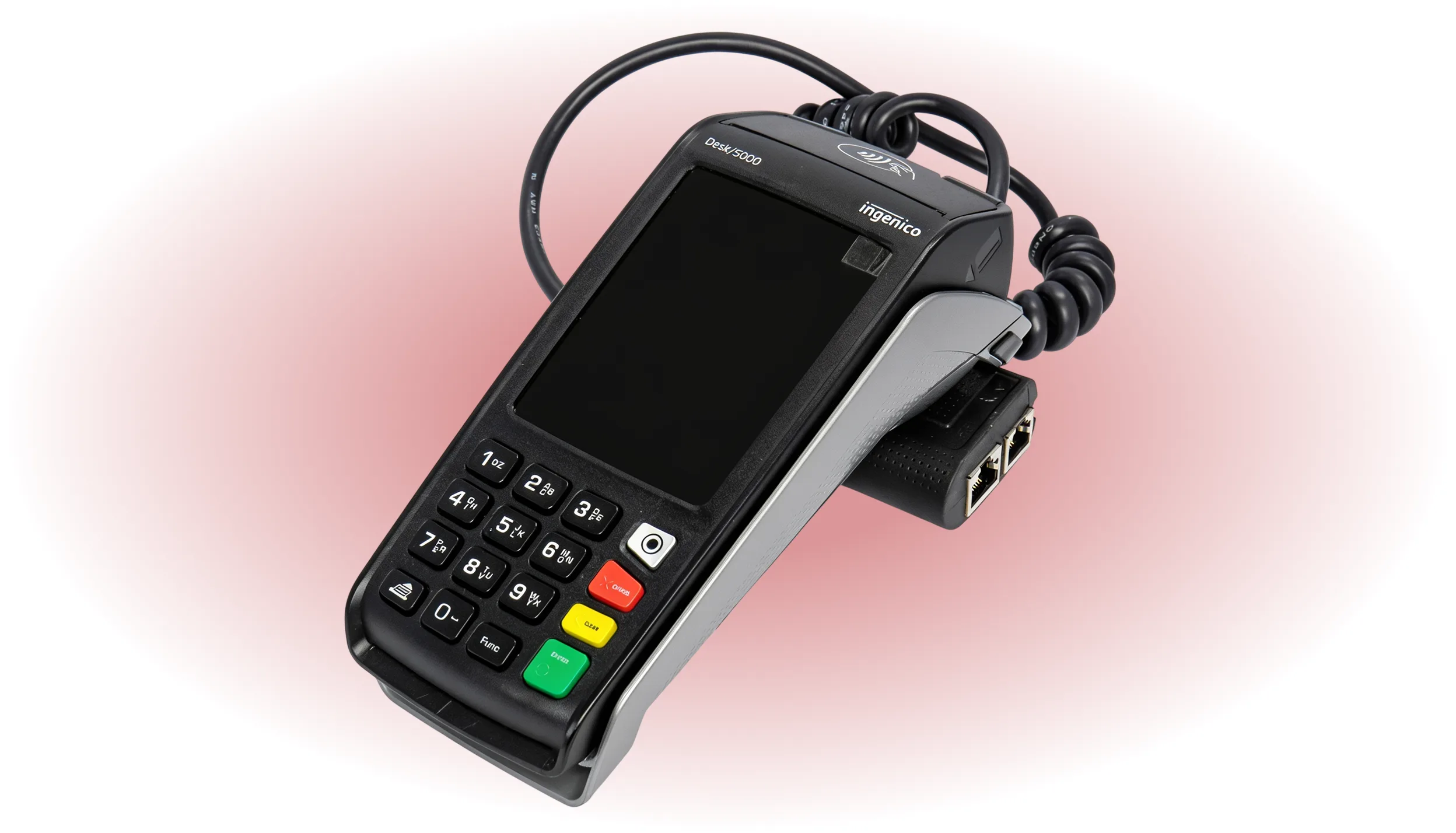

Ingenico Desk 5000 Countertop Card Terminal

Fast, secure in-person payments with a 3.5″ touchscreen, built-in receipt printing, and modern EMV + contactless acceptance.

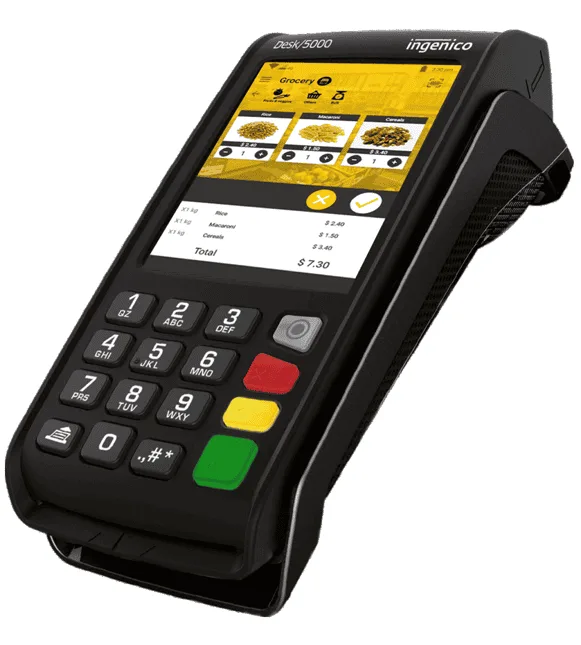

All-in-One Countertop Payment Terminal

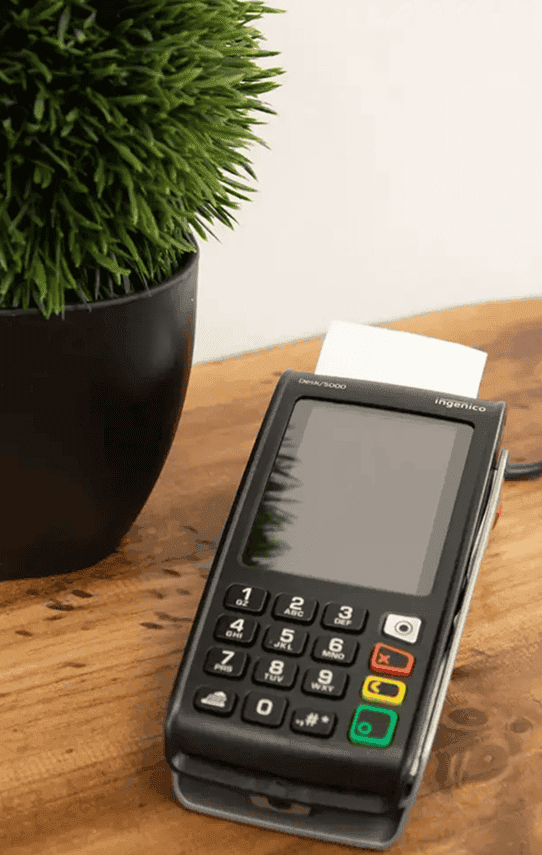

The Ingenico Desk 5000 is a countertop terminal designed for busy checkout counters. It supports EMV chip, magstripe, and contactless (NFC) payments, and it includes a built-in thermal printer. So, with Desk 5000, you can process transactions and hand customers receipts without extra hardware.

Ingenico Desk 5000 is the best terminal for retail counters, quick-service checkout, service desks, and any fixed-location business that wants a durable, all-in-one terminal experience.

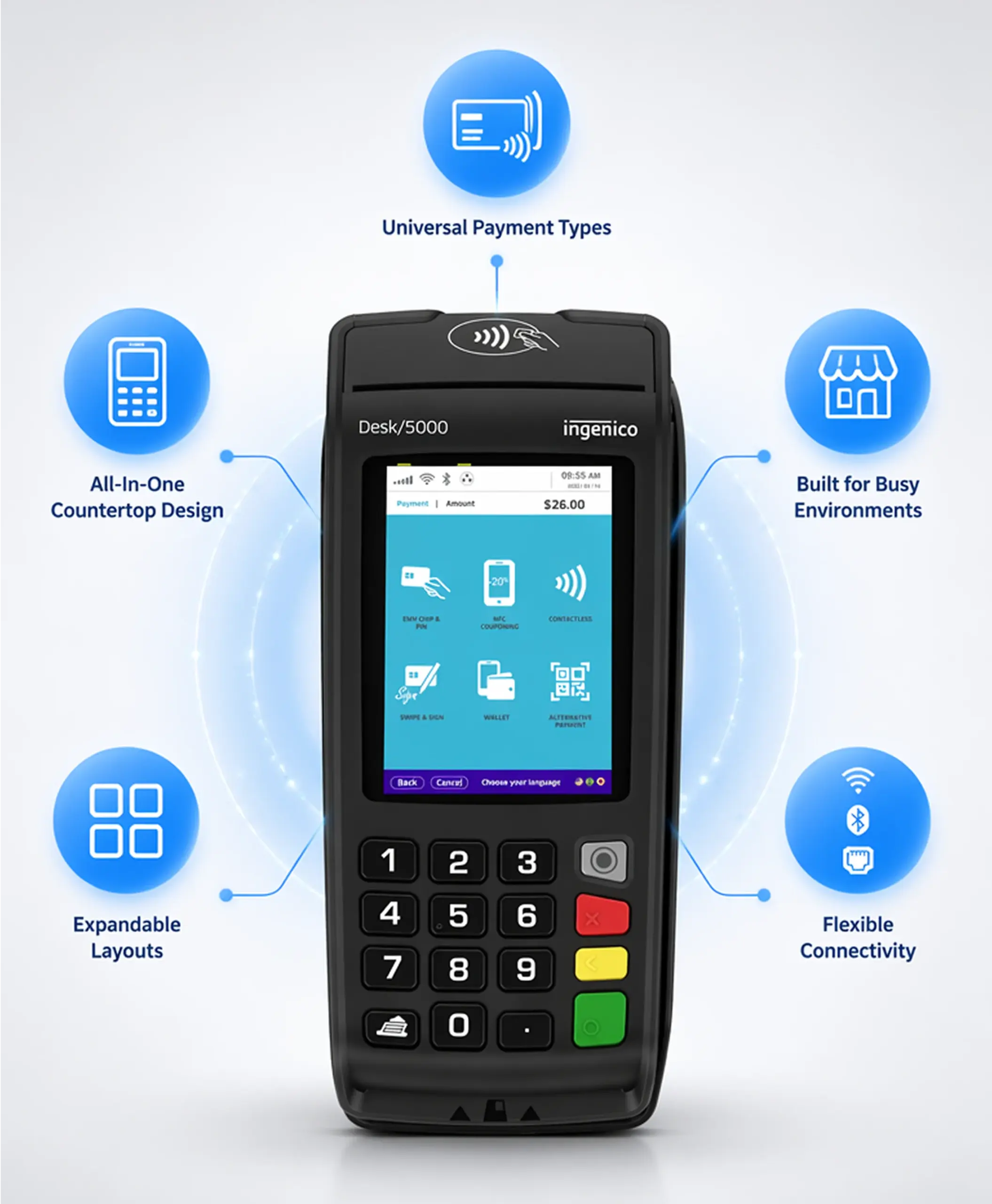

Why Merchants Choose the Desk 5000

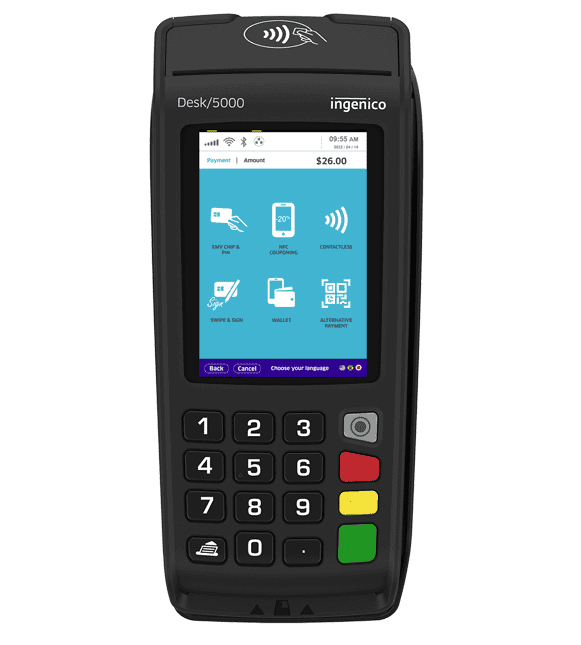

Take Every In-Person Payment Type: Desk 5000 supports magstripe, EMV smart cards, and NFC contactless, so customers can dip, tap, or swipe as needed.
All-In-One Countertop Hardware: You get a 3.5" color touchscreen (480×320 HVGA), a 16-key backlit keypad, and a thermal printer rated around 20 lines/second, built into one device.
Designed for Demanding Environments: Ingenico positions Desk 5000 for high-volume counters, with a robust casing and a keypad designed to improve PIN entry.
Expandable Checkout Layouts: Desk 5000 can connect to compatible Ingenico PIN pad families. This can help save counter space and support richer customer interaction flows, depending on your setup.
Wide Network Availability: Ethernet and dial-up modem connectivity. Desk 5000 also offers broader network options (e.g., Wi-Fi, Bluetooth/cellular), depending on region/model and deployment.

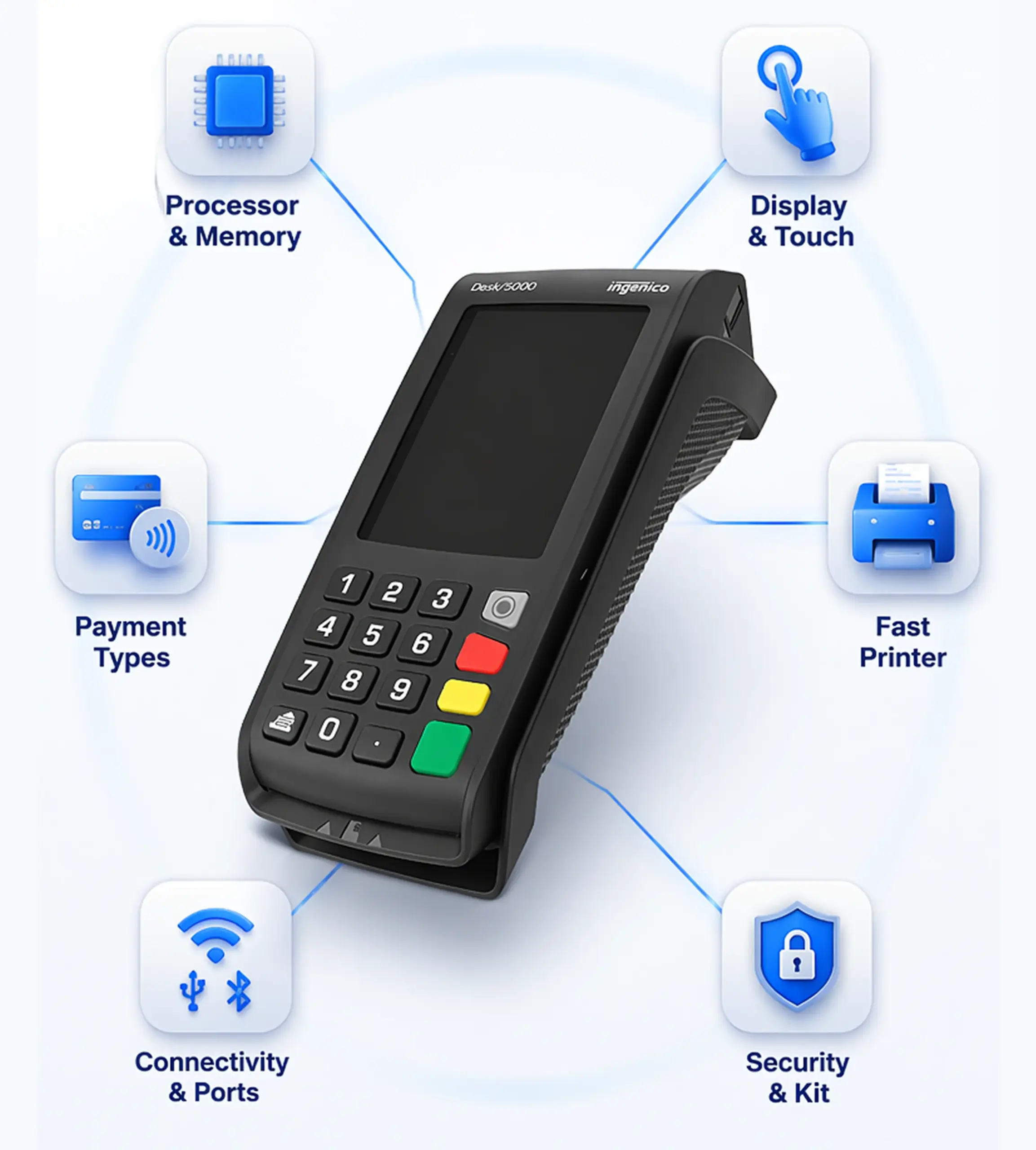

Desk 5000 Device Specifications and Capabilities

Powered by a Cortex-A5 processor, the Desk 5000 includes 512 MB Flash and 512 MB RAM, with MicroSD expansion support up to 32 GB.

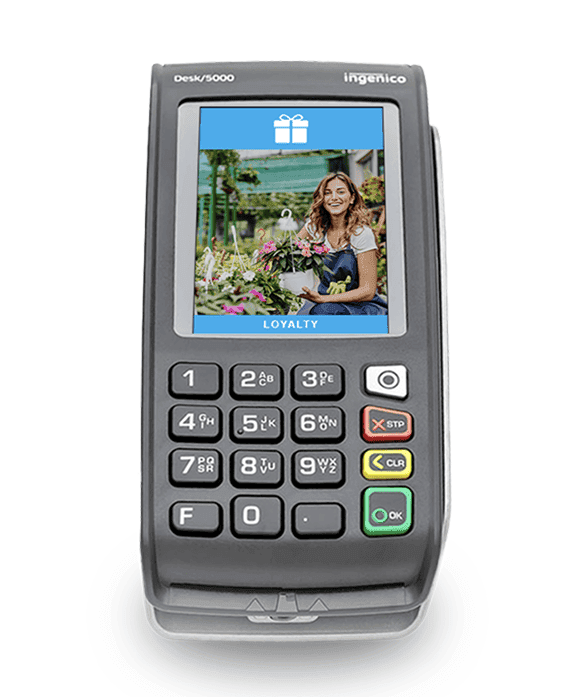

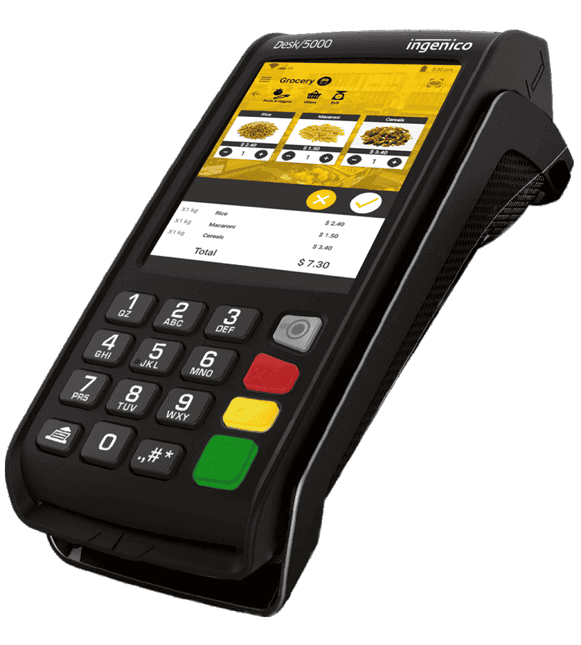

It features a 3.5-inch backlit color touchscreen with HVGA resolution (480 × 320) and resistive touch input.
The terminal accepts magstripe cards (ISO tracks 1/2/3), EMV smart cards (Level 1), and contactless payments compliant with EMV Level 1 standards.
A built-in thermal printer delivers print speeds of approximately 20 lines per second and supports 58 mm (2¼-inch) paper rolls with a 40 mm roll diameter.

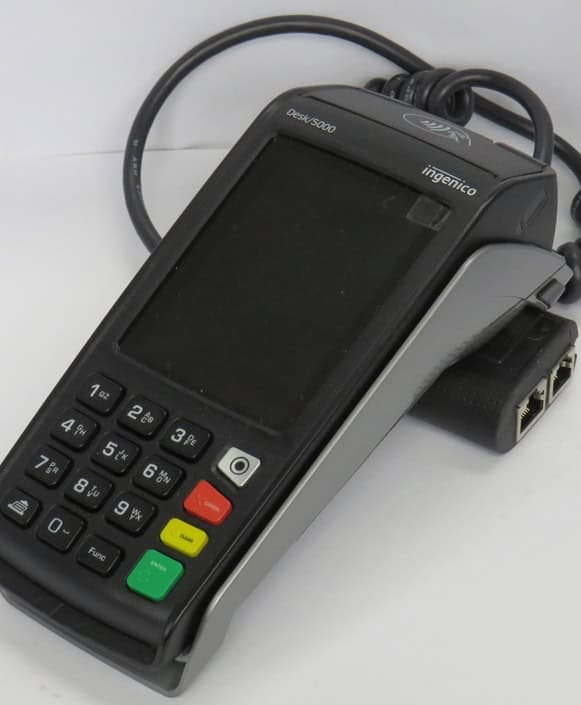

Connectivity options include Ethernet 10/100 Base-T and a dial-up modem. Available ports include USB Host, USB Slave, RS-232, and a dedicated power jack.
The device operates on a 32W power supply (8V at 4A) and measures 187 × 82 × 68 mm, with an approximate weight of 340 g (12 oz).
It is designed for operation in temperatures ranging from 0°C to 40°C (32°F to 104°F) and humidity levels up to 85 percent non-condensing at 40°C.
Include the Magic Box, privacy shield, and stylus kit.
Security certifications include PCI PTS 5.x.

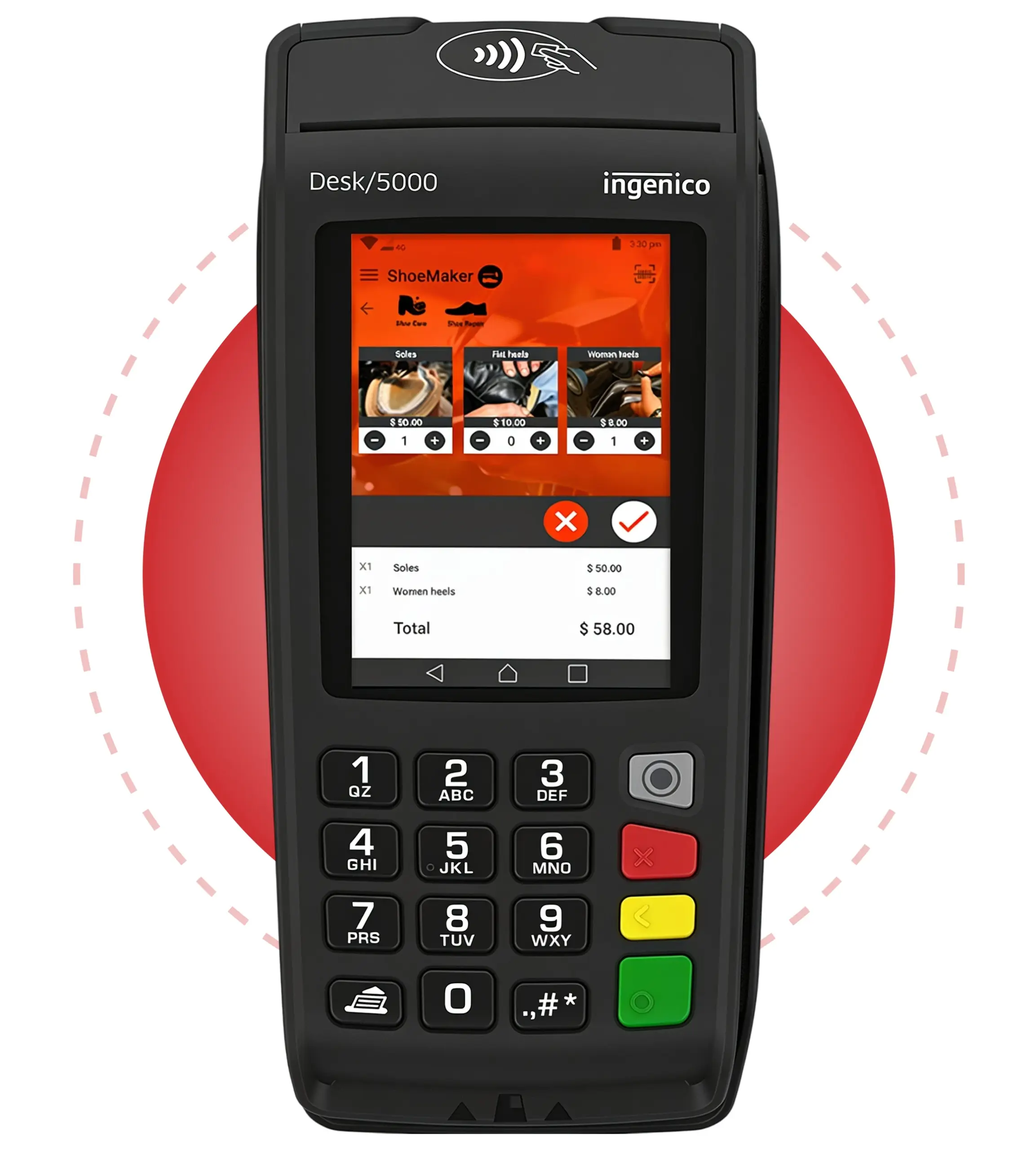

Reduced Checkout Friction with Desk 5000 Daily Transactions

Initiate a Sale

From the idle screen, press the green Enter key or select Sale if it appears on screen.
Choose Sale or Purchase from the menu.
Enter the transaction amount and confirm.

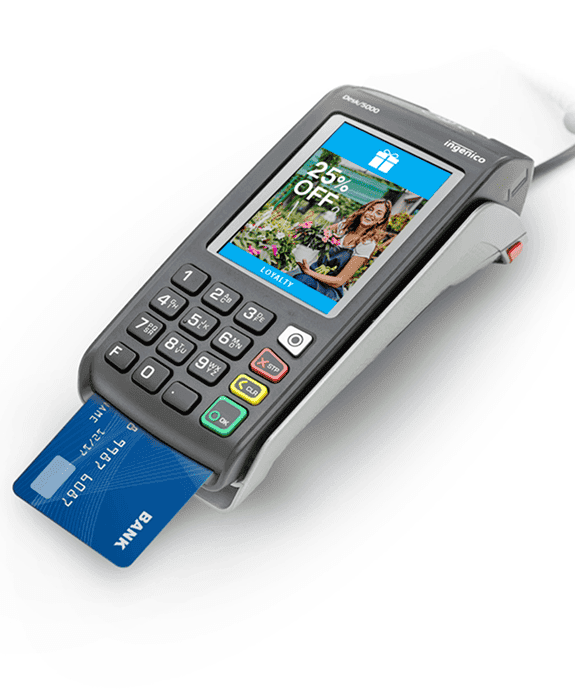

The customer taps, inserts, or swipes their card.
For debit transactions, the customer enters their PIN and waits for approval.
The terminal prints the receipt if printing is enabled.

Process a Refund (Return)

Open the main menu from the home screen.
Select Return or Refund.
Enter the refund amount when prompted.
If required, locate the original transaction or confirm the original card type.
The customer presents the card used for the original payment.
Confirmation appears on screen and a refund receipt prints.

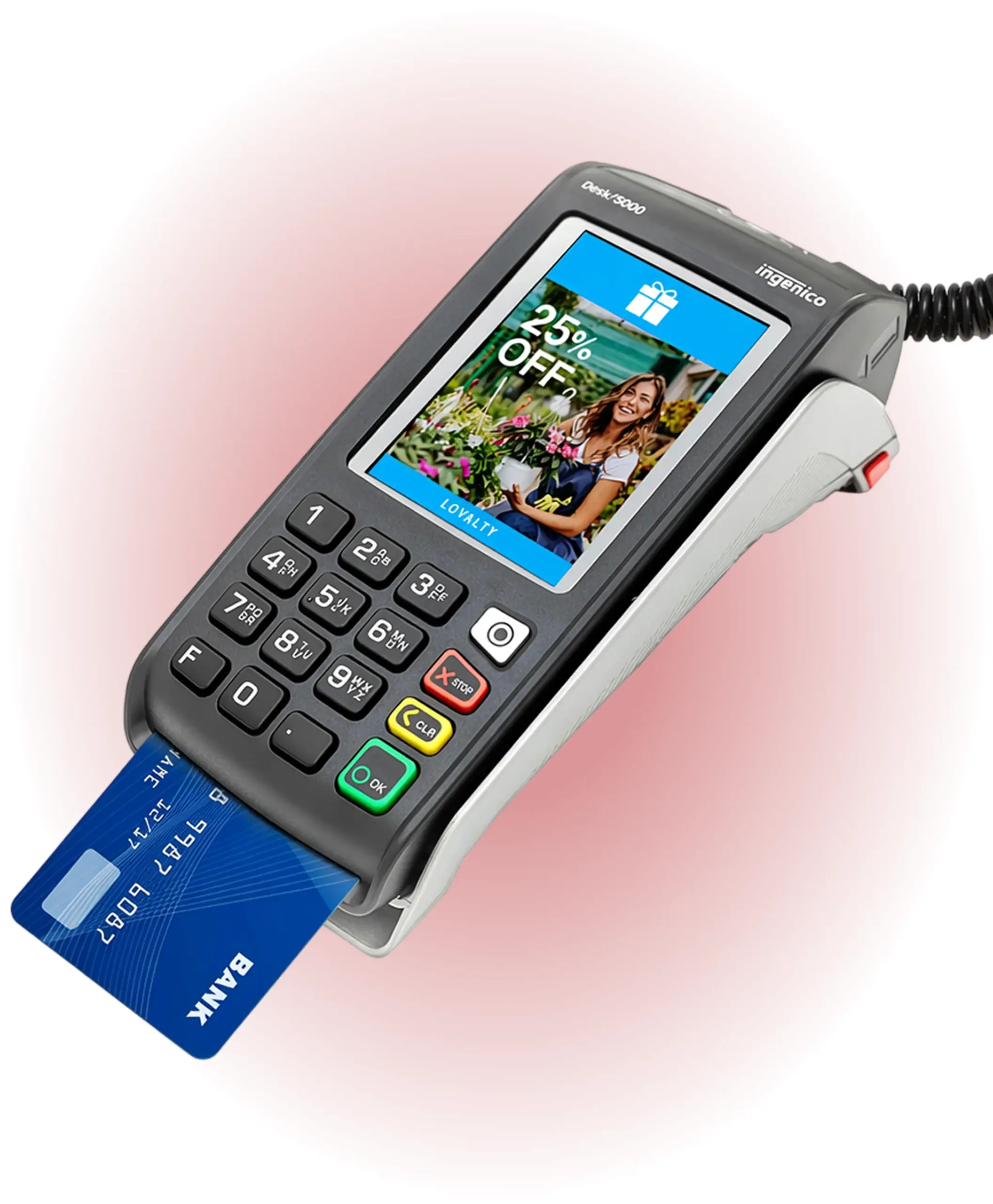

Void a Transaction

Reprint a Receipt

Manually Close and Settle a Batch

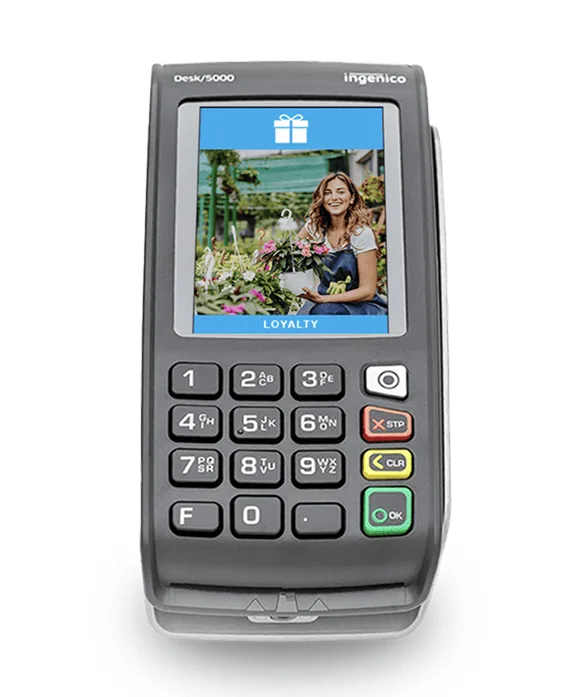

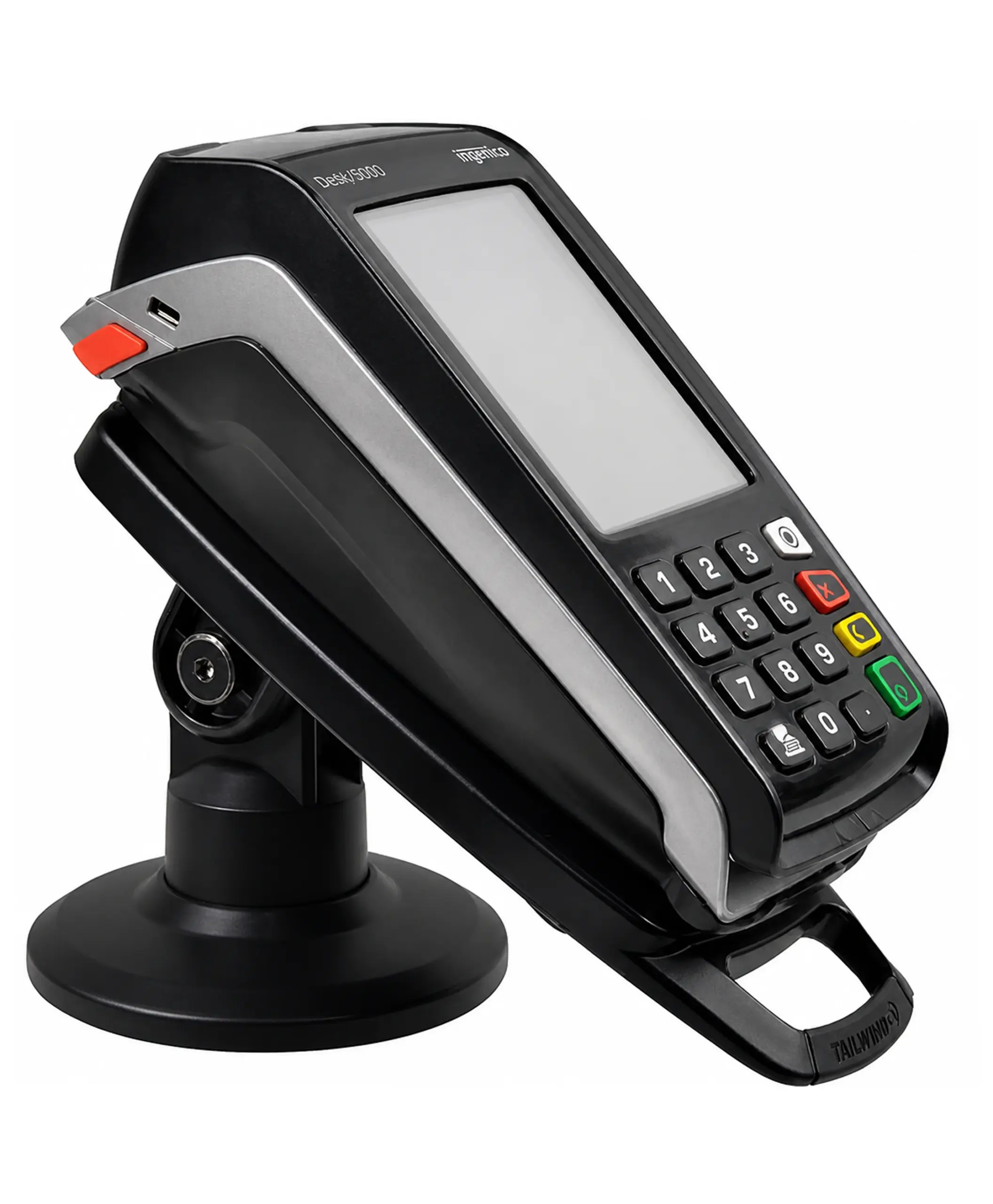

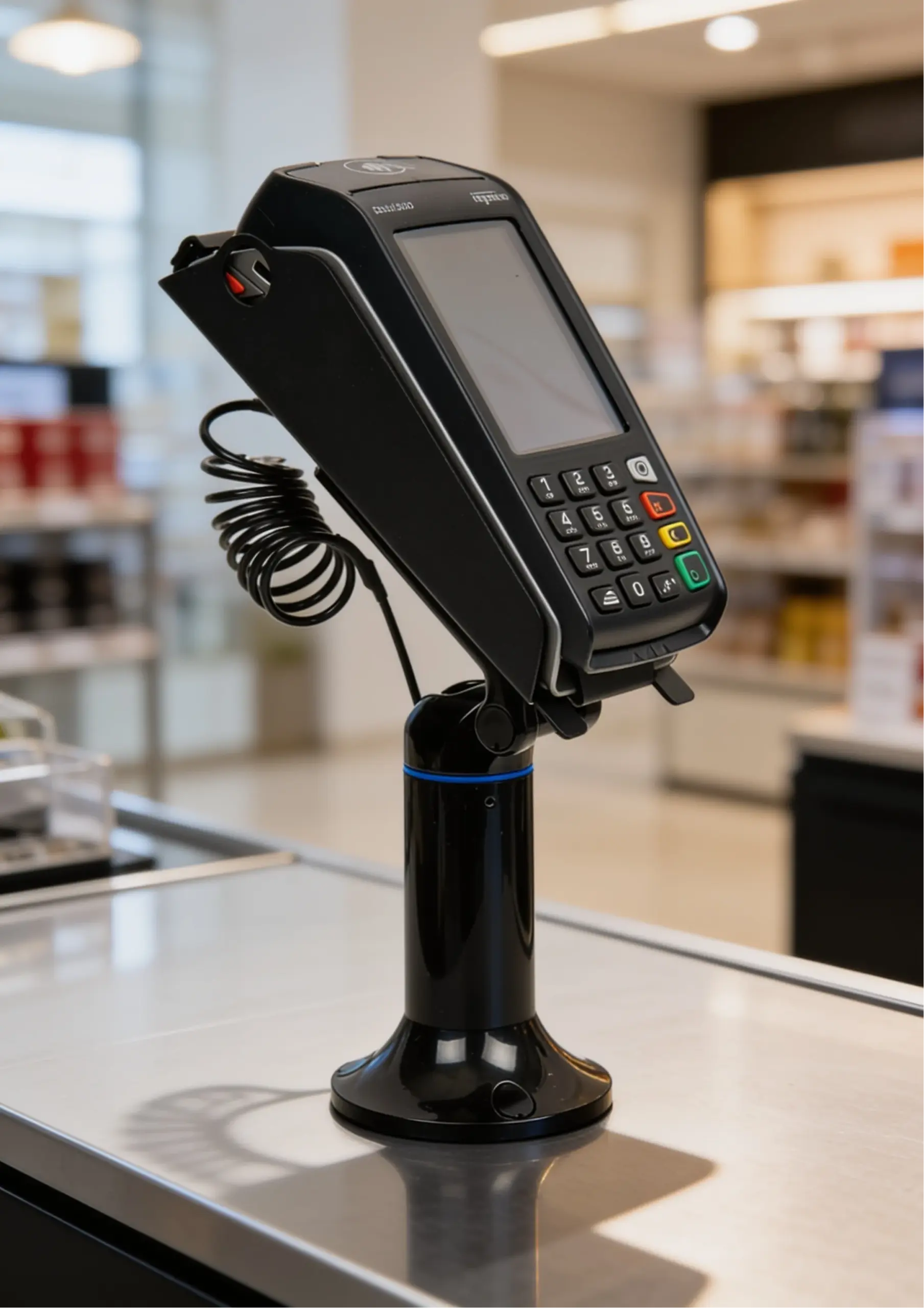

Host Merchant Services Helps You Validate Your First Transaction

Host Merchant Services helps validate key setup details before deployment to prevent delays and rework. This starts with selecting the correct connectivity option. If the terminal will use Ethernet, the cable run and network drop at the counter should be confirmed in advance. If wireless or cellular backup is required, the appropriate Desk 5000 hardware configuration must be sourced to meet the deployment requirements.

We confirm receipt of paper requirements before supplies are ordered. The Desk 5000 uses 58 mm (2¼-inch) thermal paper rolls, with a paper cage size of 58 mm by 40 mm. Verifying this upfront avoids ordering incompatible paper and prevents interruptions at the counter.

We also recommend running a test sale and verifying settlement timing. Many environments use automated settlement, and HMS aligns the batch close time with business operations so deposits, reports, and daily totals match the merchant’s accounting day.

Ready to Deploy the Ingenico Desk 5000 with Host Merchant Services?

Fill out the form, and we’ll help you confirm the right Desk 5000 configuration, match the terminal to your checkout flow, and provide a quick day-one checklist (test sale, receipt settings, tips, settlement timing).

"*" indicates required fields

Comments

This field is for validation purposes and should be left unchanged.

Name*

This field is hidden when viewing the form

Lead Source*

Company*

Business Location*

Phone*

Email*

Do you currently take credit cards?

Yes

Estimated Monthly Volume

CAPTCHA

Frequently Asked Questions

Does the Desk 5000 support tap-to-pay and mobile wallets?

Yes. Desk 5000 supports contactless (NFC) acceptance, along with EMV chip and magstripe.

Does it print receipts on-device?

Yes. It includes a built-in thermal printer with ~20 lines/sec and a 58 mm roll specification.

What internet/network connections can the Desk 5000 use?

The Desk 5000 includes Ethernet and a dial-up modem option; Ingenico also offers additional network connectivity (Wi-Fi/Bluetooth/cellular) depending on configuration.

Is the Desk 5000 PCI compliant?

The Desk 5000 meets PCI PTS compliance requirements for payment terminals. It aligns with PCI PTS 5.x standards and holds the required PCI Security Standards approvals, supporting secure card-present transaction processing.

How do I manually settle my batch?

Many deployments use automatic daily settlement, but manual settlement is typically available via a Settlement menu where you confirm closing the batch and (optionally) print a batch report.

How do I reboot the Desk 5000 quickly?

A common reboot shortcut is Yellow Clear + # for ~5 seconds.
