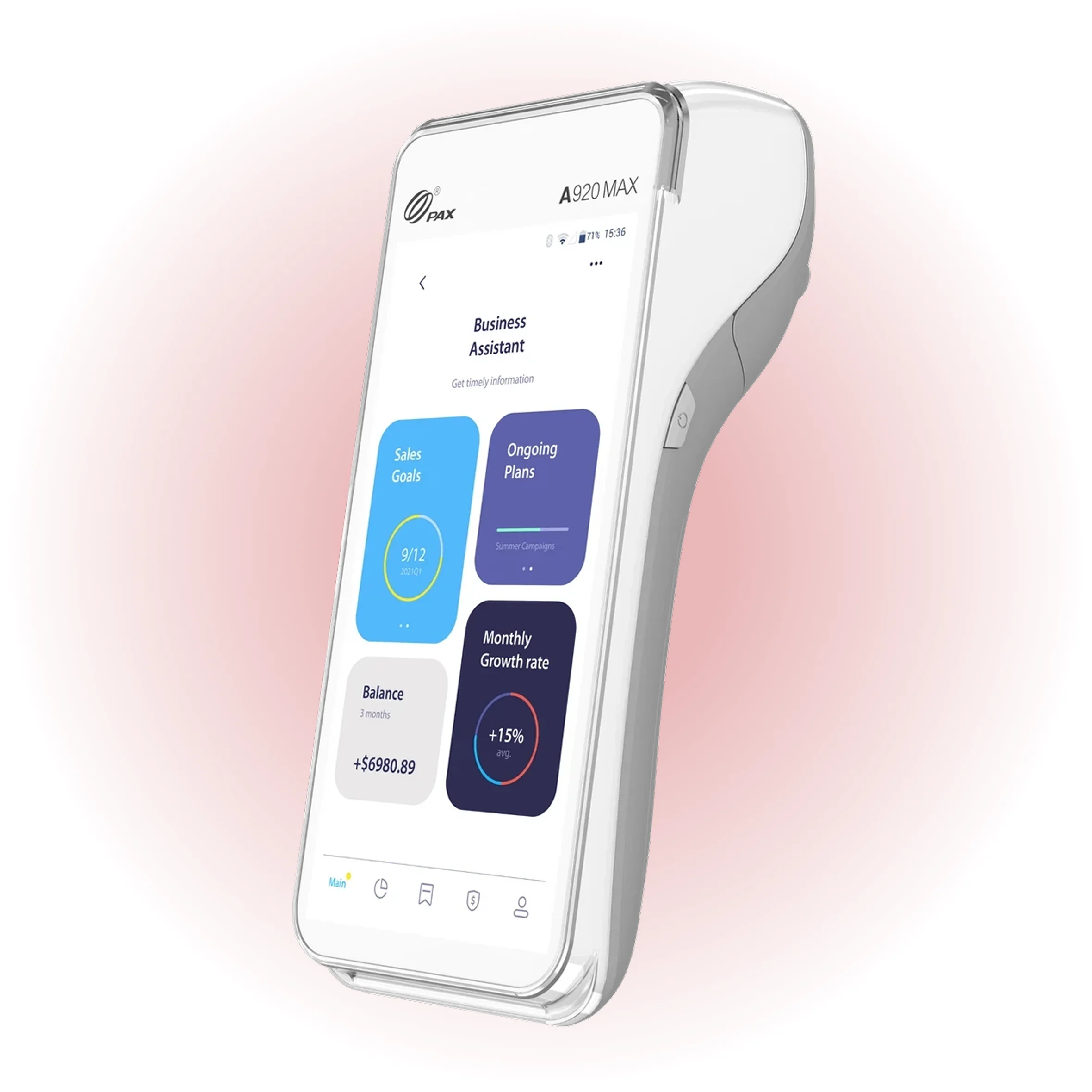

PAX A920 MAX Smart Mobile Card Terminal

Get max performance from the PAX A920 MAX smart mobile payment terminal. This Android SmartPOS is built for speed, featuring a large HD+ touchscreen, built-in receipt printing, and flexible 4G/5G connectivity.

A Mobile Terminal That Feels Like a Mini POS

The PAX A920 MAX is a handheld SmartPOS designed for businesses that want more than a basic card reader. It combines tap, chip & PIN, and swipe acceptance with a 6″ (4G) or 6.5″ (5G) capacitive touchscreen, fast on-device receipt printing, and cameras/scanning options that can support QR-based workflows.

It’s a strong fit for restaurants (pay-at-the-table), retail line-busting, delivery, service professionals, events, and any business that wants to move checkout to the customer instead of the other way around.

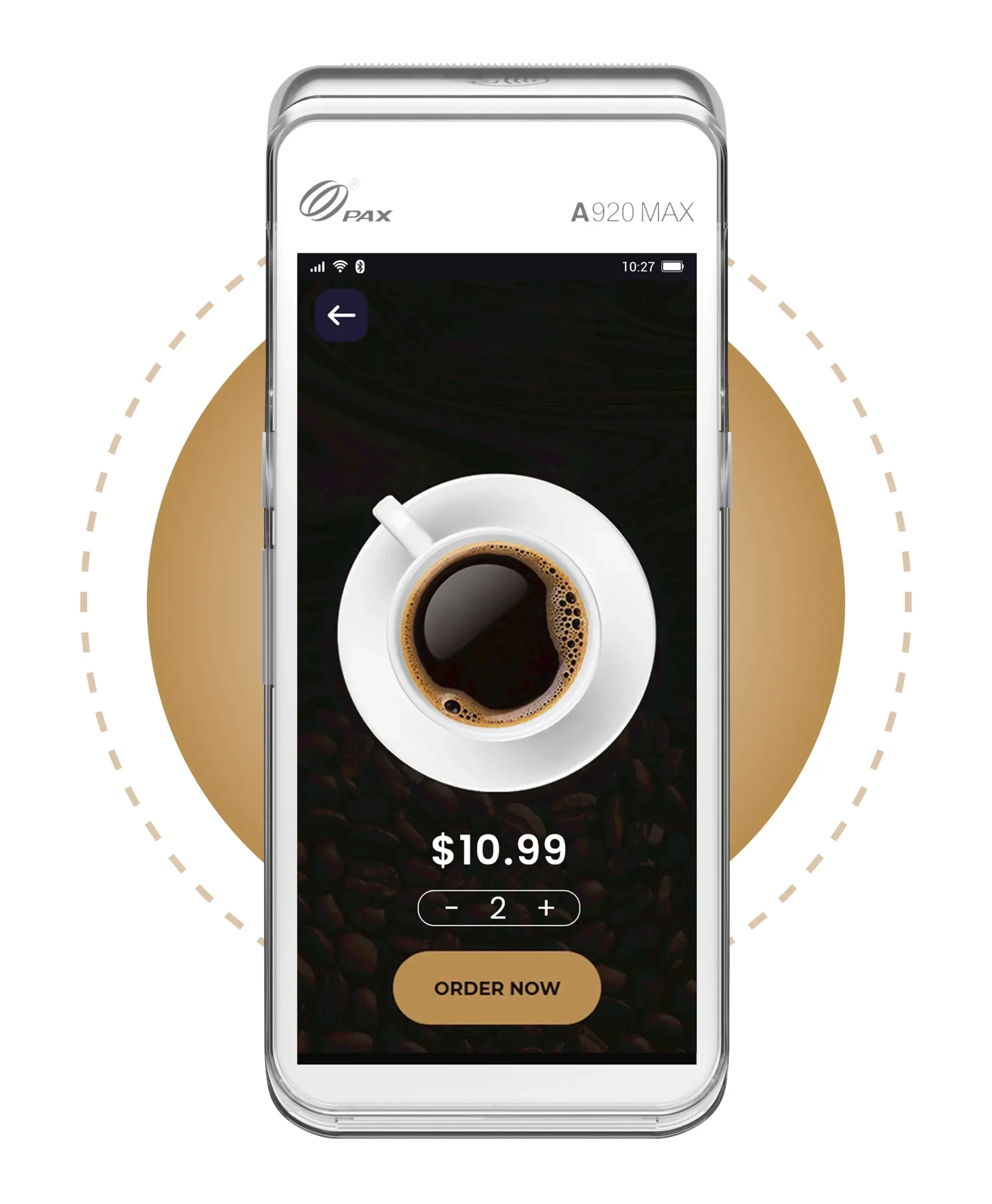

Benefits of the PAX A920 MAX

Turn Any Spot Into a Checkout Lane Process payments from the counter, the table, the sidewalk, or the job site with 4G or 5G models, plus Wi-Fi and Bluetooth to match how you work.
More Screen, Less Friction The larger display makes it easier to review totals, add tips (when enabled in your payment app), and guide customers through checkout. The 5G version includes a gravity sensor that can auto-adjust orientation for comfortable viewing.
Built for “Scan-First” Workflows Use the rear camera (up to 13MP, autofocus) to support QR-driven experiences, and add the optional top-side professional barcode scanner if your workflow depends on fast, repeatable scanning.
Strong, Modern Security Posture The A920 MAX is built to meet PCI PTS 6.x SRED requirements and supports major EMV and contactless standards (e.g., EMV L1/L2, EMV Contactless L1, Visa payWave, Mastercard Contactless).
A Smarter Foundation for Business Apps It runs PayDroid (Android-based) with multiple OS options (Android 10/11/13 depending on model) and configurable memory, making it easier to support modern payment apps and value-added tools through PAX’s app ecosystem (MAXSTORE/PAXSTORE varies by region/provider).

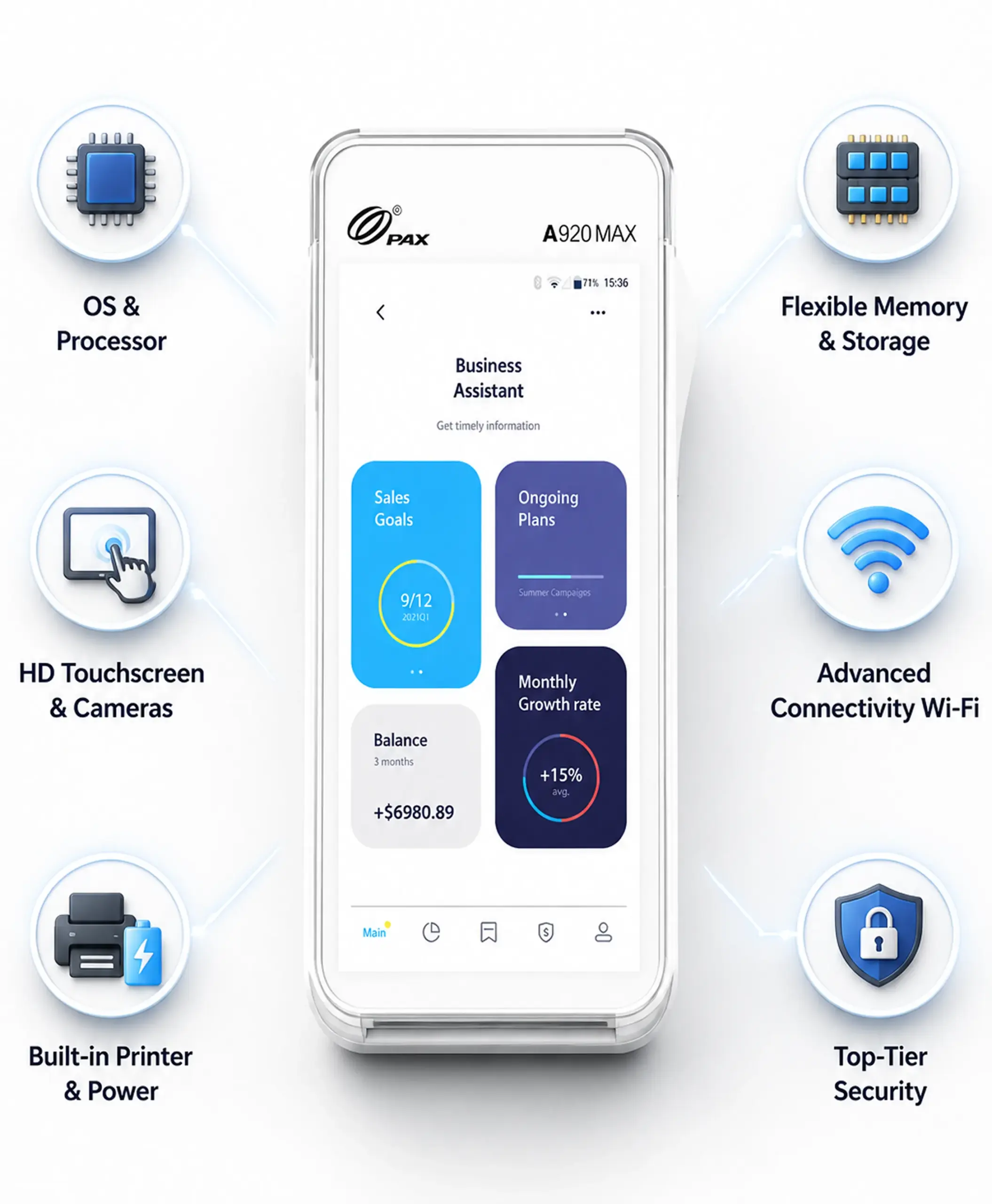

PAX A920 MAX Device Specifications and Capabilities

The device runs on PayDroid powered by Android, with 4G models available on Android 10 or 11 and 5G models running Android 13.
Powered by a Cortex-A53 quad-core processor at 1.3GHz with a dedicated secure processor.
Memory configurations vary by model, starting at 1GB RAM with 8GB flash storage and scaling up to 4GB RAM with 64GB flash on higher-end configurations.
Storage can be expanded via a microSD card up to 128GB.
It supports Chip & PIN, contactless, and magnetic stripe payments.
Display size depends on the model, with a 6-inch IPS HD+ capacitive touchscreen on 4G versions and a larger 6.5-inch IPS HD+ capacitive touchscreen on 5G versions, which also include a gravity sensor.
Camera options include a rear camera with resolutions up to 13MP autofocus, optional front camera support on certain 5G models, and an optional top-side professional barcode scanner.
Connectivity varies by configuration, with 5G models supporting 5G cellular, Wi-Fi across 2.4GHz and 6GHz bands, and Bluetooth 5.4, while 4G models support 4G cellular, Wi-Fi at 2.4GHz and 5GHz, and Bluetooth 5.0.
Certain configurations also support eSIM.
The device includes an integrated thermal printer rated at 80 mm per second and uses paper rolls with a 40 mm outer diameter.
Navigation and location services are supported through AGPS, GPS, GLONASS, BEIDOU, and Galileo.
Physical connections include a USB-C port with OTG support and a 6-pin pogo interface.
The unit measures 186.3 × 80 × 54.9 mm and weighs approximately 413 grams, including the battery.
Power is supplied by a 2500mAh battery rated at 6.4V (16Wh), designed to deliver energy output comparable to a 5000mAh battery at 3.2V, using lithium iron phosphate battery technology.
The device is designed to operate in temperatures from 0°C to 45°C and can be stored between -20°C and 70°C.
It meets current PCI PTS 6.x security requirements with SRED support and complies with EMV and contactless payment standards.
Optional accessories include charging-only bases, charging and multi-function bases, and charging bases with wireless communication support.

How Payments Typically Work on the A920 MAX

Open your payment app and choose Sale (or start an order).
Enter the amount (or confirm the order total).
Customer pays by tap, insert (chip & PIN), or swipe.
If enabled, the app may prompt for tip/signature and receipt choice.
Print the receipt on-device (or send digital receipts if your app supports it).

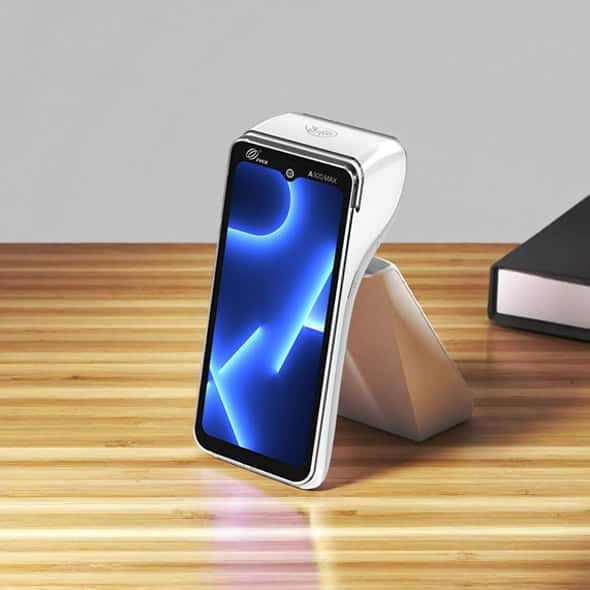

Docking Options for Counter + Mobile Work

If you want a “grab-and-go” mobile terminal that still lives neatly on the counter between rushes, pair the A920 MAX with an optional base for charging and communications.

Ready to Get Started with the PAX A920 MAX?

Fill out the form to get pricing and confirm the best configuration for your workflow (4G vs. 5G, memory tier, scanner add-on, and docking/base options). We’ll also provide a quick onboarding checklist so you can start taking payments fast.

"*" indicates required fields

Company

This field is for validation purposes and should be left unchanged.

Company*

Business Location

Phone

Do you currently take credit cards?

Yes

Estimated Monthly Volume

Frequently Asked Questions

Does the PAX A920 MAX accept tap-to-pay and chip cards?

Yes. The A920 MAX supports contactless (tap), EMV chip & PIN, and magstripe swipe transactions.

What’s the difference between the 4G and 5G versions?

Key differences include screen size (6" on 4G vs 6.5" on 5G), connectivity bands/Bluetooth version, and the gravity sensor listed for the 5G display configuration.

Can it scan QR codes or barcodes?

It supports camera-based scanning workflows (PAX highlights QR payments/coupons/product images), and there’s an optional top-side professional barcode scanner for faster barcode capture.

Does it print receipts?

Yes, there’s an integrated thermal printer (datasheet lists 80mm/sec print speed).

Is the A920 MAX secure and compliant?

Yes, it’s PCI PTS 6.x SRED and major EMV/contactless certified.

Can I run business apps on it?

The A920 MAX is an Android-based SmartPOS (PayDroid), and PAX promotes an app ecosystem (MAXSTORE/PAXSTORE depending on region/provider) for deploying and managing apps.
