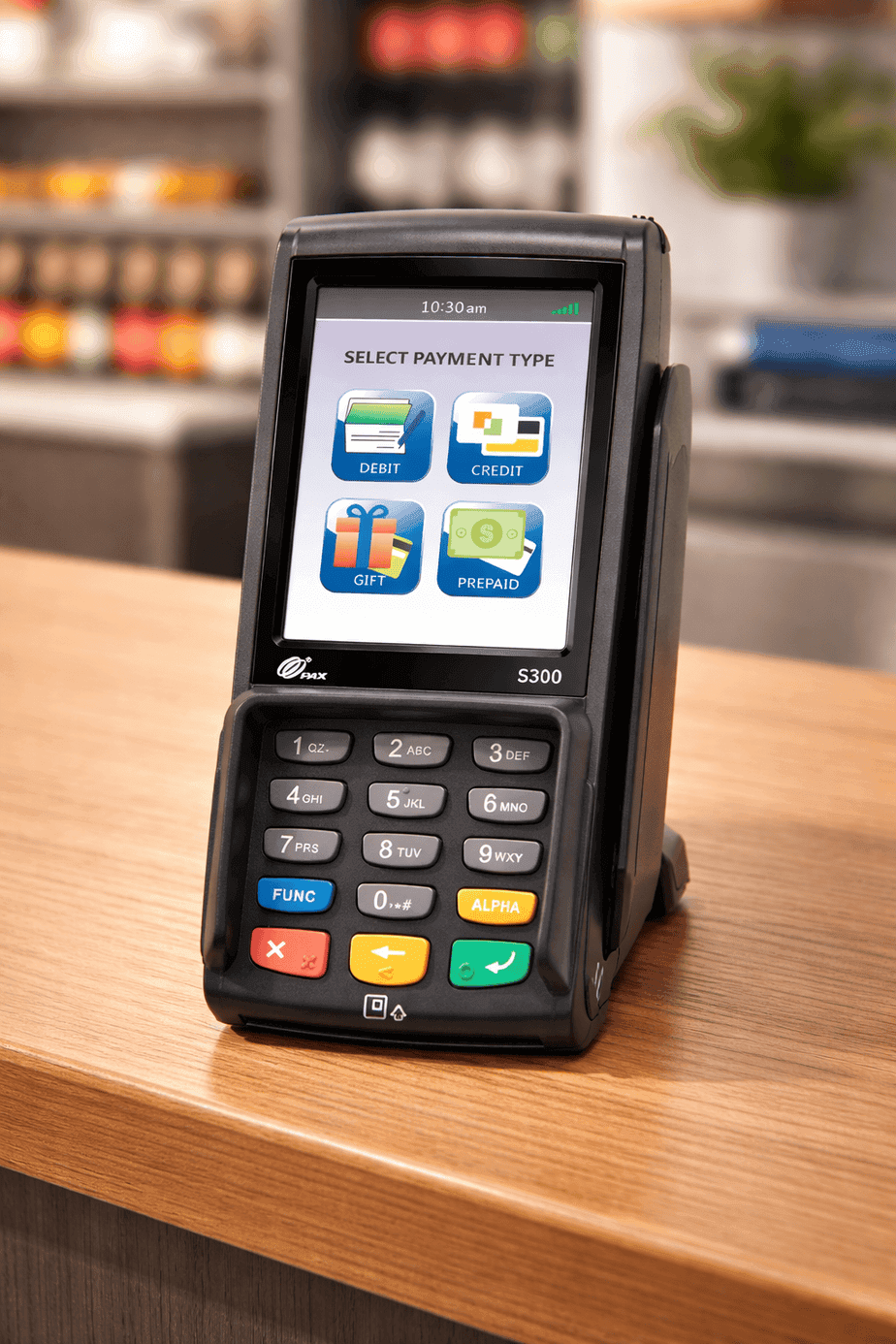

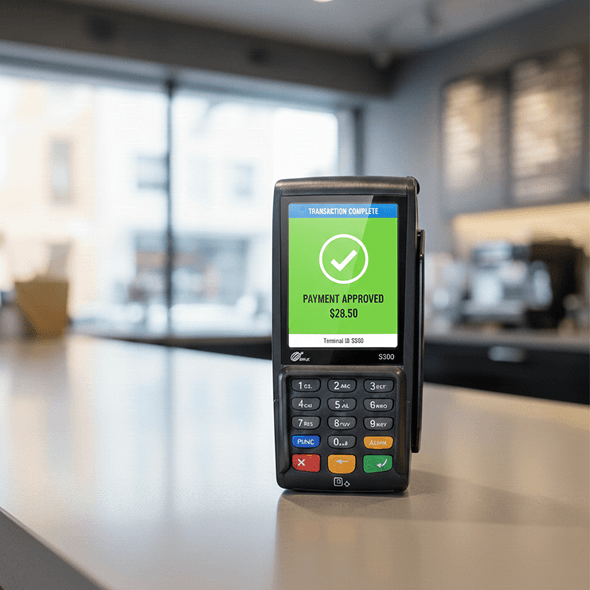

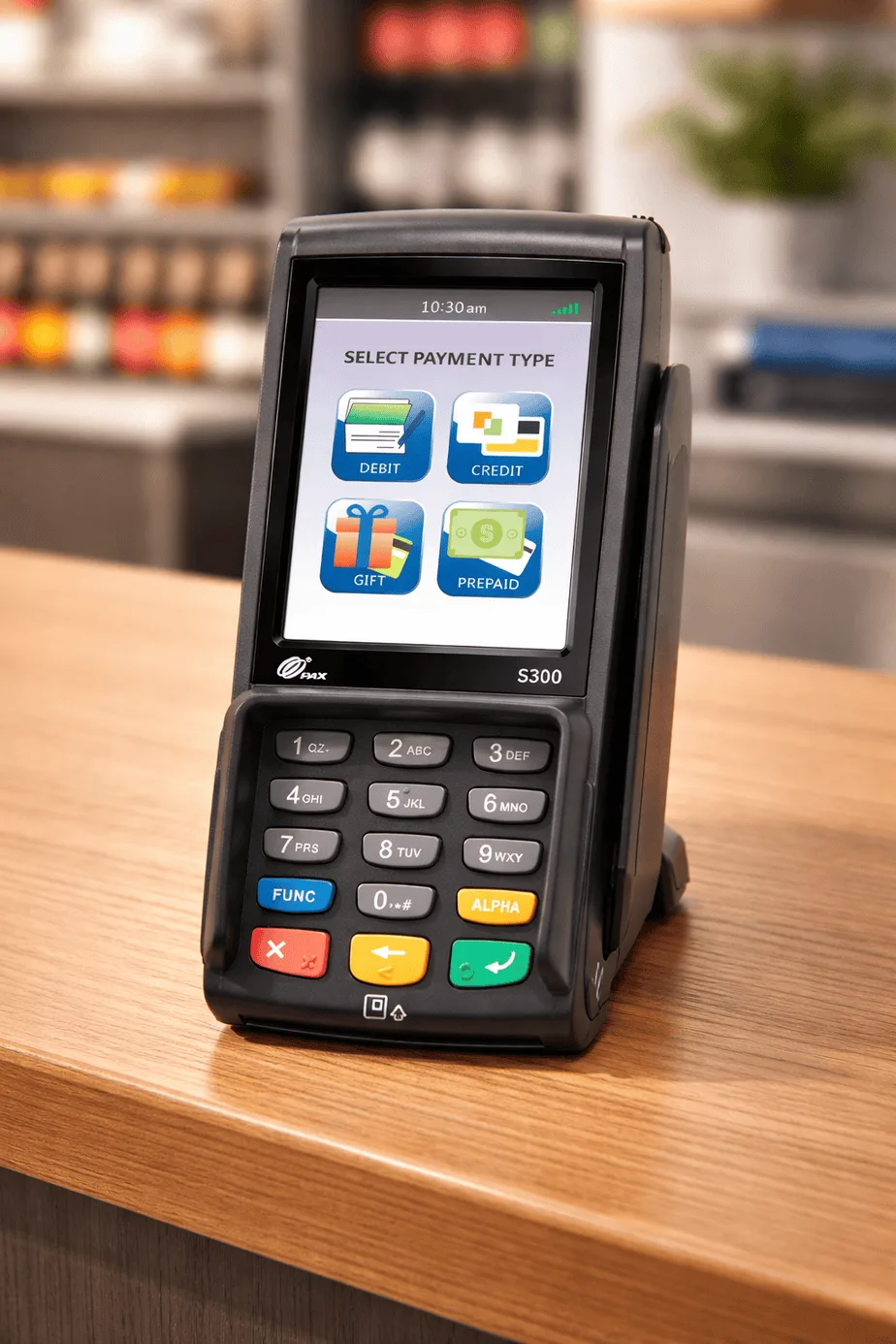

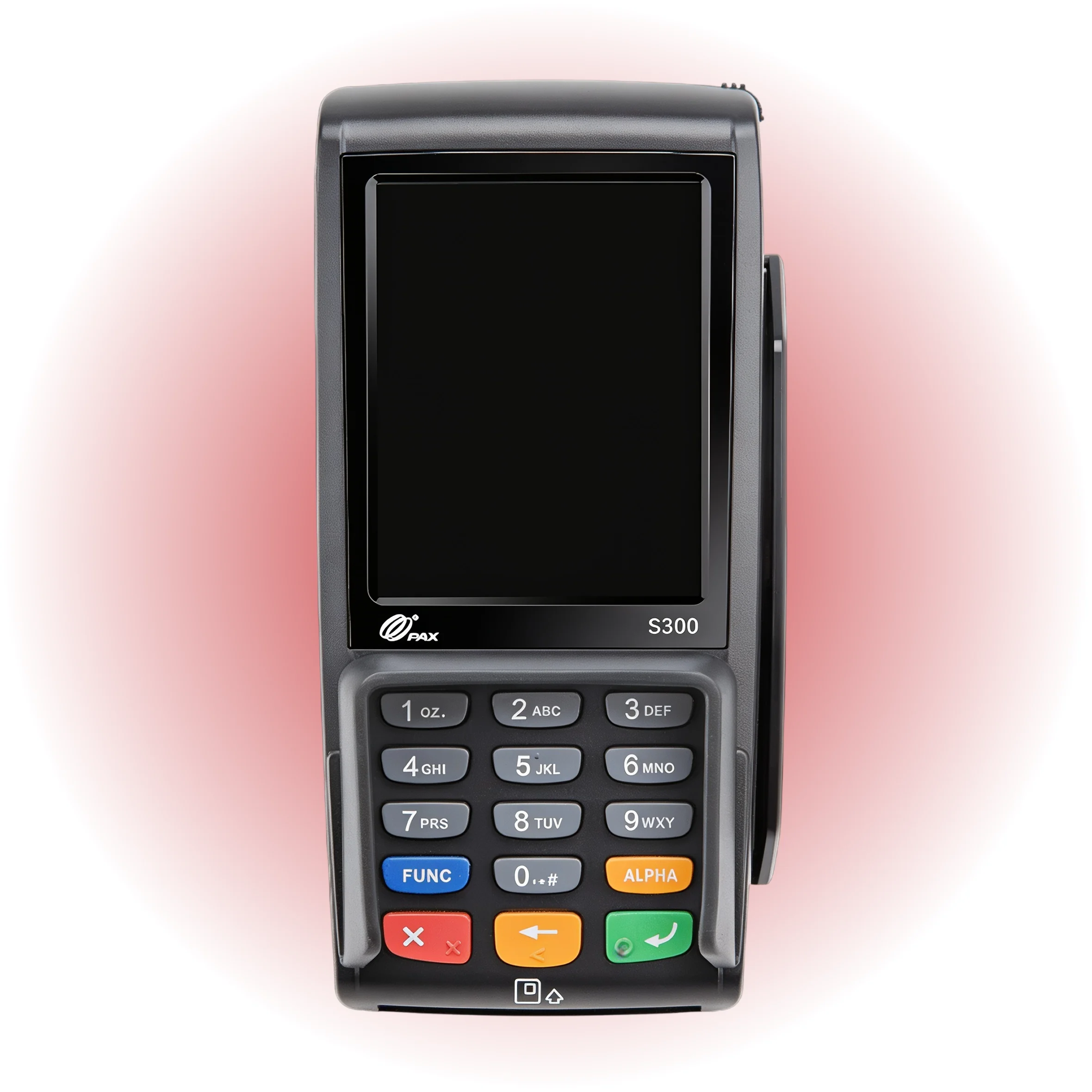

PAX S300 Compact and Secure Payment Terminal

A compact, secure payment terminal that supports contactless, chip, and swipe payments. S300 is designed for speed and reliability, delivering a smooth checkout experience in busy retail environments.

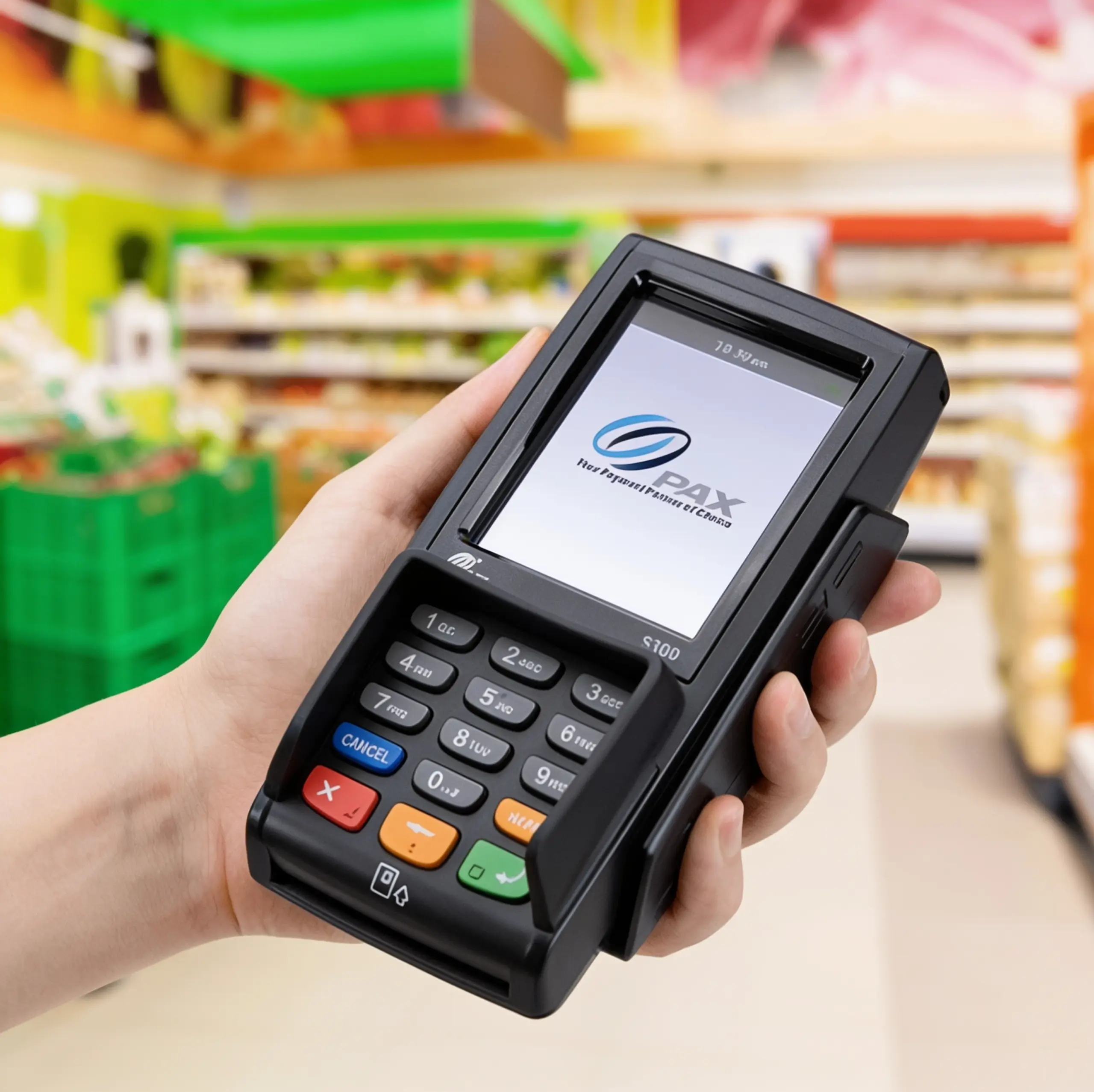

High-Volume Processing Made Easy with PAX S300

The PAX S300 is a powerful and reliable payment terminal designed for busy retail environments that demand speed, security, and flexibility. Built for multilane merchants, it supports contactless payments, EMV chip, magnetic stripe, and e-signature transactions, allowing customers to pay quickly and comfortably.

With advanced PCI PTS 4.x and SRED security, every transaction is fully protected and encrypted. Its large color touchscreen, powerful processing, and ample memory deliver smooth performance, while USB and LAN connectivity make it easy to integrate with existing checkout systems. Sleek, durable, and feature-rich, the PAX S300 is built to keep checkout lines moving and customers satisfied.

Why Merchants Choose the PAX S300?

Strong Security & Compliance

The S300 is designed to meet PCI PTS 4.x and SRED security requirements to help protect and encrypt transaction data, and it supports common cryptographic standards such as RSA, AES, and 3DES.

All the Major Ways Customers Want to Pay

It supports magstripe, EMV chip & PIN, and contactless/NFC, helping merchants reduce checkout friction and keep lines moving.

Certified for Popular Contactless Programs

The S300 includes EMV L1 & L2 certification and EMV Contactless L1, and supports major contactless schemes like Visa payWave, Mastercard Contactless, AMEX Expresspay, and more.

Better Customer Interaction at the Counter

With a 3.5-inch (240×320) touchscreen and a built-in loudspeaker, the S300 supports customer prompts and e-signature, creating a smoother, more modern checkout experience.

Easy Countertop Integration for Multi-Lane Setups

The S300 includes a single multi-function cable port supporting RS232, USB 2.0 device, and Ethernet, making it straightforward to connect with common POS environments.

Compact Footprint for Busy Registers

Its compact size (6.57 × 3.19 × 1.97 in) helps it fit neatly on crowded counters without impeding scanning, bagging, or customer flow.

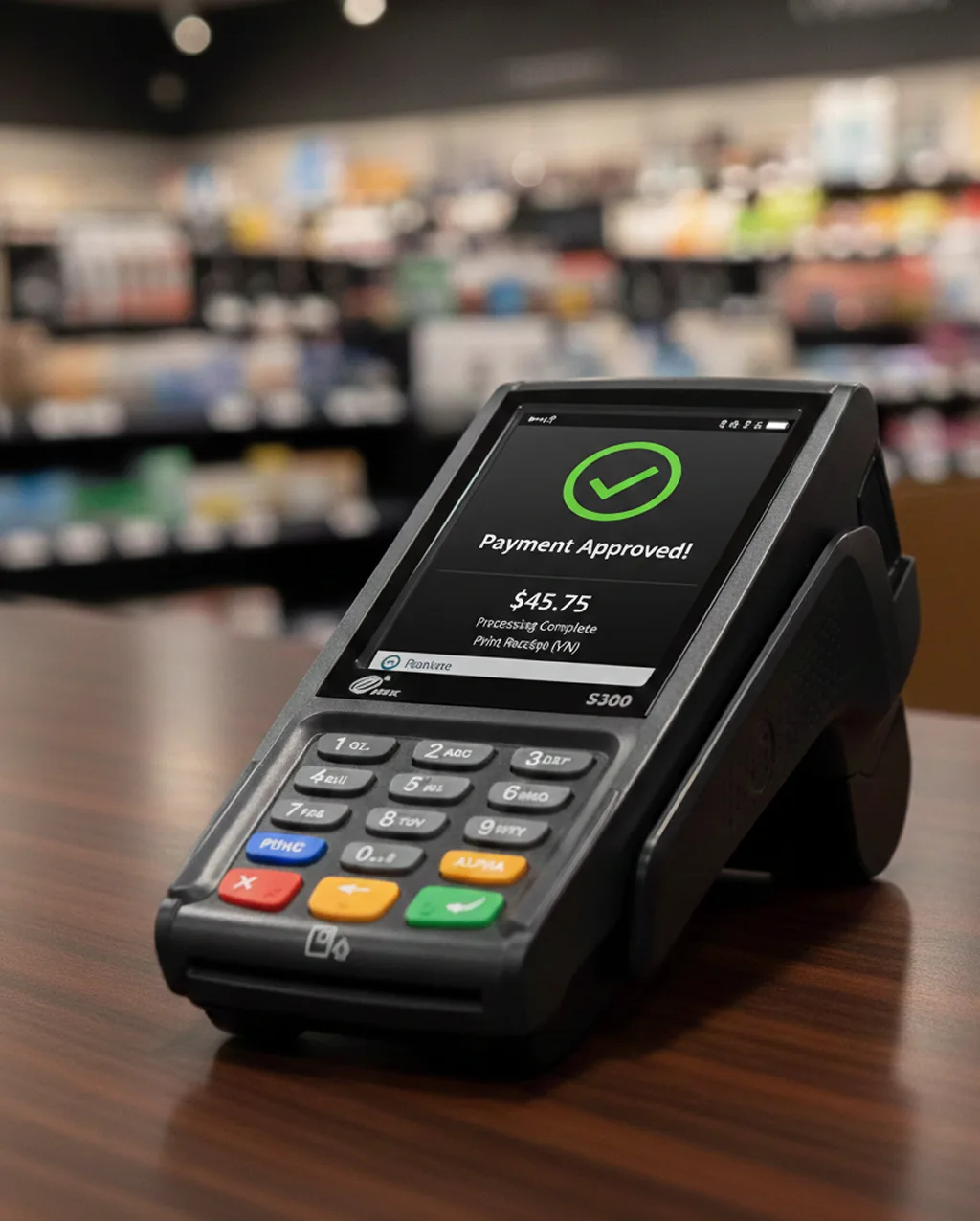

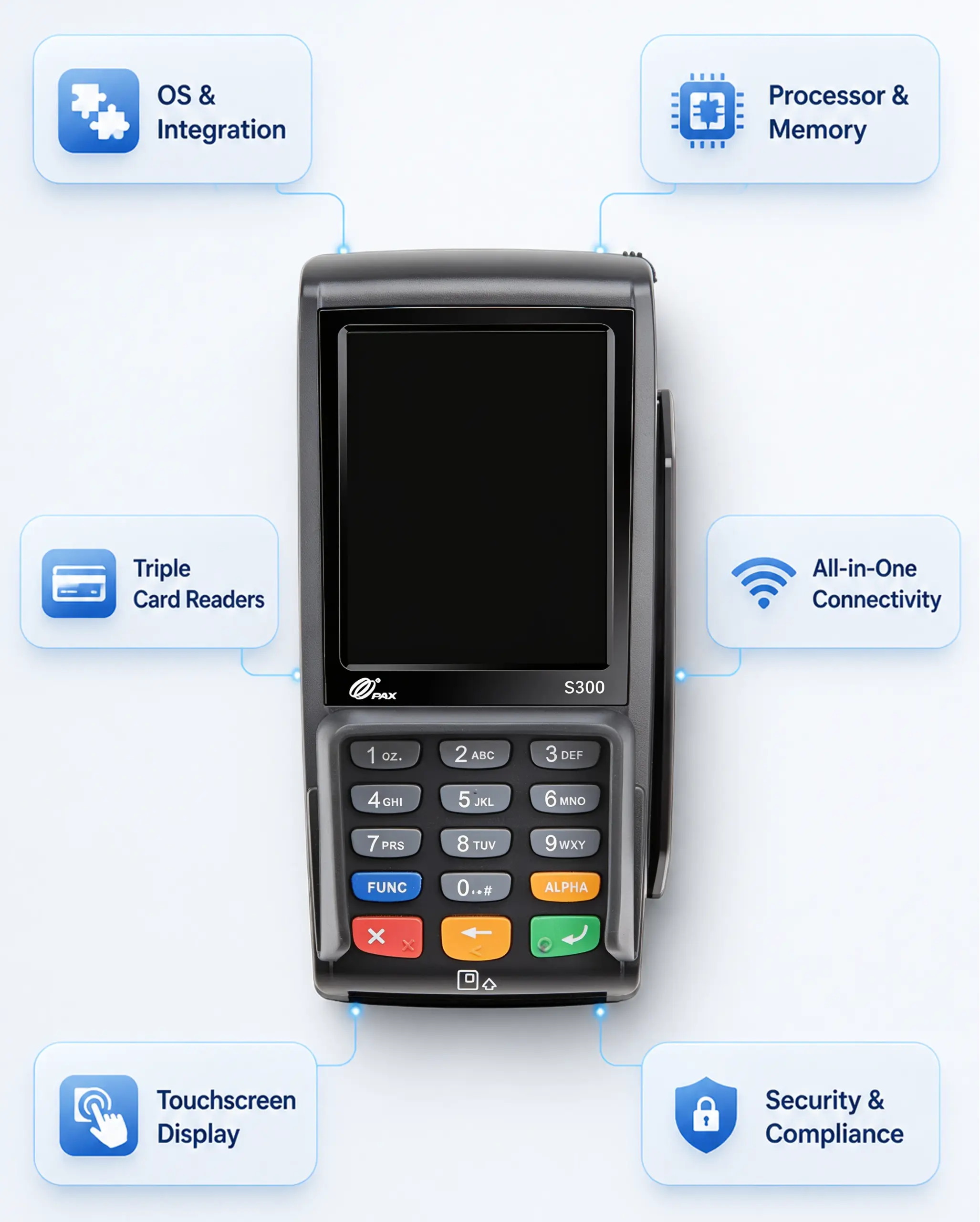

PAX S300 Specialities and Capabilities

The S300 runs on PAX’s Prolin / PaxMe (Linux-based) platform, designed to support secure payment applications and smoother in-lane integrations.
It comes with a total of 192MB of memory, including 128MB Flash and 64MB DDR.
It is powered by a 32-bit ARM11 processor and 192 MB of memory (128 MB Flash + 64 MB DDR).
Magnetic card reader, smart card reader, and contactless card reader.
Single multi-function cable port supporting RS232, USB 2.0 device, and Ethernet.
It supports a 3.5" QVGA touchscreen (240×320) and is designed for a GUI-driven interface, with support for rich on-screen prompts and multimedia-style content (including HD images/video support in device documentation).
Embedded with a key area and a tamper/self-destruct mechanism intended to protect sensitive payment data if physical attacks are detected.
The S300 supports a single multi-function cable port with common integration options including RS232, USB device, and Ethernet (with some configurations listed as optional depending on the market/package).
The PAX S300 supports PCI PTS 4.x with SRED, EMV Level 1 and Level 2, and a wide range of tap-to-pay programs including Mastercard PayPass, Visa payWave, Discover D-PAS, American Express Expresspay, JCB J/Speedy, Interac Flash, and UnionPay qUICS.

Complete Payments in Seconds with PAX S300

Swipe Transactions

Start by entering the sale amount in your POS or payment software. The terminal will automatically prompt you when ready to process the payment.
Once prompted, take the customer’s card and swipe it through the terminal’s magnetic stripe reader. Ensure the stripe is facing the correct direction as indicated on the terminal.
The terminal may ask the customer to verify the transaction, either by entering a PIN (for debit) or signing a receipt (for credit). Follow the on-screen instructions.
Wait for the terminal to process the payment. Once approved, the terminal will display a confirmation and print a receipt if required.

Keyed Transactions

Enter the sale amount in your POS or payment software. The terminal will prompt you to manually key in the card information.
Carefully type the card number, expiration date, and any other required fields shown on the terminal screen.
If the terminal asks for the billing address, you only need to enter the street number. Other details are not required.
The terminal may prompt for CVV (the 3- or 4-digit code) or additional authentication. Enter the information as instructed.
Wait for the terminal to process the payment. Once approved, a confirmation will appear on the screen, and a receipt may print automatically.

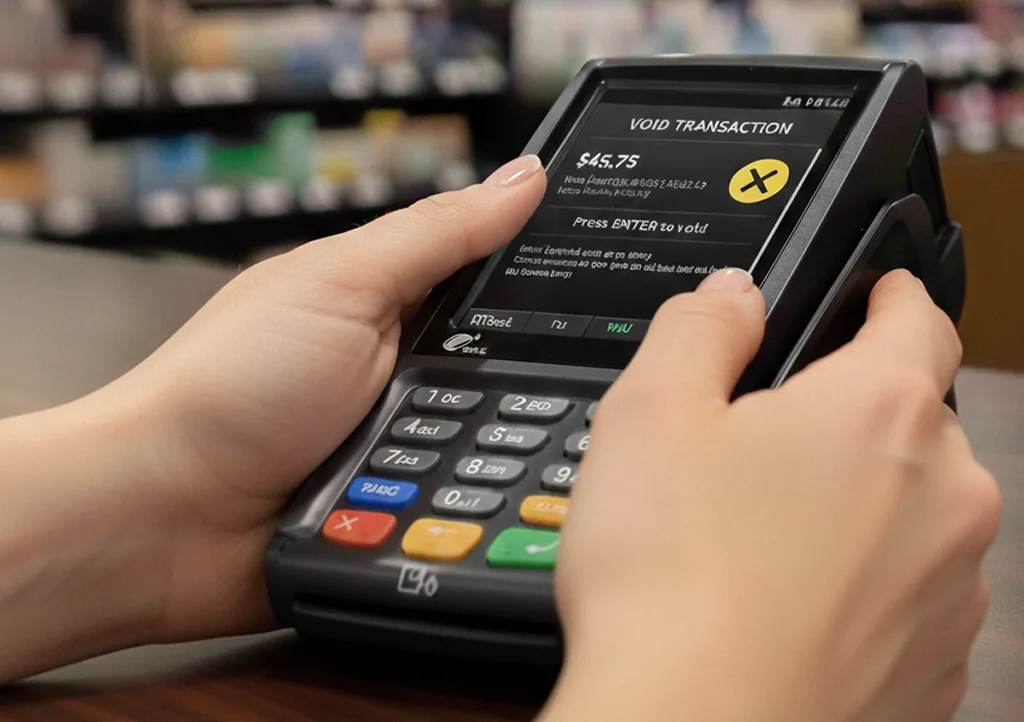

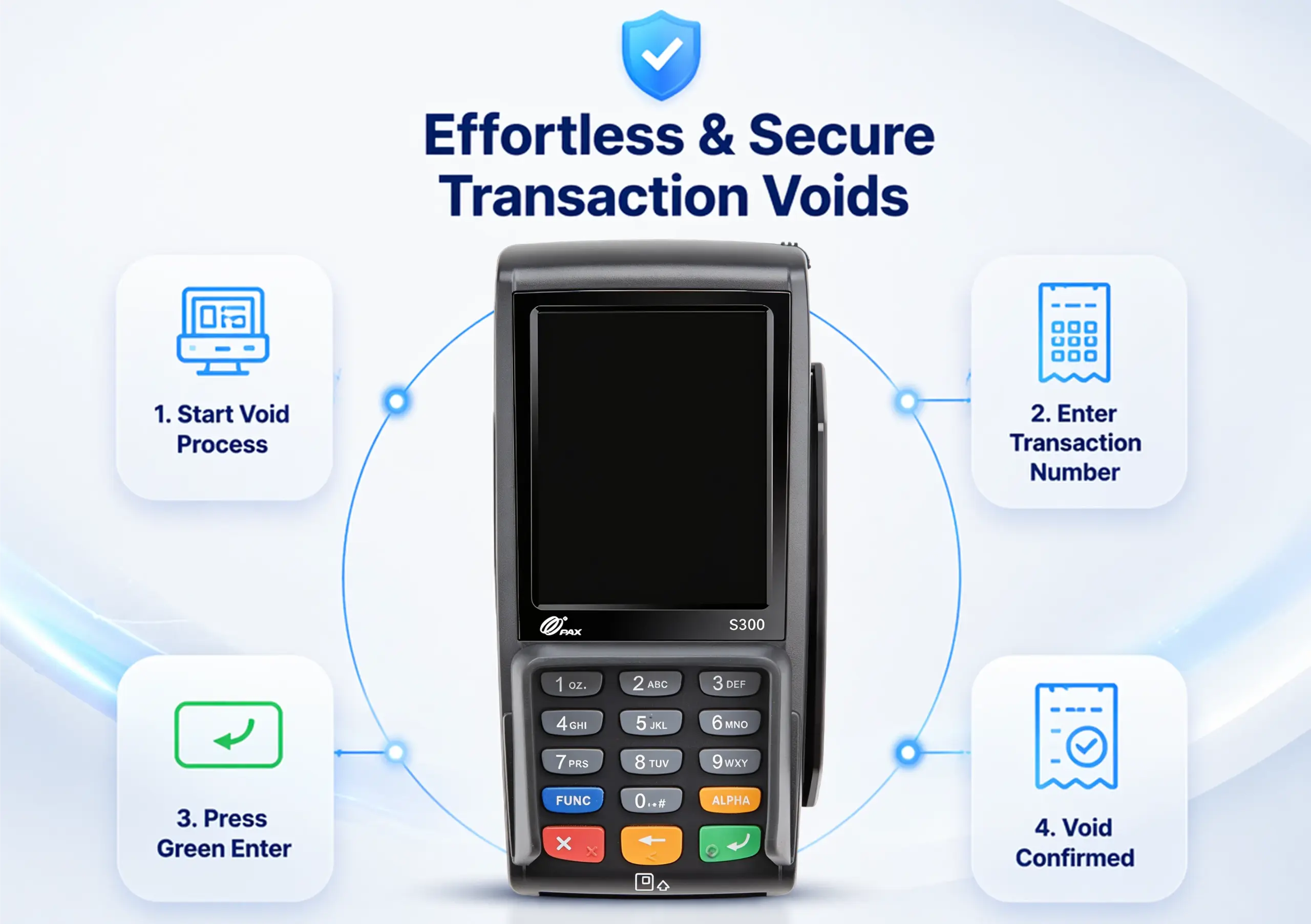

Simple and Secure Void Transactions

Start the void process in your POS or payment software. The terminal will prompt you to enter the transaction number of the payment you want to void.
Type the transaction number exactly as it appears on the receipt or in the software.
Press the green Enter button on the terminal keypad to process the void request.
Wait for the terminal to confirm that the transaction has been successfully voided. The voided transaction may print a receipt or show confirmation on the screen.

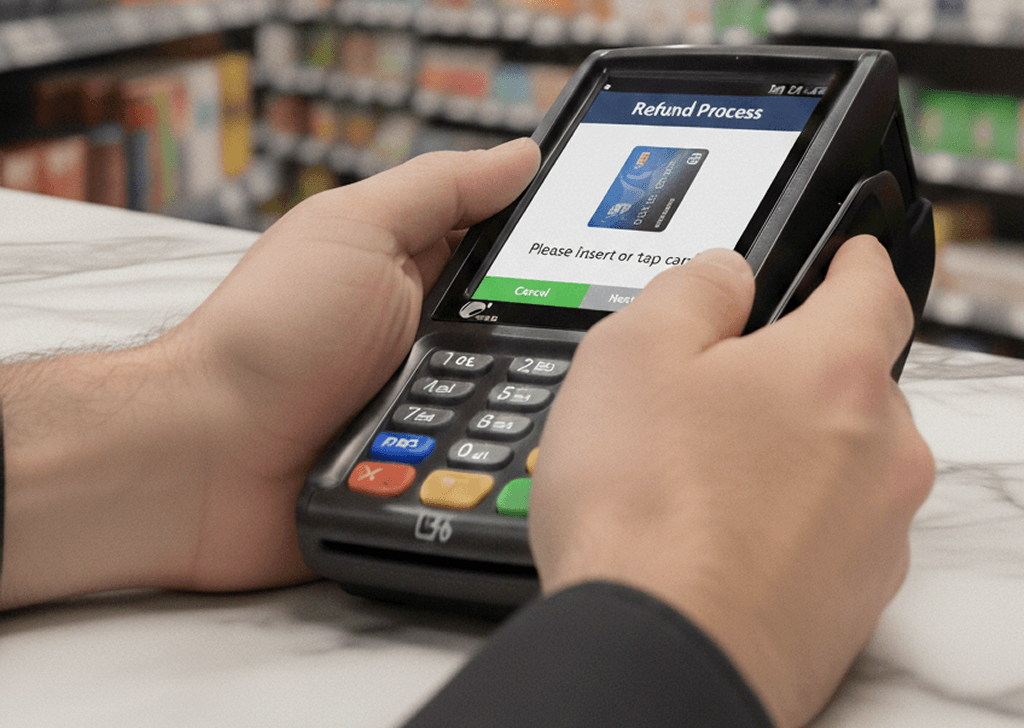

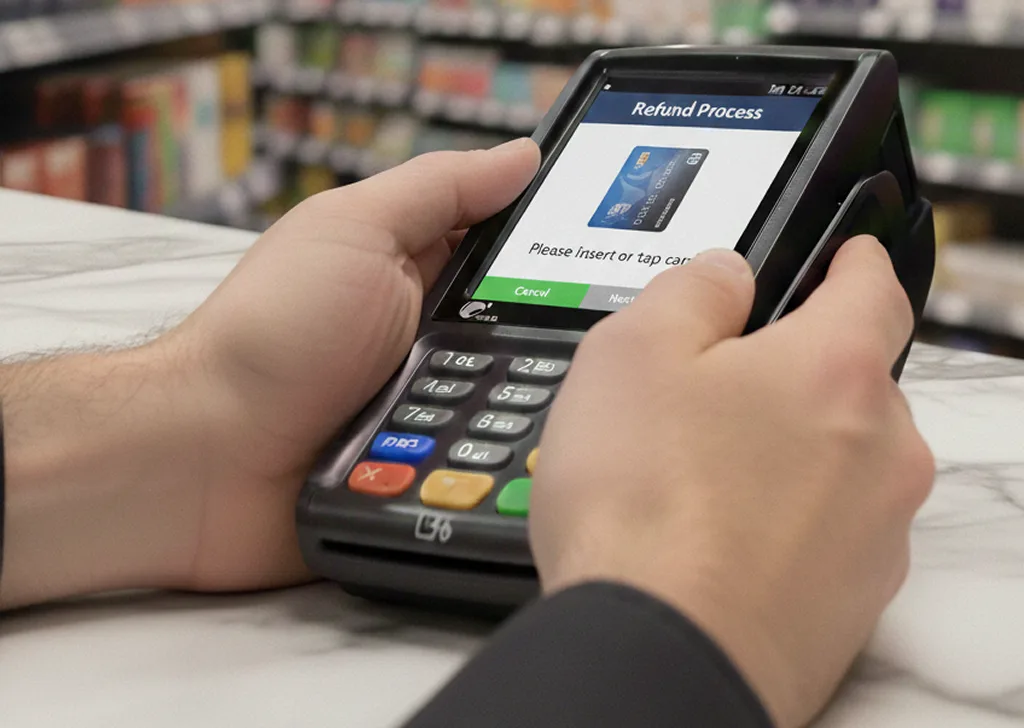

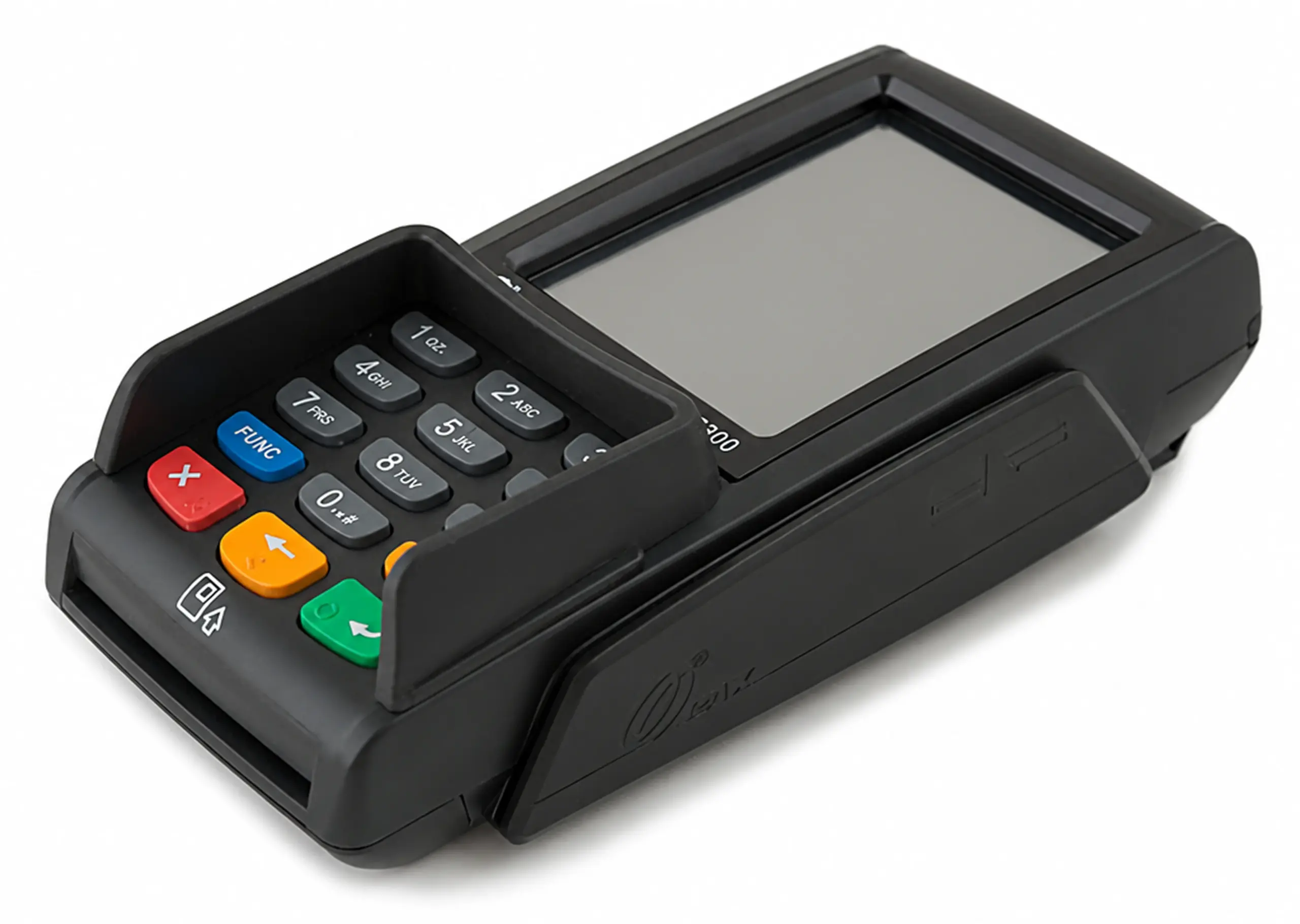

Smooth Refunds in Easy Steps

Start the return process in your POS or payment software. The terminal will prompt you to enter the return amount.
Carefully type the amount to be refunded on the terminal.
Swipe the customer’s card through the terminal or manually key in the card details, depending on the customer’s preference.
Wait for the terminal to process the return. A confirmation message will appear on the screen.

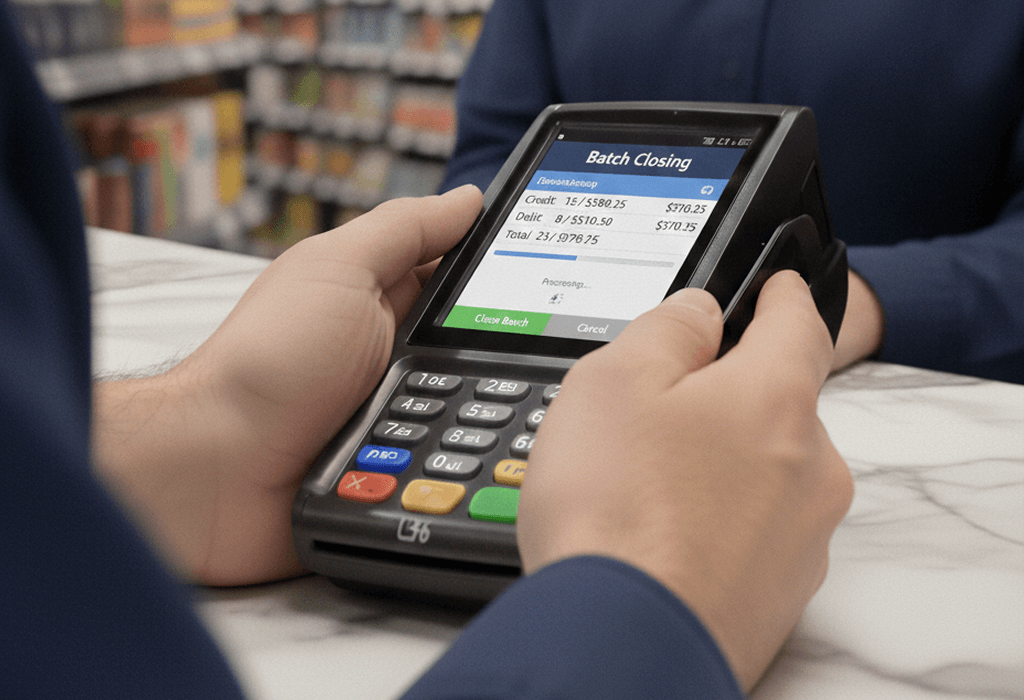

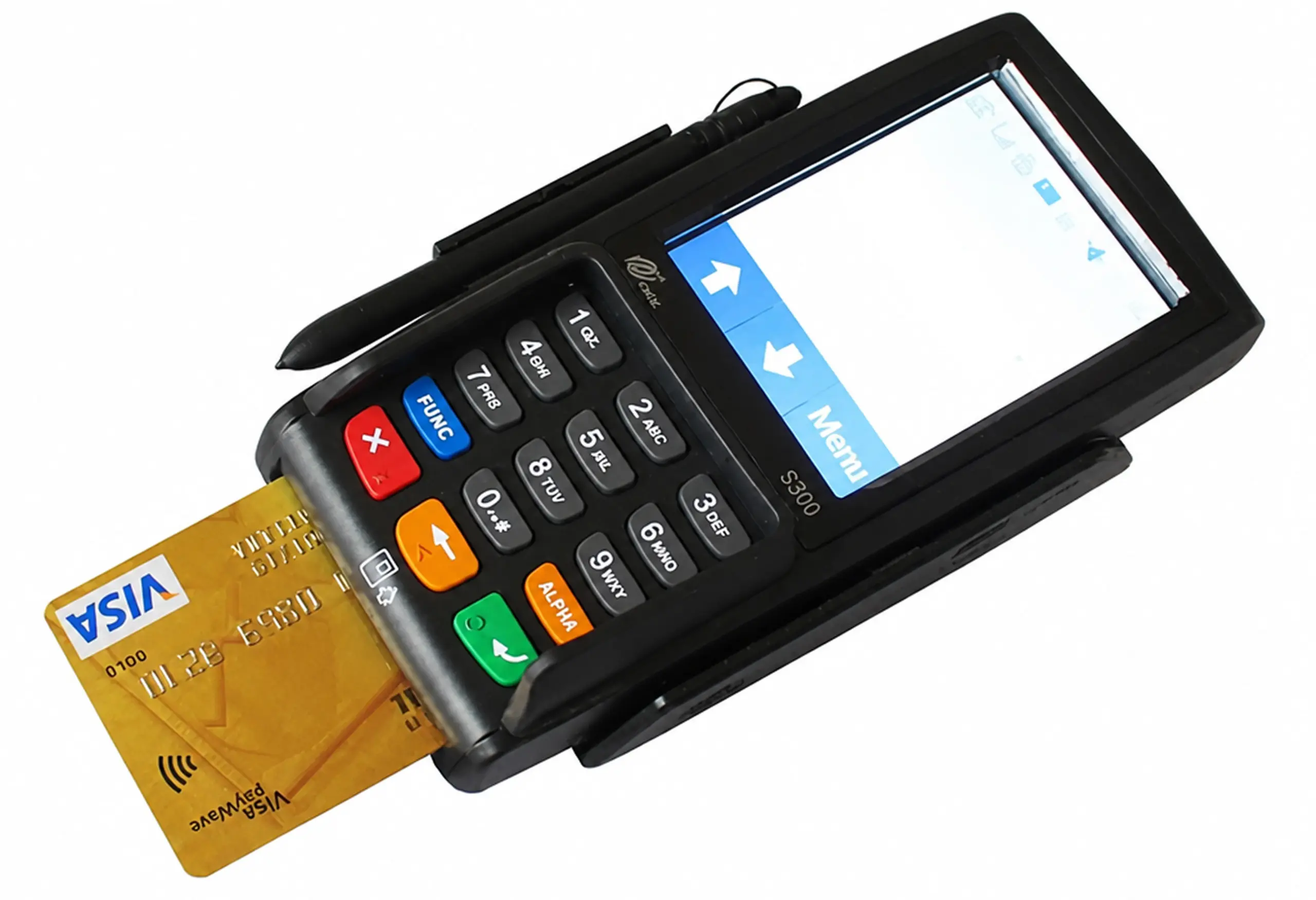

Effortless Batch Closing

Press Menu on the screen, enter 1 for the password unless it has been changed, then press the green Enter button on the keypad.
Select 4 for Host Settings, enter 1 for the password again if unchanged, and press the green Enter button to continue.
Use the down arrow on the screen to scroll through the available options.
Press 1 to select Batch Close and complete the process.

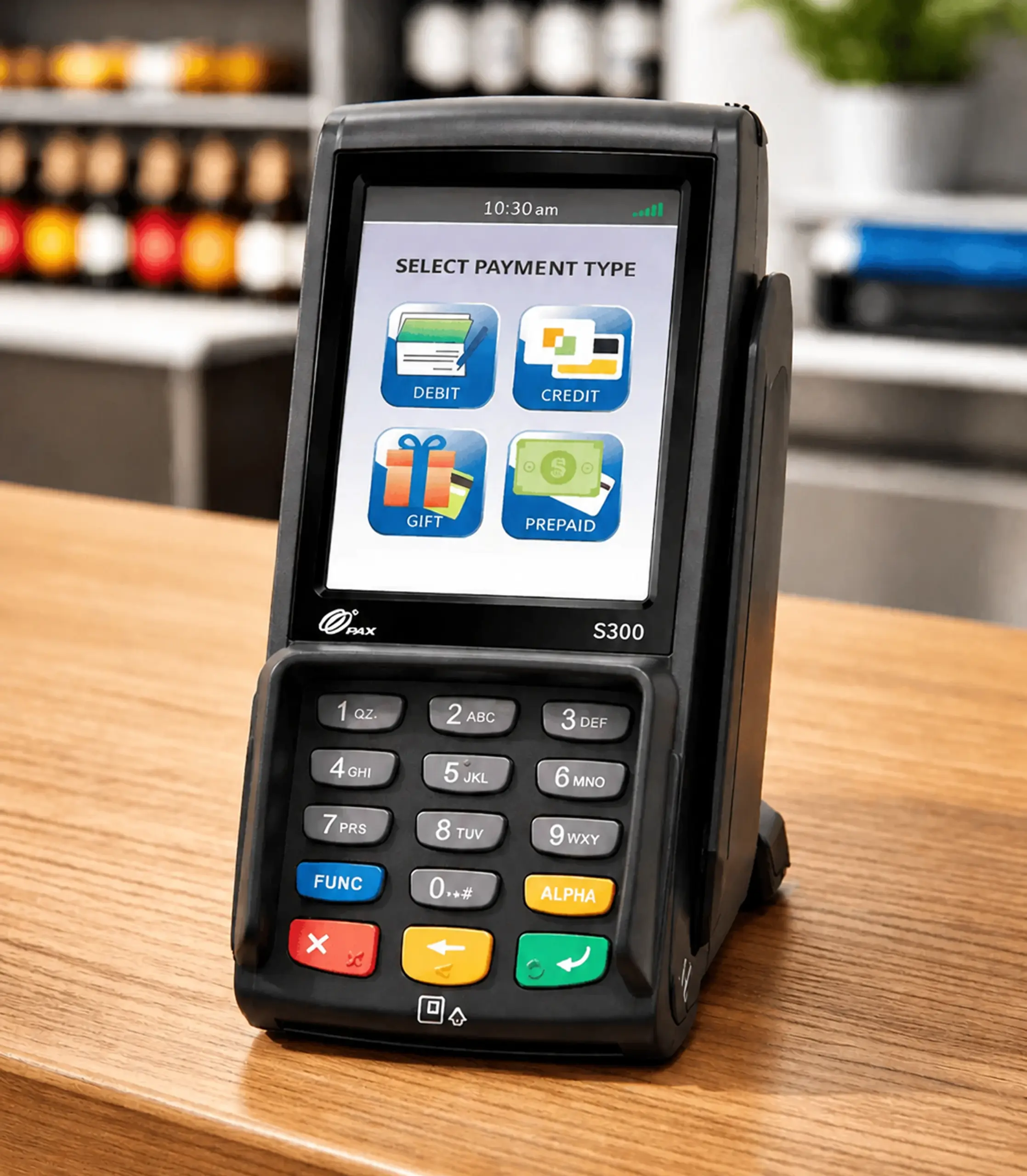

Get Started with PAX S300!

Take the next step toward faster and more secure payments. Fill out the form below to get started today.

"*" indicates required fields

Phone

This field is for validation purposes and should be left unchanged.

Company*

Business Location

Phone

Do you currently take credit cards?

Yes

Estimated Monthly Volume

Frequently Asked Questions

What type of businesses is the PAX S300 best suited for?

The PAX S300 is ideal for retail stores and multilane environments that need fast, secure, and reliable payment processing at the counter.

Is the PAX S300 easy for staff to use?

Yes, the large color touchscreen and simple on-screen prompts make it easy to use, reducing training time for employees.

Does the PAX S300 support contactless and mobile wallets?

Yes, the device supports contactless payments, including mobile wallets that use tap-to-pay technology.

Can the PAX S300 work with my existing POS system?

The terminal is designed to integrate easily with most POS systems and payment software using USB or LAN connectivity.

Is the PAX S300 secure for processing payments?

Yes, the PAX S300 is PCI PTS 4.x and SRED compliant and uses advanced encryption to protect sensitive cardholder data during every transaction.

What types of payments does the PAX S300 support?

The PAX S300 supports contactless payments, EMV chip cards, and magnetic stripe cards, allowing customers to pay using tap, insert, or swipe methods.
