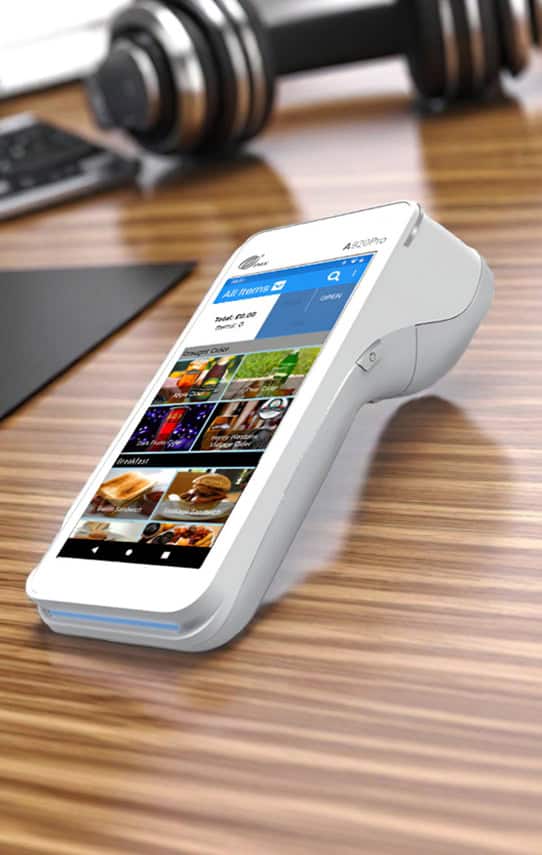

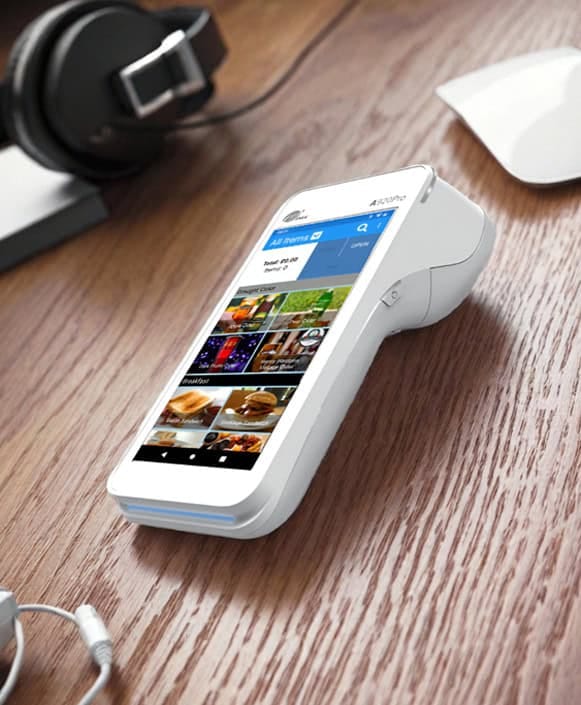

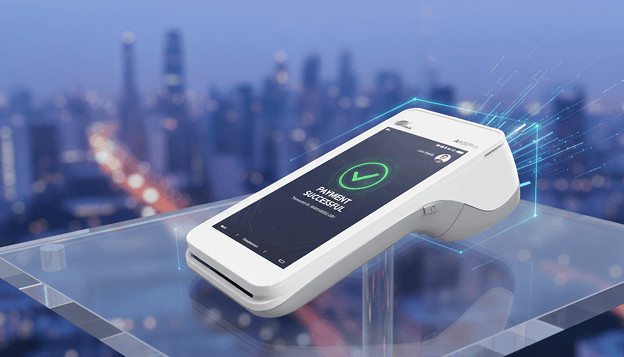

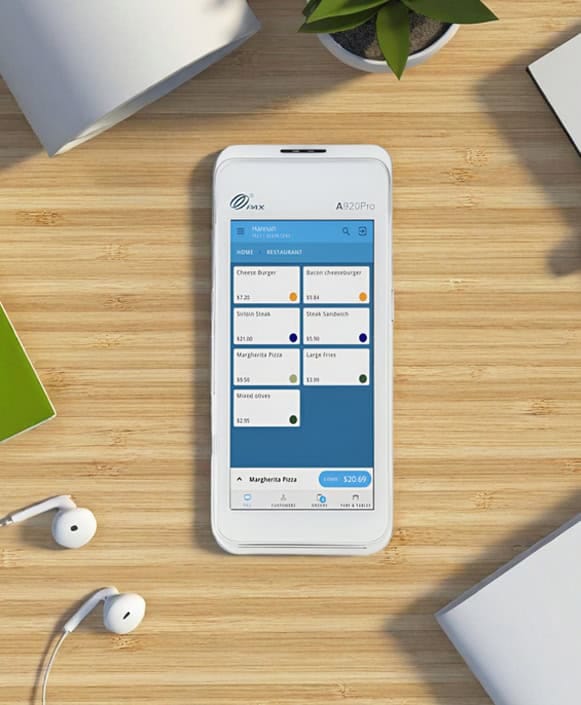

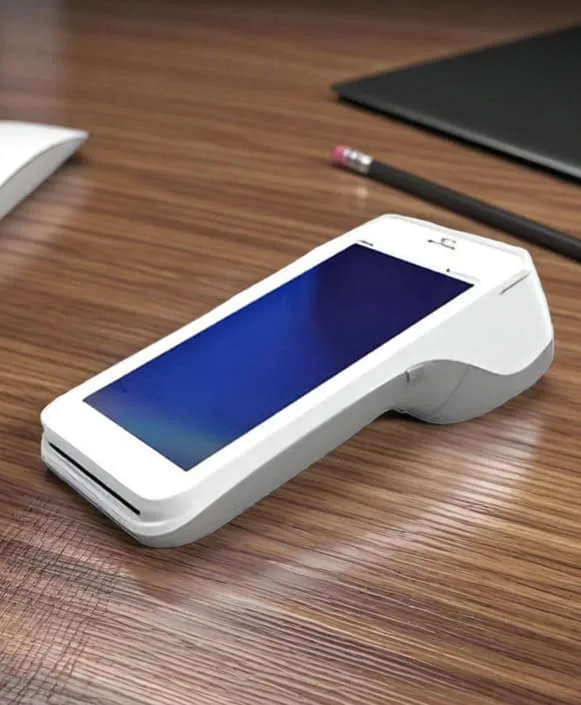

PAX A920 Pro Mobile SmartPOS Terminal

Take payments, scan items, and print receipts, right from your hand. The PAX A920 Pro is a handheld Android SmartPOS built for businesses that need mobility.

Do More at Checkout with One Handheld Device

Do more at checkout with the PAX A920 Pro Mobile SmartPOS Terminal, a powerful all-in-one device designed for modern businesses. Accept tap, chip, and swipe payments, scan 1D and 2D barcodes with the integrated top-side scanner, and print receipts instantly using the built-in thermal printer.

Fully provisioned and supported by Host Merchant Services, the A920 Pro delivers mobility, speed, and secure payment acceptance in a single handheld solution.

Benefits of the PAX A920 Pro

Scan + Pay in One Motion For inventory-heavy workflows such as apparel, specialty retail, quick-service counters, ticketing, and pickup operations, the A920 Pro’s top-side scanner and dedicated quick-scan key help speed up item handling and reduce checkout friction.
Receipt Printing In-Built Many mobile devices go paperless by default. The A920 Pro includes an integrated printer built for rapid output so that you can hand customers a receipt on the spot, useful for delivery, on-site services, and busy retail environments.
Faster Performance for Multi-Step Workflows When your device is running more than one “sale” screen, such as items, modifiers, tips, confirmations, and receipt options, the A920 Pro’s processing and memory options are built for responsive, app-driven checkout.
Flexible Connectivity for Real-World Deployment Use 4G cellular for true mobility, Wi-Fi for in-store speed, and Bluetooth for peripherals. Select configurations also support Wi-Fi 5 GHz and Bluetooth 5.0 for environments where interference and throughput matter.
Countertop-Ready When You Want It Need a stable “home base” at the register between rushes? Optional charging bases are available, including an option that adds wired connections (like Ethernet) for a more fixed checkout station, then lift the device and go mobile again.
Security Designed for In-Person Payments The A920 Pro is built around current payment security requirements, supporting EMV and modern encryption standards.

Payment Types and Checkout Experiences

Depending on your POS application, the A920 Pro can support

Tips, signatures, debit routing, receipts, and settlement behavior are software/configuration dependent. Host Merchant Services will confirm which specific setup your account supports.

PAX A920 Pro Device Capabilities and Specifications

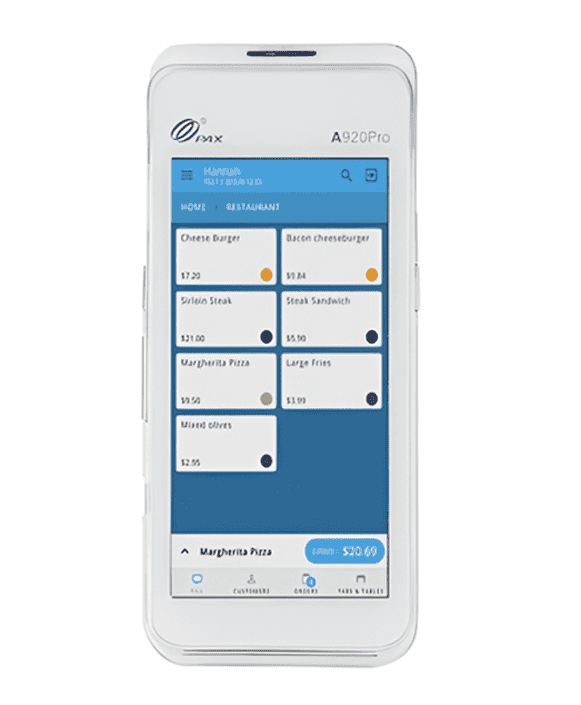

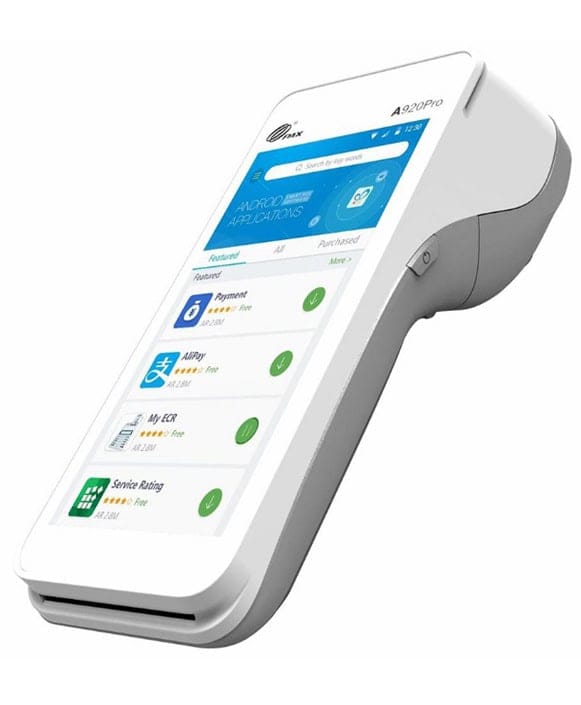

The device runs on PAXBiz® powered by Android 8.1 and features a 5.5-inch IPS multi-point capacitive touchscreen with a WXGA resolution of 720 × 1440.
It is powered by an ARM Cortex-A53 quad-core processor running at 1.4 GHz, paired with a dedicated secure processor.
Standard memory configuration includes 8GB eMMC storage and 1GB DDR RAM, with optional configurations offering 16GB eMMC and 2GB DDR RAM.
Scanning and imaging capabilities include a 5MP rear camera and an optional top-side barcode scanner, with upgraded scanner options available depending on the bundle.
Connectivity configurations support 4G cellular, Wi-Fi at 2.4 GHz, and Bluetooth, with optional configurations adding Wi-Fi 5 GHz and Bluetooth 5.0.
Power is supplied by a 5150mAh rechargeable battery rated at 3.7V.
The integrated thermal printer supports print speeds of up to 40 lines per second and uses paper rolls with an outer diameter of 40 mm.
Location services include GPS, GLONASS, and BEIDOU.
Physical connections include a USB-C port with Type-C OTG support and pogo pin contacts.
The device measures 178.3 × 78 × 54.2 mm and weighs 390 g, including the battery.

Built for Your Business’s Payment Workflows

Retail Line-Busting & Assisted Selling Scan items fast, take payment aisle-side, and print receipts without sending customers back to a counter.
Food & Beverage/Hospitality Handle payments quickly during peak hours and reduce counter congestion (especially for grab-and-go or pay-at-order concepts).
Transportation & Delivery Take payment and provide a printed receipt on-site, with cellular connectivity for off-premise checkout.

Fast, Guided Checkout at the Terminal

From the terminal home screen/main menu, tap Sale.
Enter the sale amount and tap Done/Confirm.

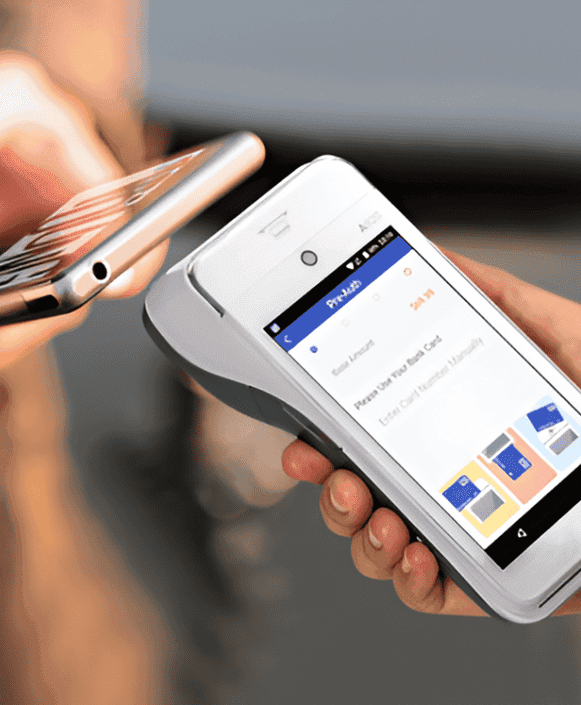

When prompted, have the customer tap (NFC), insert (chip), or swipe their card/device.
If prompted, the customer enters PIN (or completes any on-screen verification such as signature, if required by the transaction).
Wait for Approved (authorization).
Print the receipt (and/or follow your app’s receipt options).

Simple Refund Processing

From the terminal home screen/menu, tap Refund.
Enter the refund amount and tap Done (some apps note you don’t need to type a decimal point).
If your setup requires it, enter the refund password/passcode (refunds may be permission-controlled).
When prompted, ask the cardholder to tap, insert, or swipe the card/device used (or follow your app’s allowed method).
Confirm the terminal shows Approved.
Print or select/send receipts based on your receipt settings.

Void Same-Day Payments Before Settlement

From the terminal home screen/menu, tap Void.
Select the transaction to cancel from the list/history.
Tap VOID and enter the void password (if prompted).
If prompted, have the customer insert the card and complete PIN/signature steps as required.
Wait for Approved, then print the void receipt.

Getting Started with Host Merchant Services

Choose your deployment style (mobile-only, or mobile + charging base).
Confirm connectivity (Wi-Fi-first vs 4G-first; 5 GHz optional if needed).
HMS provisions your A920 Pro to your payment/POS app and processing setup.
Run a test sale and confirm receipt delivery (print/digital options).
Train staff on the core flow: scan → confirm → tap/insert/swipe → receipt.

Ready to deploy the PAX A920 Pro with Host Merchant Services?

Fill out the form to get pricing and confirm the best configuration for your operation (scanner option, memory tier, Wi-Fi band needs, and charging base). We’ll help you plan rollout, provisioning, and a quick onboarding checklist so you can start taking in-person payments without delays.

"*" indicates required fields

Phone

This field is for validation purposes and should be left unchanged.

Company*

Business Location

Phone

Do you currently take credit cards?

Yes

Estimated Monthly Volume

Frequently Asked Questions

Does the A920 Pro support tap-to-pay and mobile wallets?

It supports NFC contactless payments. Mobile wallet acceptance depends on your HMS processing setup and payment application.

Does it have a built-in barcode scanner?

Yes, A920 Pro includes a top-side barcode scanner, and some bundles offer an upgraded scanner option.

Can it print receipts?

Yes. It has an integrated thermal printer designed for fast receipt output.

Can I use 5 GHz Wi-Fi?

Some configurations include 5 GHz Wi-Fi and Bluetooth 5.0. HMS can confirm the right bundle for your environment.

What Android version does it run?

The PAX A920 Pro runs on Android 8.1.

Is there an optional dock/base?

Yes, charging base options exist, including versions that add wired connectivity for a “counter + mobile” workflow.
