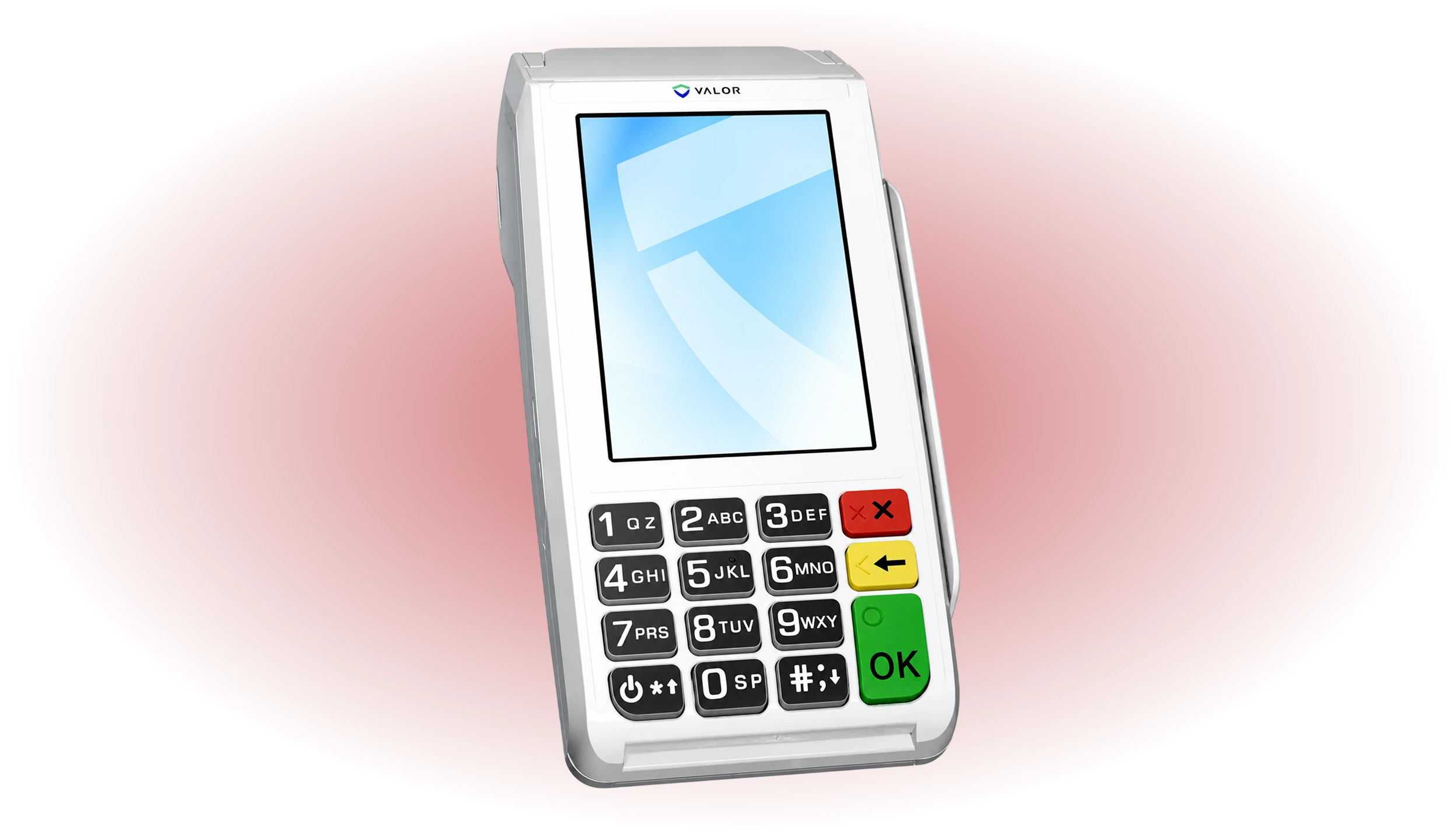

Valor VL110 Handheld Wireless POS Terminal

An elegant, mobile solution packed with advanced features including EMV security, flexible pricing support, and wireless connectivity.
Get a Quote

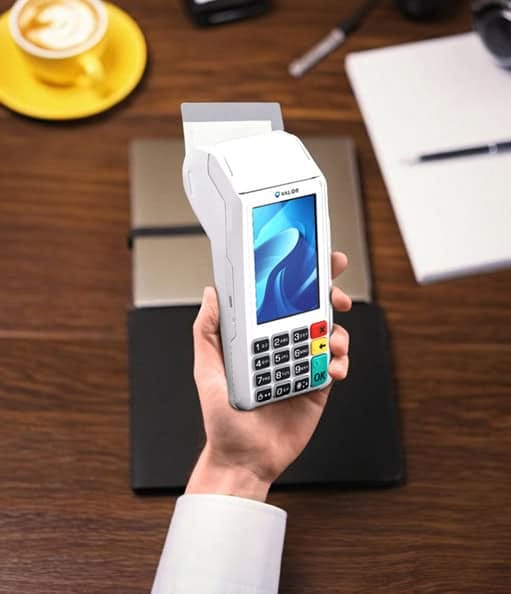

Valor VL110 handheld wireless POS terminal for secure mobile payment processing

Empower Your Business with the VL110 POS Terminal

Meet the VL110 POS — a powerful, portable payment solution built to simplify transactions. Equipped with EMV chip technology, wireless connectivity, and support for flexible pricing models, the VL110 Point of Sale terminal enables secure and efficient payment acceptance.

Whether you’re serving multiple customers or processing payments at the table, this easy-to-use handheld device provides the tools needed to improve checkout speed and operational efficiency.

Get Started

The Power of Portable, Wireless Payments

  • Dual MID Support Supports two merchant IDs, helping merchants organize and manage payment processing across business units or pricing programs.
  • Bill Splitting Allows customers to easily split payments during checkout.
  • GPRS / 4G and Wi-Fi Connectivity Multiple wireless connectivity options help ensure reliable service.
  • Auto-Connection Failback Designed to maintain service continuity if a primary connection becomes unavailable.
  • Full Transaction Information Display Provides clear, detailed transaction visibility for merchants and customers.
  • Large 3.5" Touchscreen Display A color touchscreen designed for ease of navigation and operation.
  • SMS & Email Marketing Support via Engage My Customer™ Enables customer engagement through SMS and email communications, where supported by your processing configuration.
  • Handheld Pay-at-the-Table POS Well suited for table-side and mobile payment acceptance.
  • User-Friendly Interface Touchscreen operation with digital signature capture and receipt delivery via print or SMS.
  • Transparent Transaction Display Clear presentation of transaction details for both merchant and cardholder.

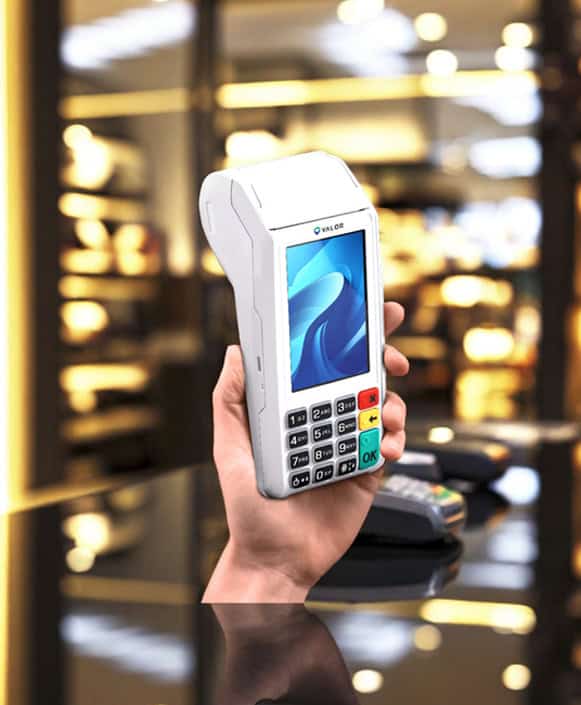

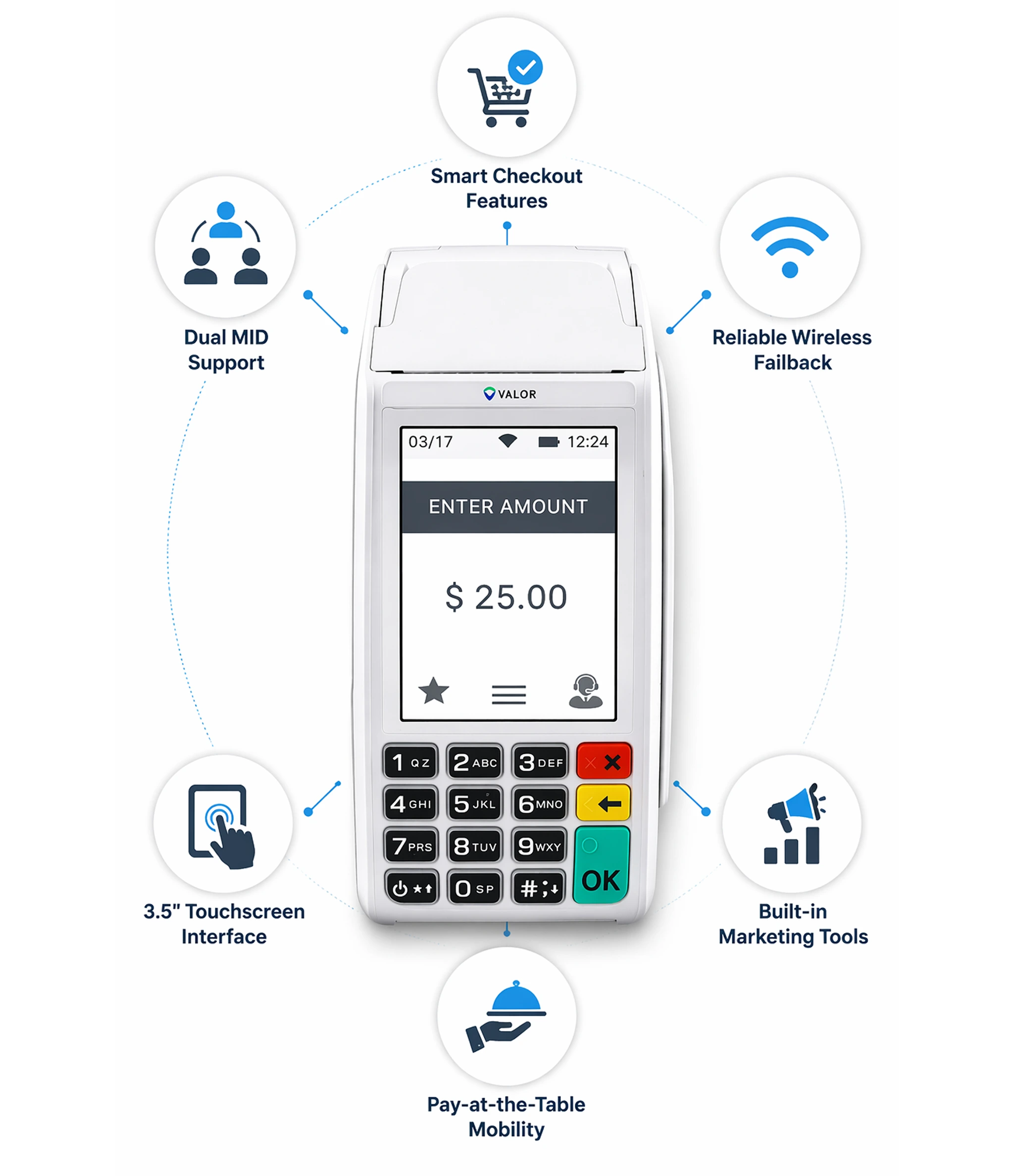

Valor VL110 wireless POS terminal with touchscreen, Wi-Fi connectivity, and mobile payment features

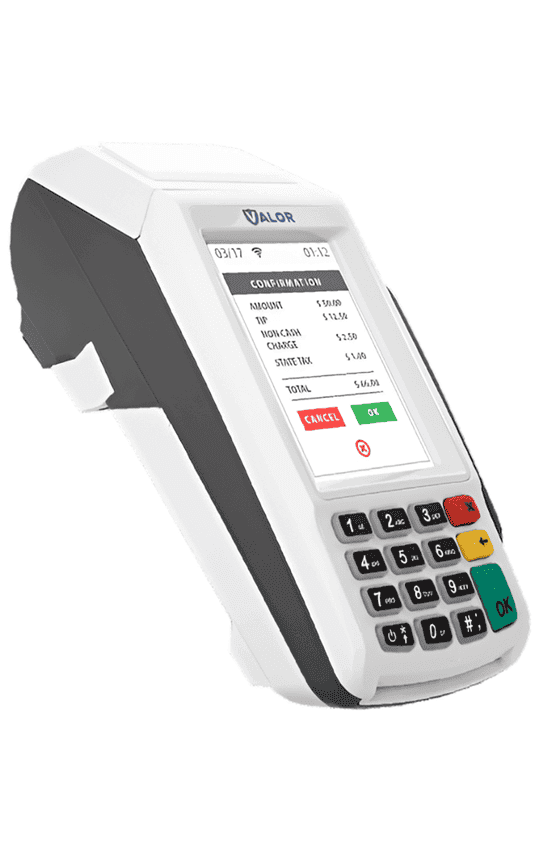

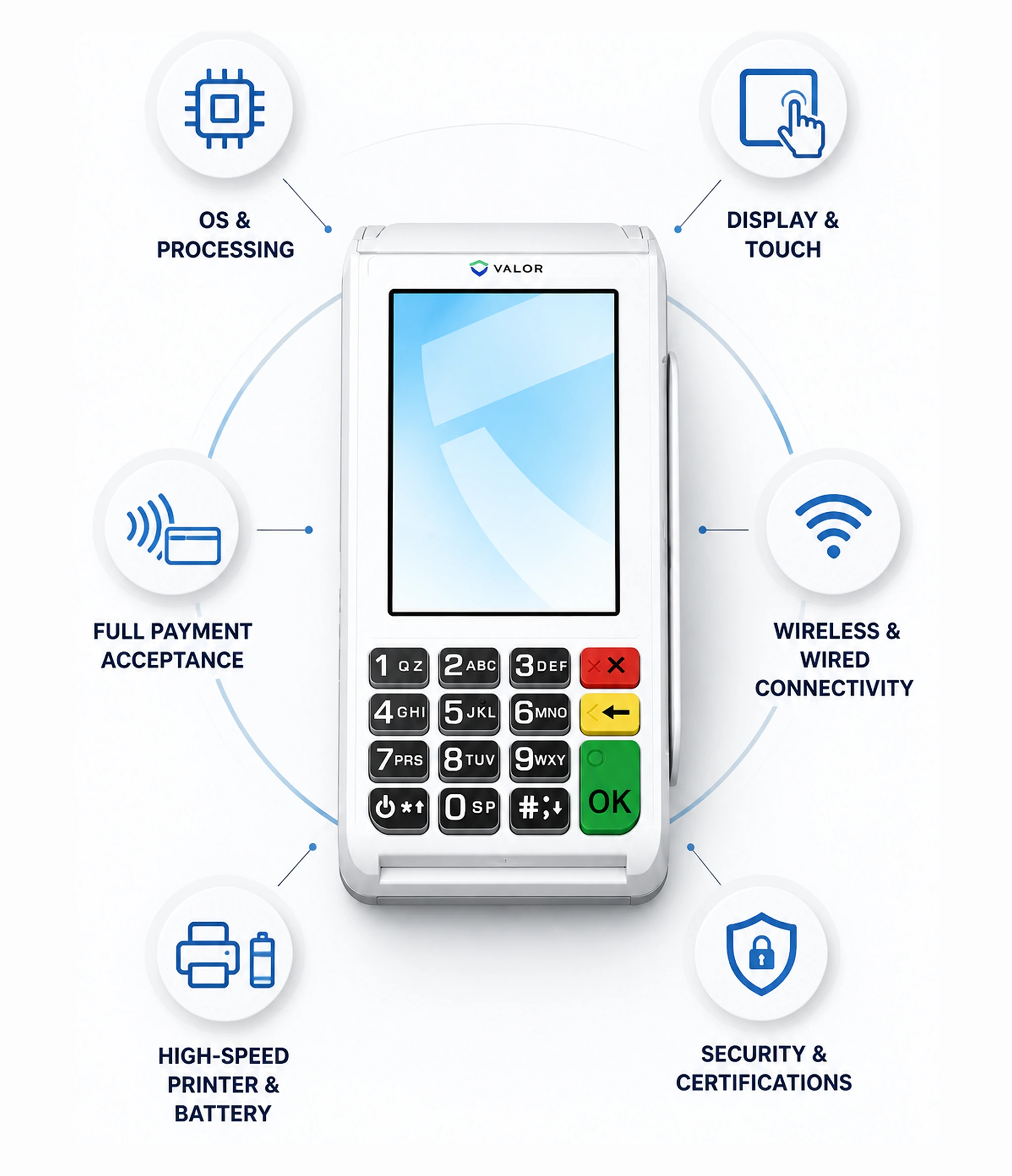

Valor VL110 POS terminal showing touchscreen, payment acceptance, connectivity, printer, battery, and security features

Technical Specifications

  • The device is powered by a 32-bit secure microprocessor running a Linux-based operating system, with 262 MB of flash memory and 115 MB of RAM.
  • It features a 3.5-inch color TFT LCD display with a 320 × 480 resolution and a capacitive touchscreen that supports electronic signature capture.
  • The terminal includes a triple-track, bi-directional magnetic stripe reader compliant with ISO 7810/7811/7813 standards, along with a contact card reader supporting ISO 7816 ID-1 cards at 1.8V, 3V, and 5V using T=0 and T=1 protocols.
  • It also supports contactless payments through ISO 14443 Type A/B and ISO 18092 NFC, including MIFARE®, Sony FeliCa®, operating at 13.56 MHz.
  • Connectivity options include 2.4 GHz Wi-Fi, GPRS with dual SIM support, RS232 serial, and USB device ports, with an audio buzzer used for alerts.
  • The keypad consists of 15 keys, including function keys, and the unit is equipped with a built-in thermal printer using 57 mm × 40 mm paper with print speeds of up to 100 mm per second.
  • Security features include TRNG, DES, TDES, AES, RSA, MK/SK, DUKPT, and TDES DUKPT encryption.
  • The terminal is powered by a 9V/4A adapter or 5V/1A via USB and includes a Li-Polymer battery rated at 3.7V–4.2V with a 2100 mAh capacity.
  • The terminal measures 160 × 78 × 67 mm, with a base measuring 137.6 × 81 × 48.8 mm, and weighs 335 grams.
  • It operates in temperatures ranging from 0°C to 50°C and can be stored between −20°C and 70°C, with supported operating humidity levels from 5% to 90% (non-condensing).
  • The device is certified to PCI PTS 5.x standards and supports EMV L1/L2 along with major contactless payment programs, including payWave®, PayPass®, ExpressPay®, D-PAS, Interac Flash®, J-Speedy, FeliCa®, UnionPay UICS, and PBOC L1/L2.
Schedule a Call

Fast and Easy Credit Payments

  • Enter the transaction amount and press OK.
  • Swipe, insert, or tap the card on the Present Card screen (or manually enter card details if enabled).
  • Add tip and collect signature if prompted.
  • Choose the preferred receipt delivery method.

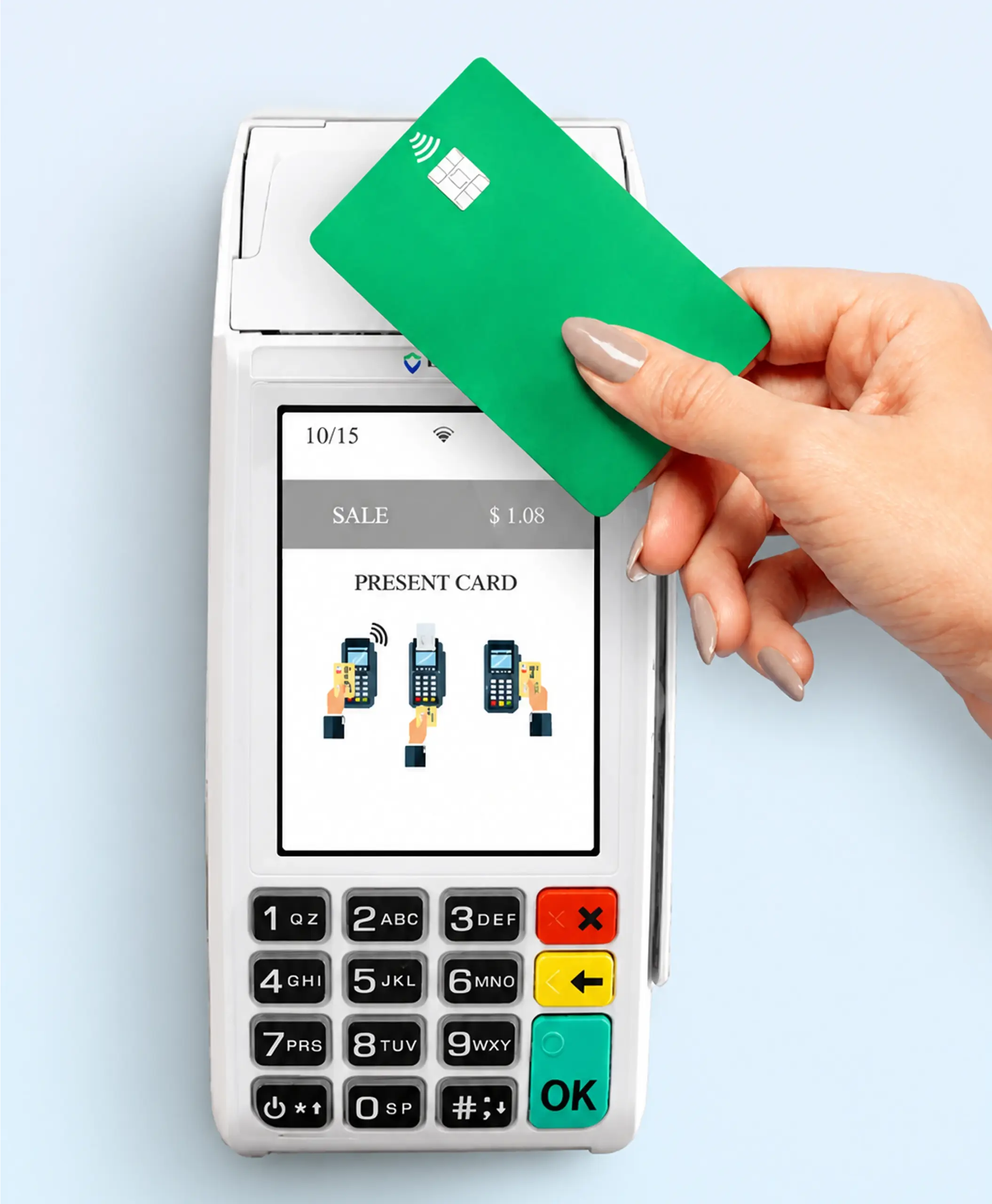

Valor VL110 POS terminal accepting a contactless credit card payment

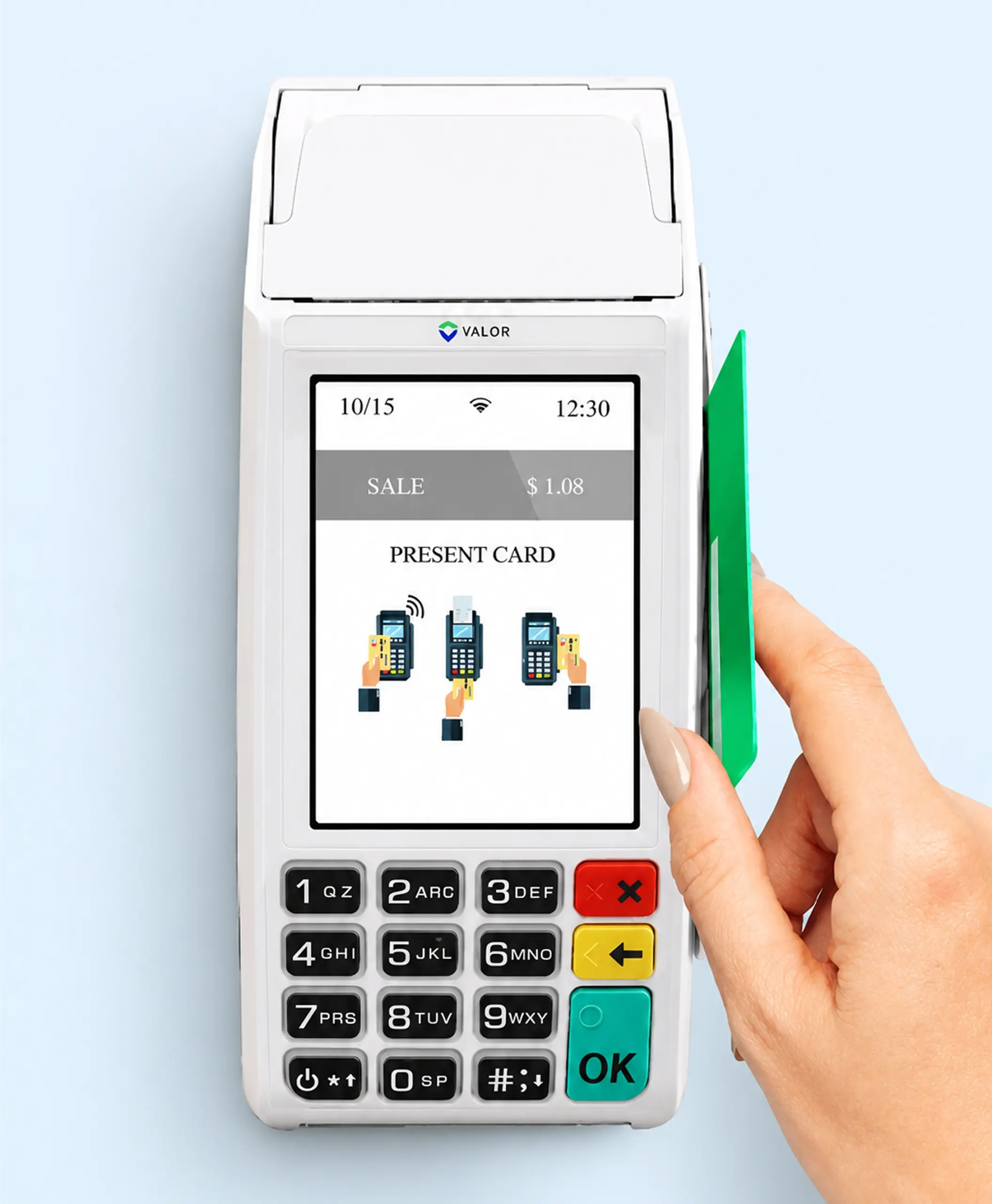

Valor VL110 POS terminal processing a debit card payment securely

Fast Debit Card Processing

  • Select Credit until Debit is displayed.
  • Enter the transaction amount and press OK.
  • Swipe, insert, or tap the card.
  • Enter PIN and add tip if prompted.
  • Choose the preferred receipt delivery method.

Smooth and Secure Transaction Void

  • Select Sale until Void is displayed and press OK.
  • Enter the password.
  • Search by transaction number or the last four digits of the card.
  • Confirm and void the transaction.
  • Select the receipt delivery option.

Process Customer Refunds Hassle-Free

  • Select Sale until Refund is displayed.
  • Enter refund amount and password if prompted.
  • Swipe, insert, or tap the card.
  • Select receipt delivery option.

Secure Pre-Auth Payment Process

  • Select Sale until PreAuth is displayed.
  • Enter the amount and press OK.
  • Present card.
  • Select the receipt delivery option.

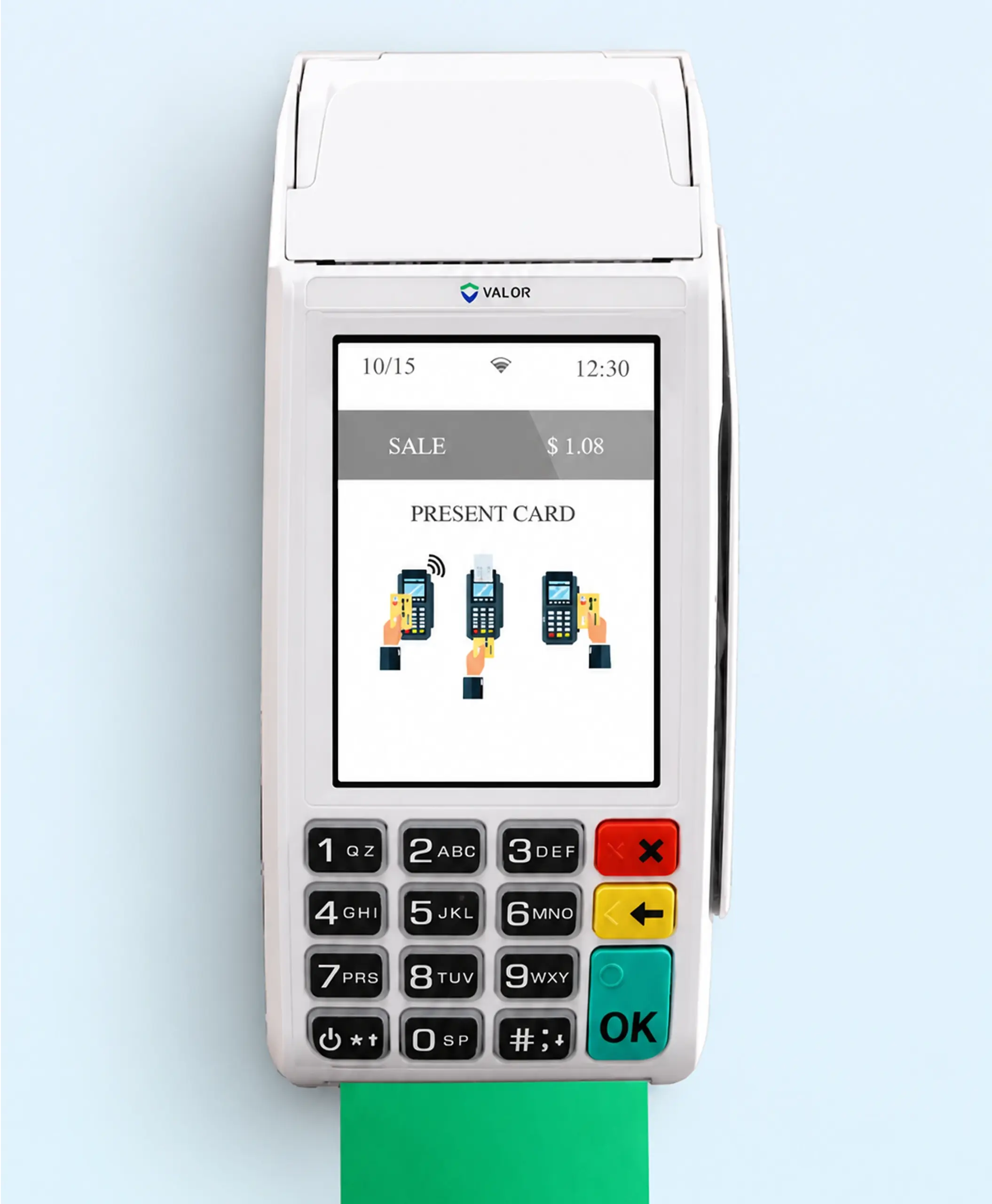

Valor VL110 POS terminal supporting customer refunds and secure pre-authorization payments

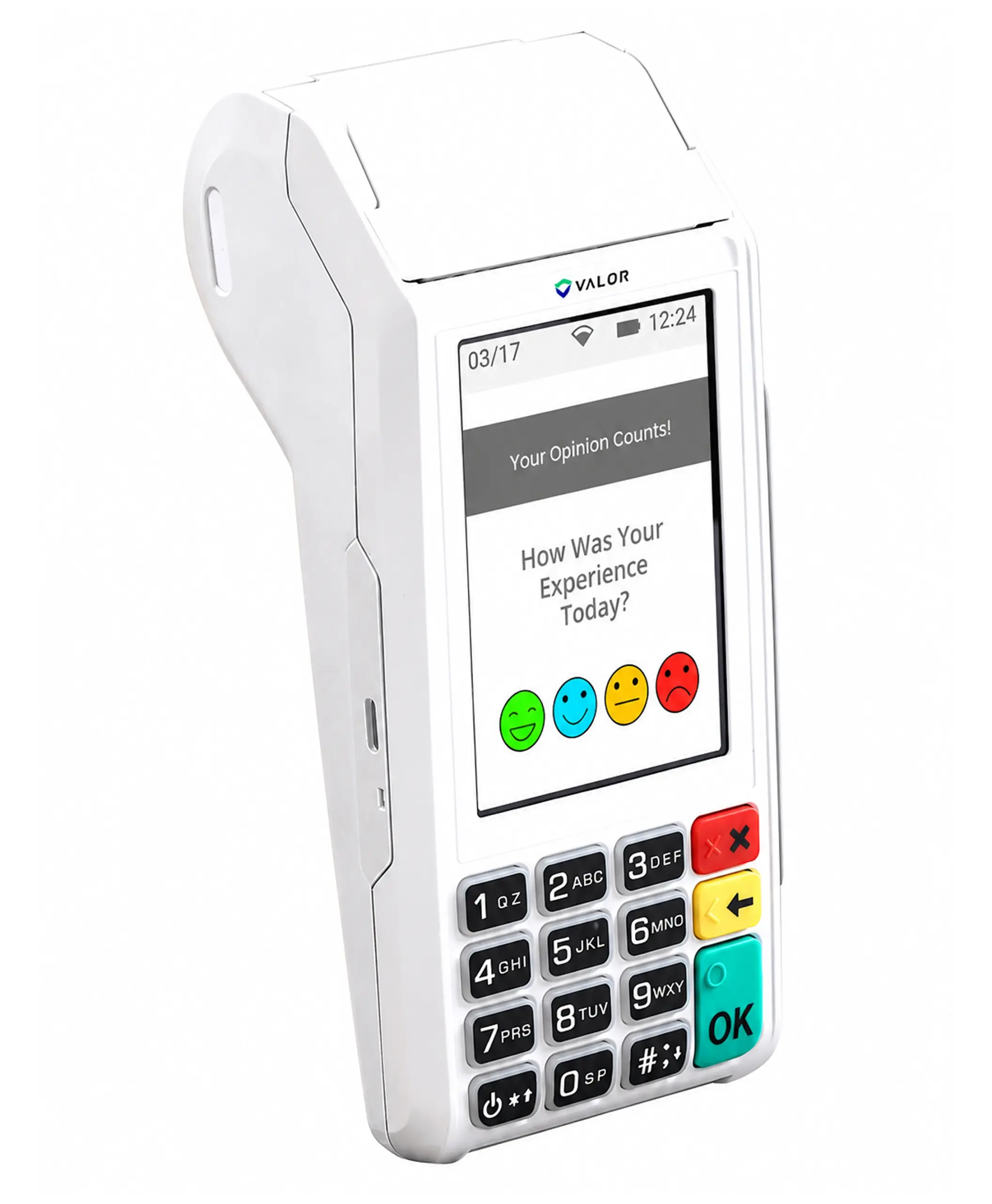

Valor VL110 POS terminal supporting ticket payment completion and pre-sale ticket generation

Quick Ticket Payment Completion Process

  • Select Sale until the Ticket is displayed.
  • Enter the amount and the password.
  • Locate a transaction by number or card digits.
  • Complete the transaction and collect the signature if required.

Pre-Sale Ticket Generation

  • Open Menu.
  • Select Host Utility.
  • Choose Pre-Sale Ticket.
  • Enter the amount and confirm.
  • Ticket prints automatically.
Back To CC Machines

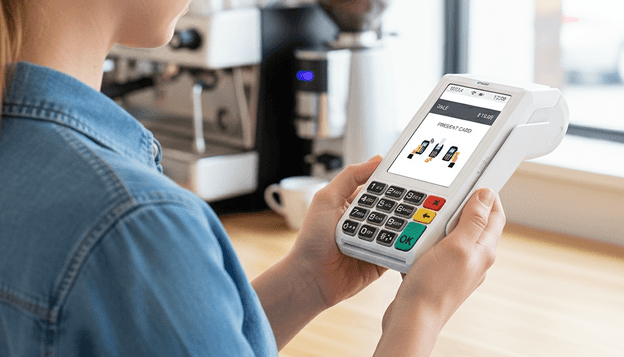

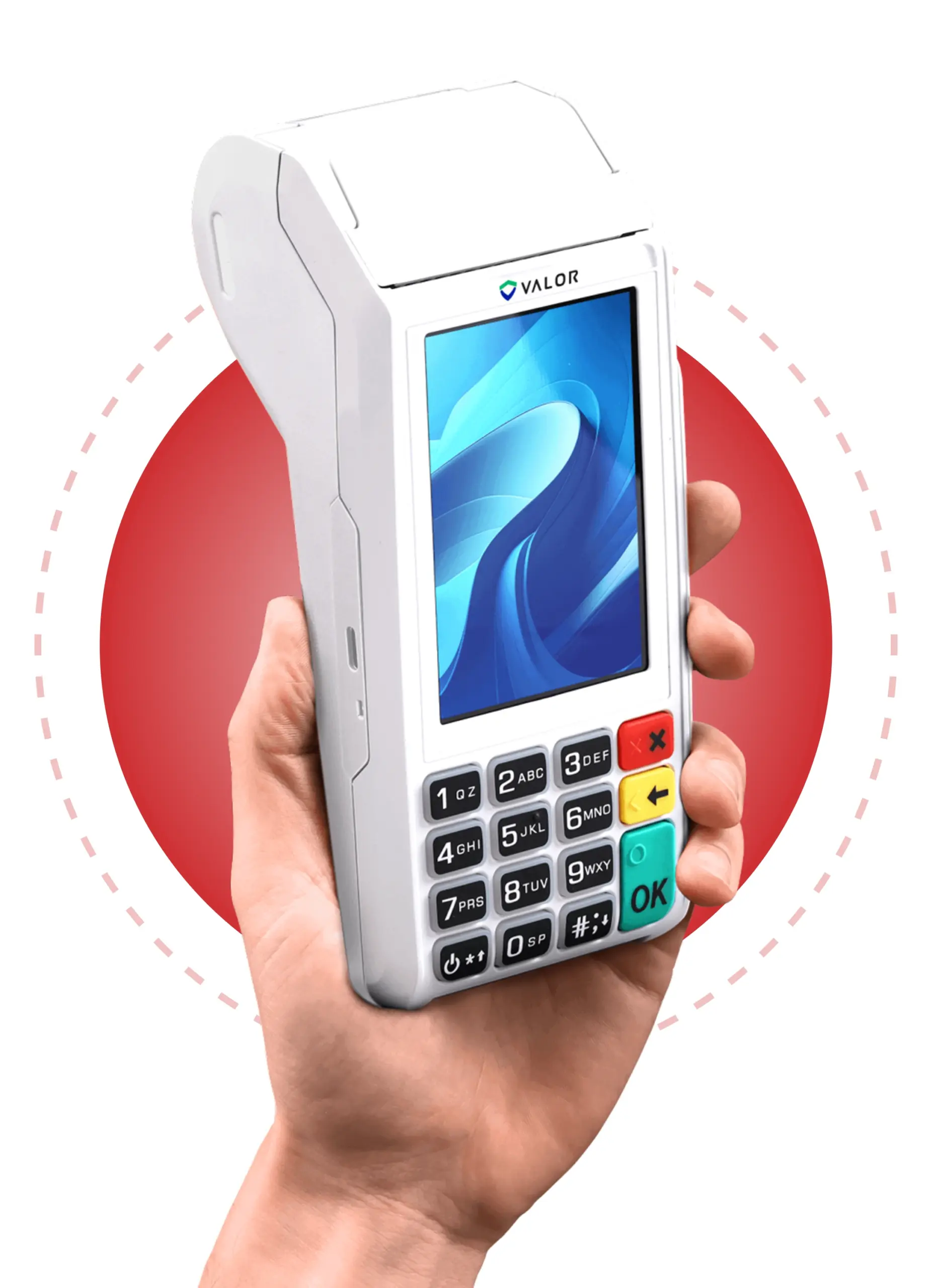

Valor VL110 handheld wireless POS terminal for secure mobile payment processing

Ready to Move Ahead with VL110 POS Terminal?

The VL110 POS is here to streamline payments, increase customer satisfaction, and boost your business efficiency. To begin with, you can fill out this form!

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
*
Do you currently take credit cards?

Frequently Asked Questions

What makes the VL110 POS different?

The VL110 is a compact, portable POS terminal supporting swipe, dip, and tap payments with EMV security and wireless connectivity.

What pricing models does the VL110 support?

The terminal supports configurations such as cash discounting, dual pricing, and surcharging, subject to processor and regulatory approval.

Does the VL110 support digital signatures?

Yes. The VL110 supports electronic signature capture and multiple receipt delivery options.

Does the VL110 support customer engagement tools?

The VL110 can integrate with Engage My Customer™ for SMS and email communications, depending on setup.

Is the VL110 suitable for small businesses?

Yes. Its compact size and portability make it suitable for small businesses, mobile merchants, and service-based environments.

What is the battery capacity?

The VL110 includes a 2100mAh Li-Polymer battery designed to support extended daily use.
